SLM-DD air spring

SLM-DD air spring Overview -

Structure
SLM standard air spring series, with built-in viscous damping, available in 6 sizes.
SLM-DD air spring Advantage +
SLM-DD air spring Performance +

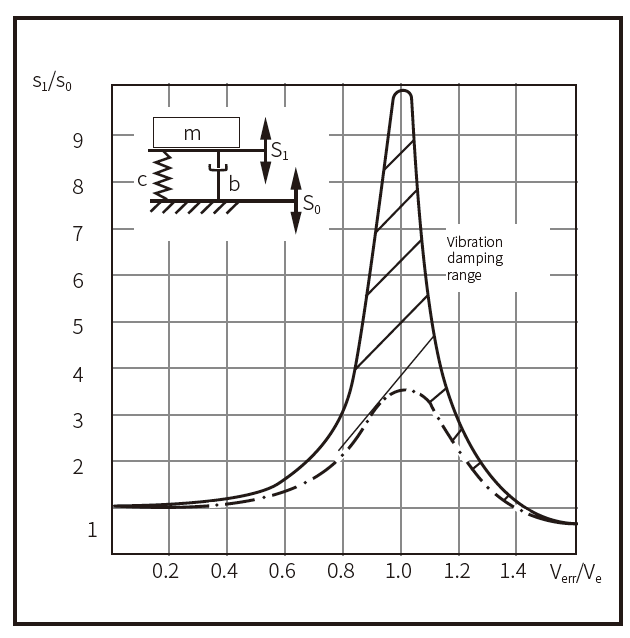

• With vertical source isolation, resonances can be reduced by up to 70%.

• Can be used in the resonance region

• Load range 3.0 – 100 kN

• Natural frequency (static) 4 – 7 Hz

• Low-frequency active or passive damping

• The vertical and horizontal stiffness is about 1:1

• Vibration isolation

• Impact absorption

• Structural soundproofing

• No anchoring is required

• It can be operated without inflation

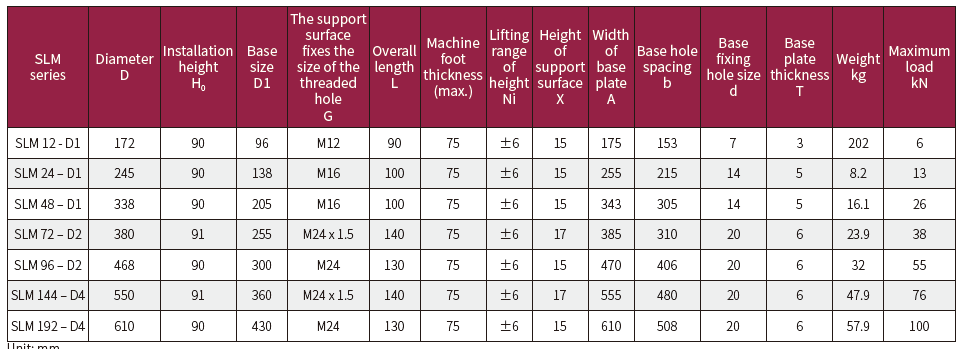

SLM-DD air spring Specifications +
