Rubber vibration isolator - low deformation and low load
-
Rubber vibration isolator - low deformation and low load Overview -
The main role of these mounts is to isolate vibration. A snubber system limits the movement of thesuspended mass (10 mm), however the loads developed in this case, are high.A wide load range from 0,5 to 32 daN depending upon the application.In case of shock protection, the structural resistance of the mount can accept acceleration of up to150 g. These mounts are mainly suited for vibration, hence the loads generated in case of shock arevery high.Fixation on the inside or on the outside. -
Rubber vibration isolator - low deformation and low load Advantage +
-
Rubber vibration isolator - low deformation and low load Performance +
-

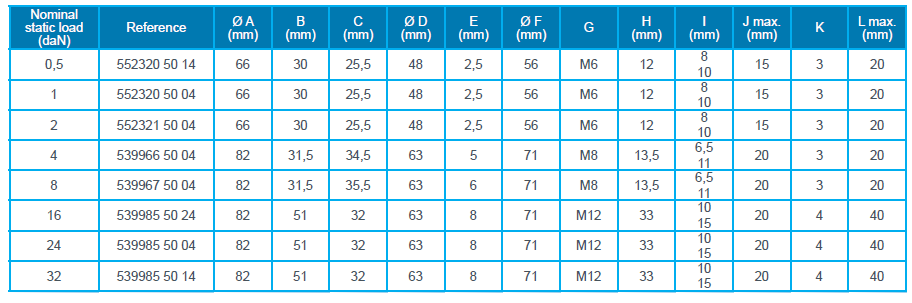

Rubber vibration isolator - low deformation and low load Specifications +
