RELOMER SRG08 vibration isolation material

RELOMER SRG08 vibration isolation material Overview -
RELOMER SRG08 vibration isolation material Advantage +
RELOMER SRG08 vibration isolation material Performance +

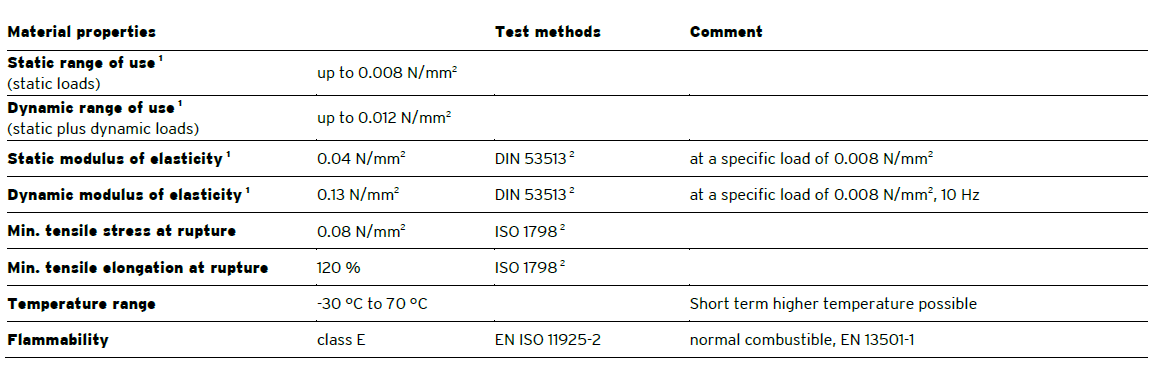

1 Values apply to shape factor 3
2 Measurement/evaluation in accordance with the relevant standard

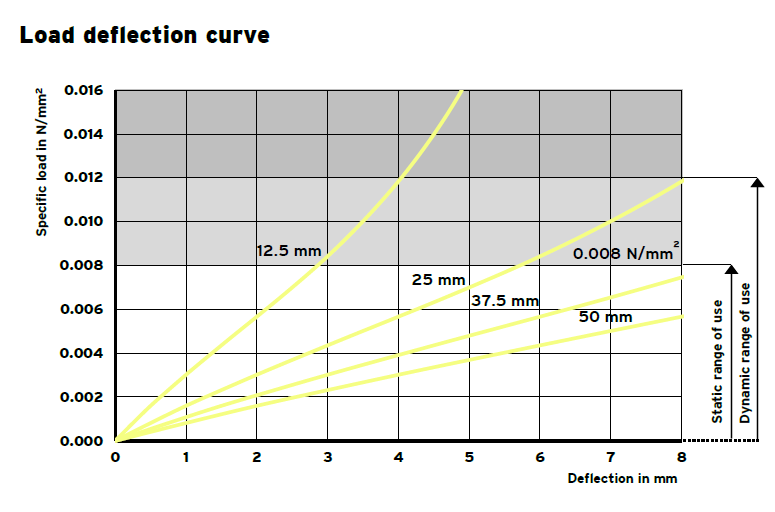

Quasi-static load deflection curve measured with a loading rate of 0.0008 N/mm2/s.
Testing between flat and plane-parallel steel plates, recording of 3rd load, with filtered starting range in accordance with ISO 844, testing at room temperature.

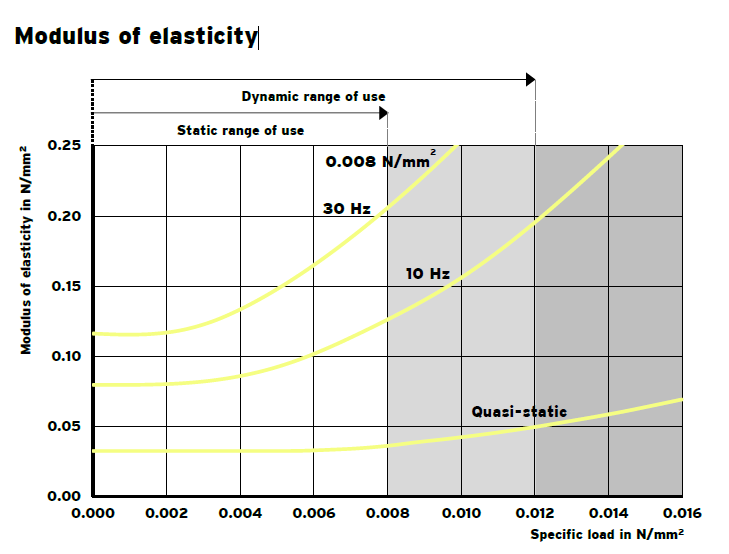

Quasi-static modulus of elasticity as tangential modulus from the load deflection curve. Dynamic modulus of elasticity from sinusoidal excitation with a velocity level of 100 dBv re. 5·10-8 m/s (corresponding to a vibration amplitude of 0.22 mm at 10 Hz and 0.08 mm at 30 Hz).
Measurement in accordance with DIN 53513
Parameter: frequency

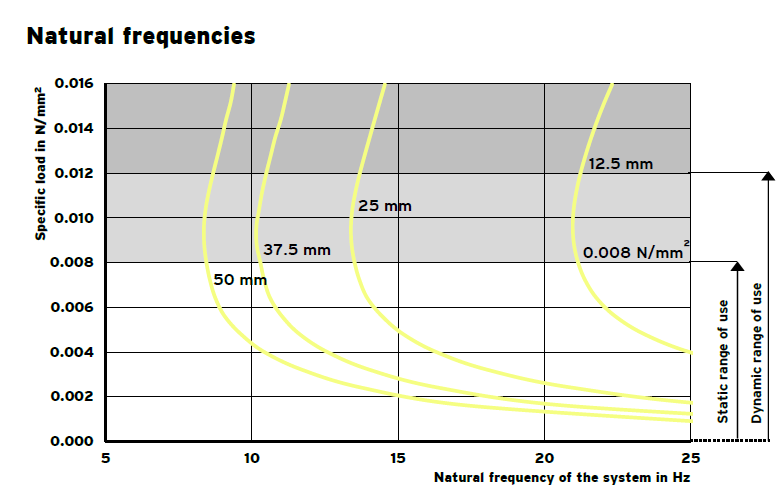

Natural frequencies of a vibratory system with a single degree of freedom, consisting of a mass and an elastic bearing made of Relomer® SRG08 on a rigid surface.

Parameter: Thickness of the Relomer® bearing

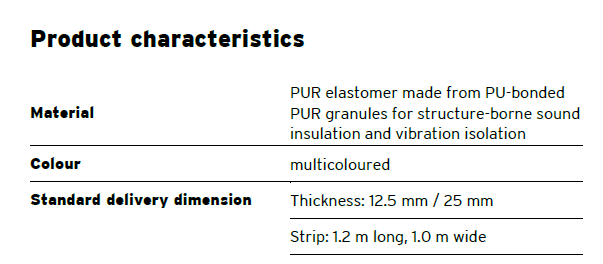

RELOMER SRG08 vibration isolation material Specifications +

1 Values apply to shape factor 3
2 Measurement/evaluation in accordance with the relevant standard
