Rubber vibration isolator- VIB HD 50 with constant deformation and low load

Rubber vibration isolator- VIB HD 50 with constant deformation and low load Overview -

The permitted deflection (40 to 50 mm) of the suspended mass in relation to the mounting base limits

reaction under shock. No efficient vibration protection is offerred during shock.
Rubber vibration isolator- VIB HD 50 with constant deformation and low load Advantage +
Rubber vibration isolator- VIB HD 50 with constant deformation and low load Performance +

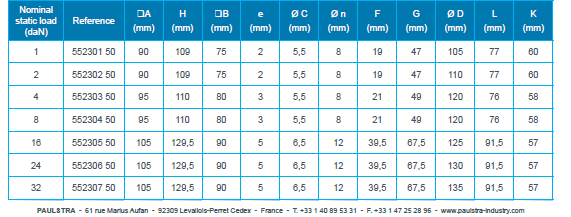

Rubber vibration isolator- VIB HD 50 with constant deformation and low load Specifications +

operating characteristics

➤ Natural frequency (vertical and lateral)

under load of 5 to 8 Hz.

➤ Maximum deflection under load :

- vertical : ± 50 mm*;

- lateral : ± 45 mm*.

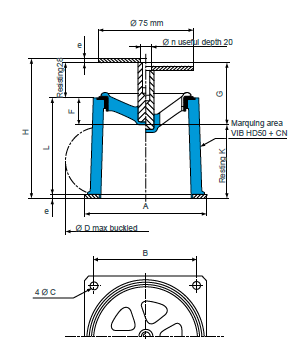

➤ H in rest position.

➤ H - 6 mm under nominal load

(deflection under load = 6 mm).

* maximum forces corresponding to 10 times the load.
