DSD-BL spring group (damping) vibration isolator

DSD-BL spring group (damping) vibration isolator Overview -

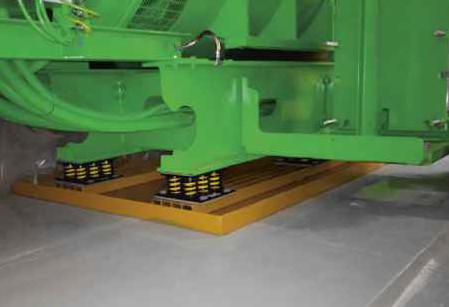

The DSD-BL spring group (damping) shock absorber is a steel spring isolator component that uses a built-in Sylodamp shock absorber. It is suitable for source isolation of heavy-duty ventilators, fans, ventilation devices, air conditioning equipment, compressors, backup generators, piston pumps, turbine supports, textile machines, molding machines, central heating stations, rotary machines, centrifuges, vibrating grates or conveyors.
DSD-BL spring group (damping) vibration isolator Advantage +

➤ replaceable: All types of structures have the same height, diameter, and connecting threads
➤ Open structure - the excitation source is only connected to the base through a spring

➤ Free vibration attenuation spring element in the horizontal plane

➤ A freely visible spring that can be inspected for its condition without the need for disassembly

➤ Visible spacing of spring coils under load conditions

➤ Accessories, pedals, and height adjustment devices are universally applicable to all types

➤ The damping core has permanent elasticity and is not easily broken

➤ Obtain higher corrosion resistance with KTL coating

➤ Designed to comply with DIN EN 10270-1: 2012+DIN EN 13906-1: 2013 standards
DSD-BL spring group (damping) vibration isolator Performance +

➤ Suitable for heavy-duty steel springs (with Sylodamp damping core)

➤ Source isolation and receiver isolation

➤ Vibration isolation suitable for all types of machines

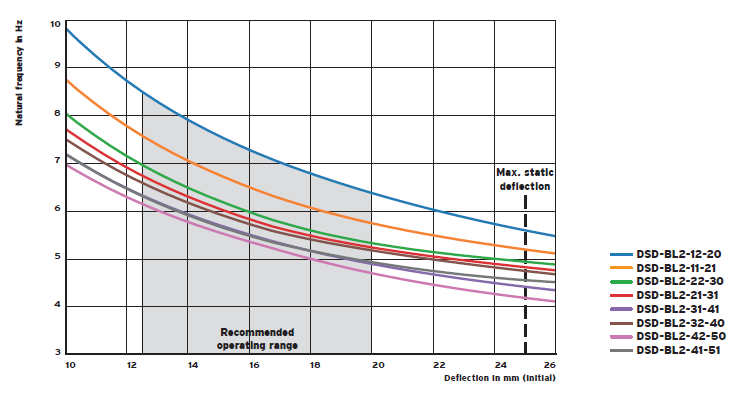

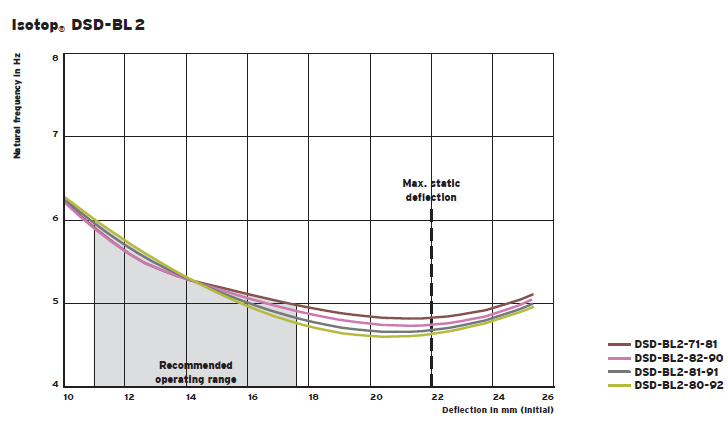

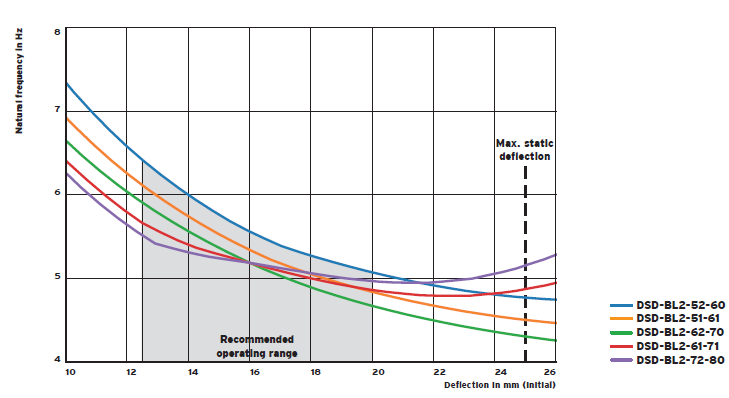

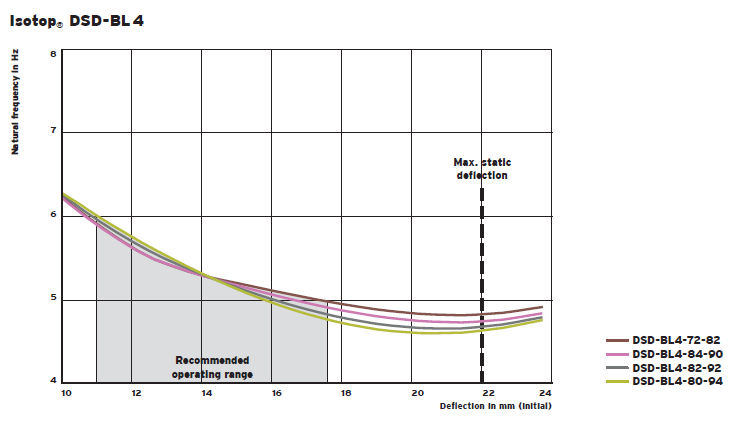

➤ The natural frequency is approximately 4-6 Hz

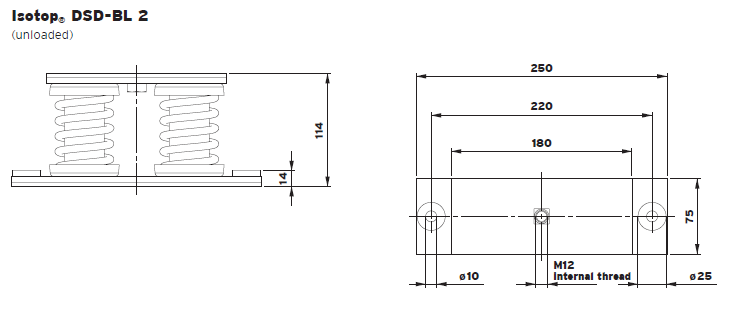

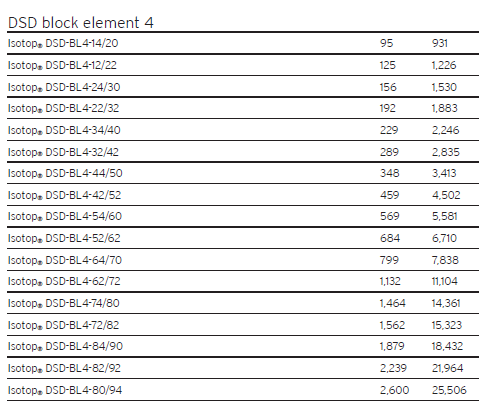

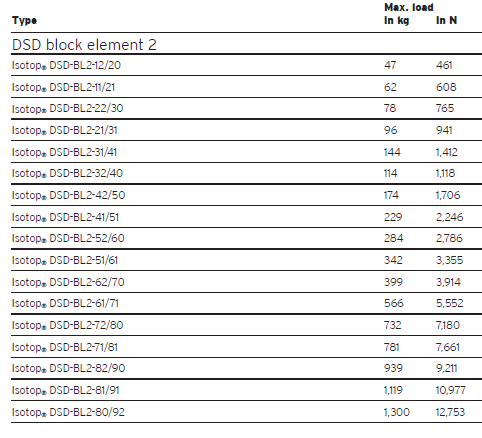

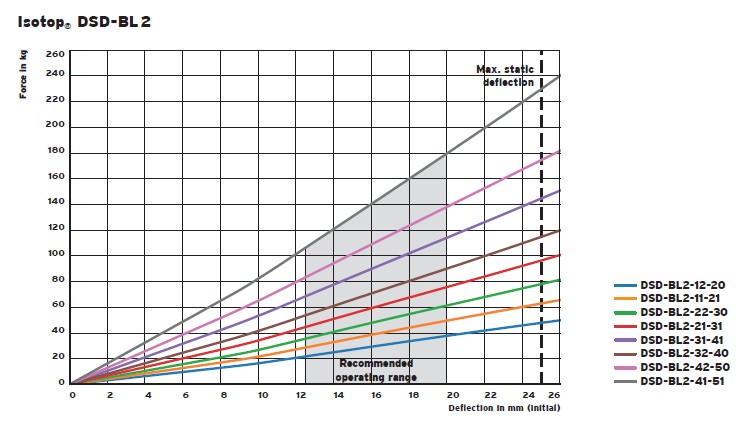

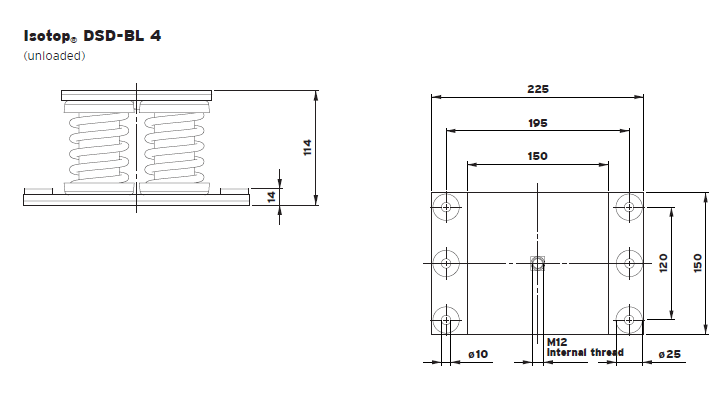

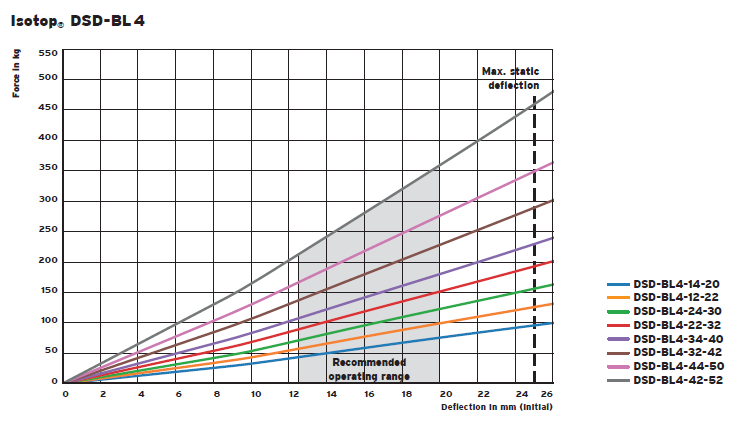

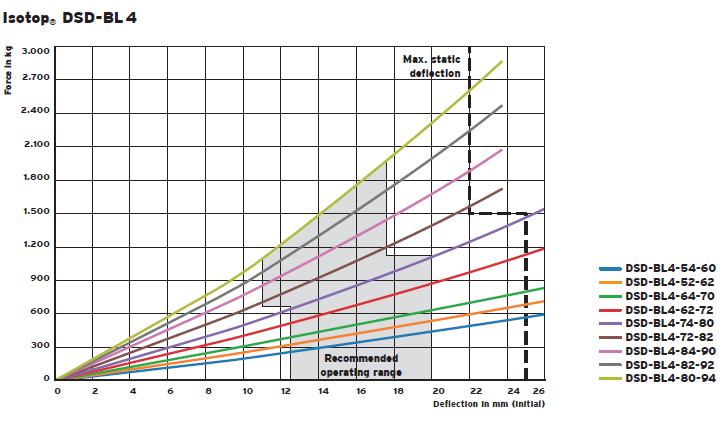

DSD-BL spring group (damping) vibration isolator Specifications +
