DMSN steel spring (damping) vibration isolator

DMSN steel spring (damping) vibration isolator Overview -

DMSN steel spring (damping) shock absorbers are used for low installation height steel spring isolators with integrated high-performance dampers.
DMSN steel spring (damping) vibration isolator Advantage +

➤ Low structural height, low natural frequency
➤ Open spring design

➤ Anti corrosion protection

➤ Modular and compact product design

➤ M8 internal thread is easy to connect
DMSN steel spring (damping) vibration isolator Performance +

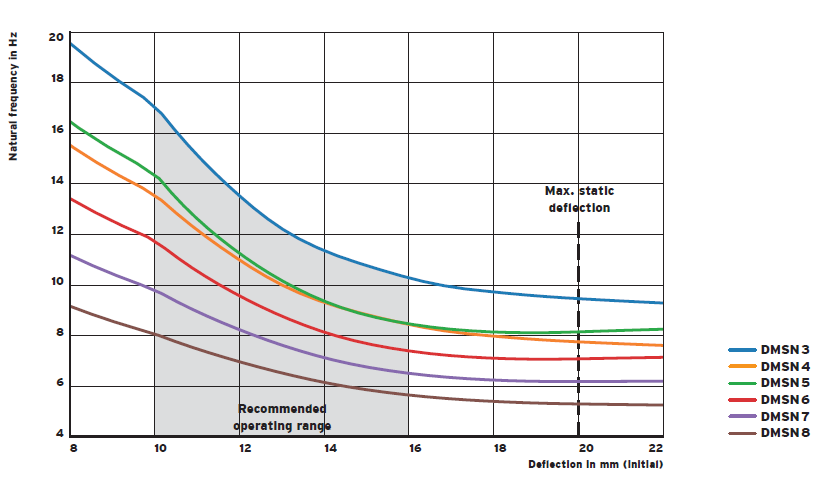

➤ Natural frequency as low as 5.5Hz

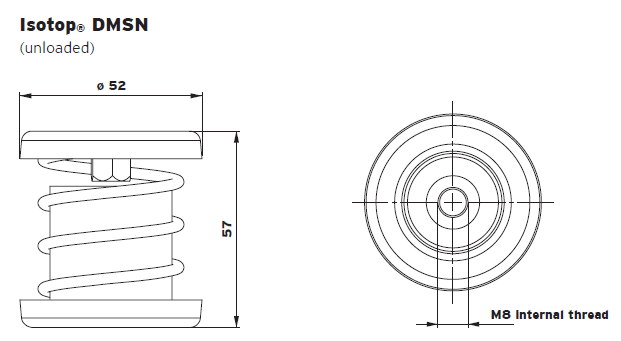

➤ Lower 57mm structural height

➤ Built in Sylodamp - perfect for machines with multiple start stop cycles

➤ Cathodic immersion coating (CDC) can enhance corrosion resistance performance

➤ Special bonding ensures a strong connection between the board and the spring

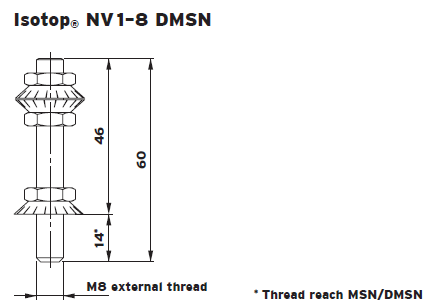

➤ M8 internal thread

➤ Open design enables simple load control
DMSN steel spring (damping) vibration isolator Specifications +
