SE light series vibration isolator assembly

SE light series vibration isolator assembly Overview -

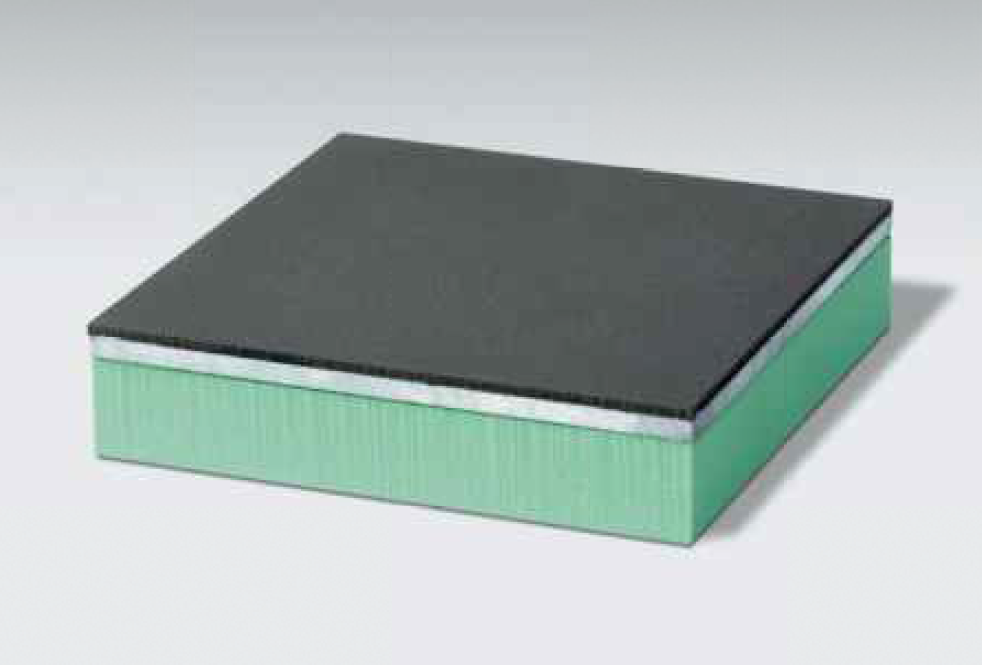

The SE series vibratiob isolator group can be used in all areas where screws are not required to fix elastic bearings. Polyurethane material Sylmer has been proven in building service equipment due to its excellent insulation value and long service life, and is the foundation of this product. Due to the use of integrated pressure distribution plates made of hot-dip galvanized steel, multi-layer vibration isolation pads are suitable for narrower base frame widths. It has an anti slip coating and does not require screws during installation.
SE light series vibration isolator assembly Advantage +

Benefits for you:
➤ No trimming required - suitable for different frame widths

➤ Quick and convenient installation

➤ Friction retention due to anti slip coating

➤ Long service life, maintenance free
SE light series vibration isolator assembly Performance +

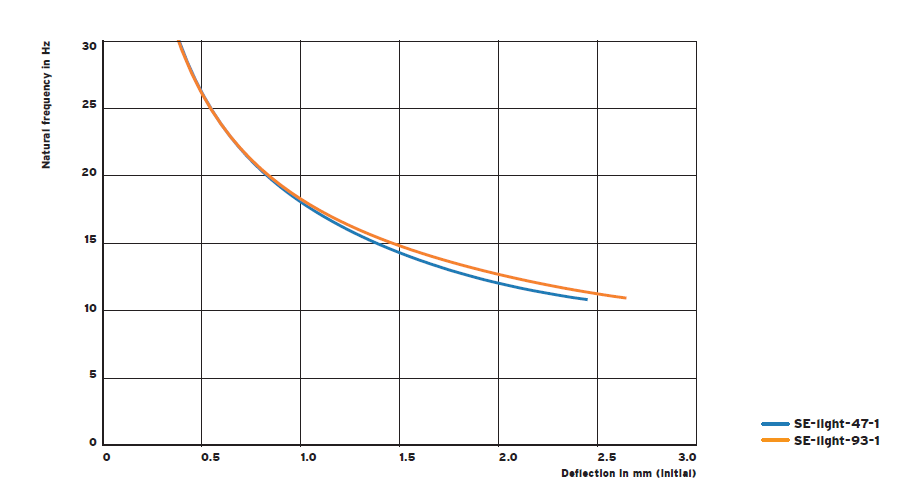

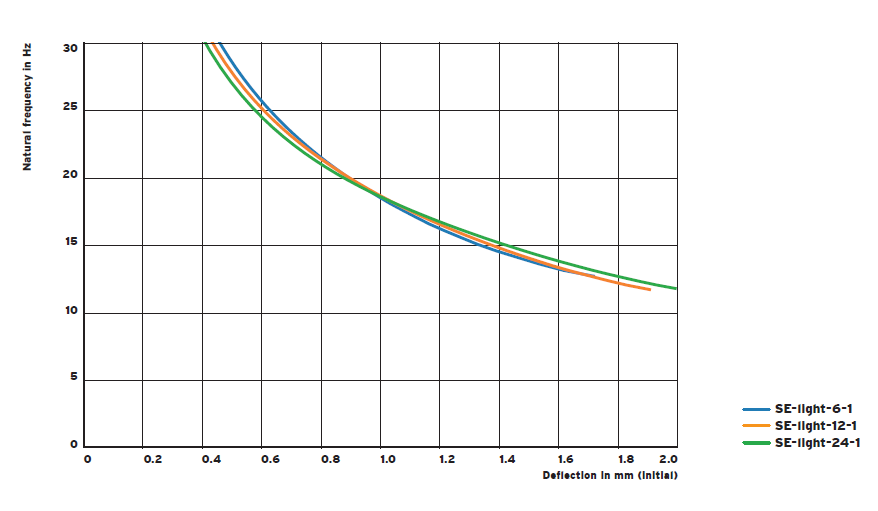

➤ Natural frequency of 10.8Hz

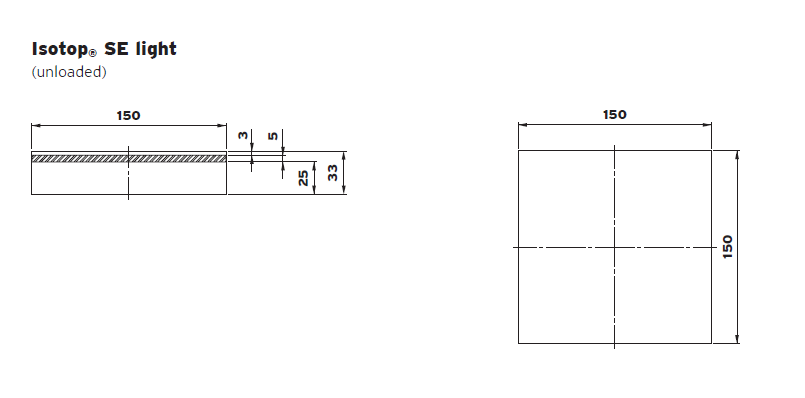

➤ 25mm Sylomer Barrier Layer

➤ 5mm steel plate for weight distribution

➤ 3mm anti slip coating for installation, no need for screw fixation

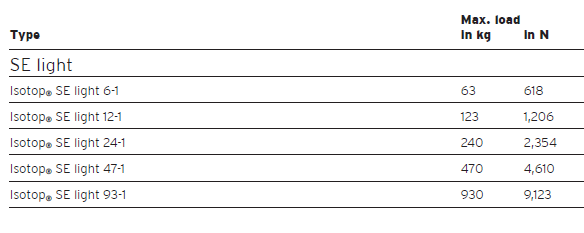

SE light series vibration isolator assembly Specifications +

.
