SD steel spring vibration isolator

SD steel spring vibration isolator Overview -

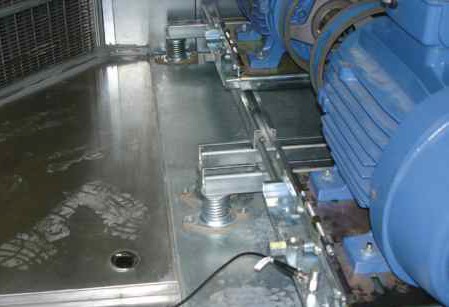

SD steel spring shock absorbers are mainly used for source isolation of ventilation equipment, fans, ventilation devices, air conditioning equipment, superchargers, backup generators or pumps.

In addition, it can also be used for receiving vibration isolation of sensitive electronic components, measuring equipment, weighing equipment, or test benches. Therefore, using this steel spring isolator can isolate all types of equipment.
SD steel spring vibration isolator Advantage +

➤ replaceable: All types of structures have the same height, diameter, and connecting threads
➤ Open structure: The excitation source is only connected to the base through a spring

➤ Free vibration attenuation spring element in the horizontal plane

➤ The spring is clearly visible and its condition can be detected without disassembly

➤ Visible spacing of spring coils under load conditions

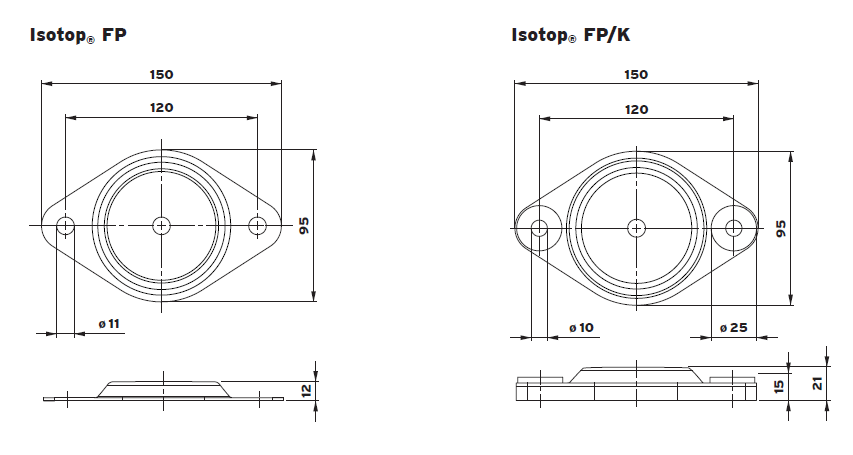

➤ Accessories, pedals, and height adjustment devices are universally applicable to all types
SD steel spring vibration isolator Performance +

➤ Steel spring isolators with standard design, galvanized or cathodically impregnated painted (KTL)

➤ Can achieve vibration isolation of technical equipment

➤ Protect sensitive equipment through receiver isolation

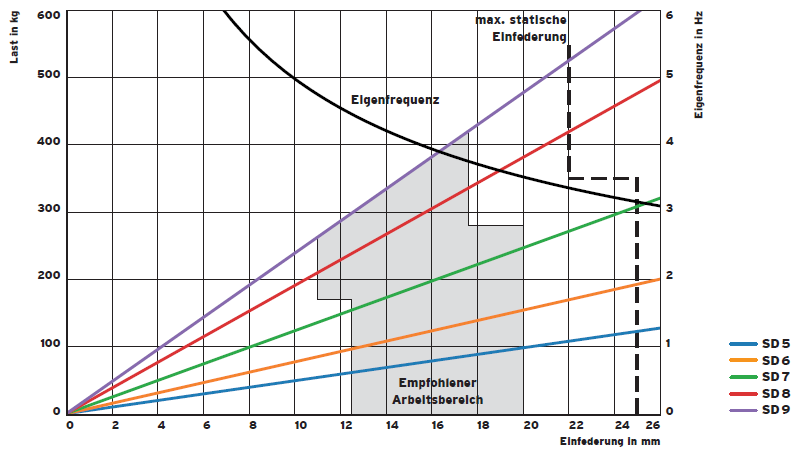

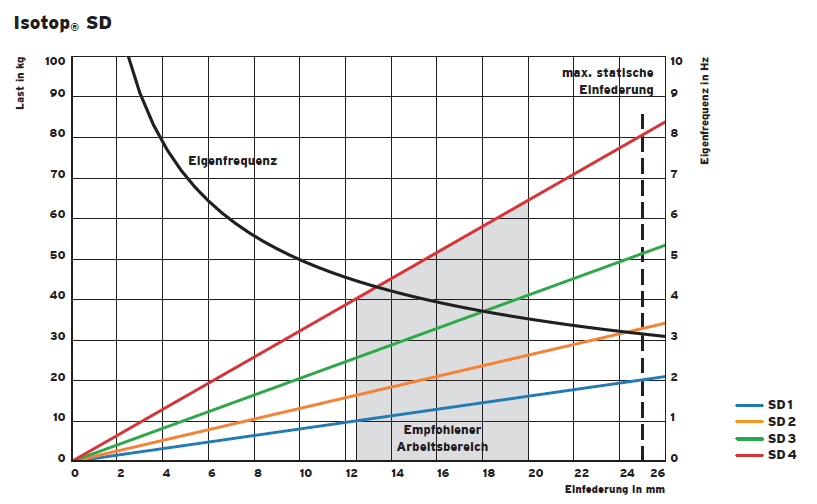

➤ The natural frequency is approximately 3Hz

➤ Design in accordance with DIN EN 10270-1: 2012 and DIN EN 13906-1: 2013 standards

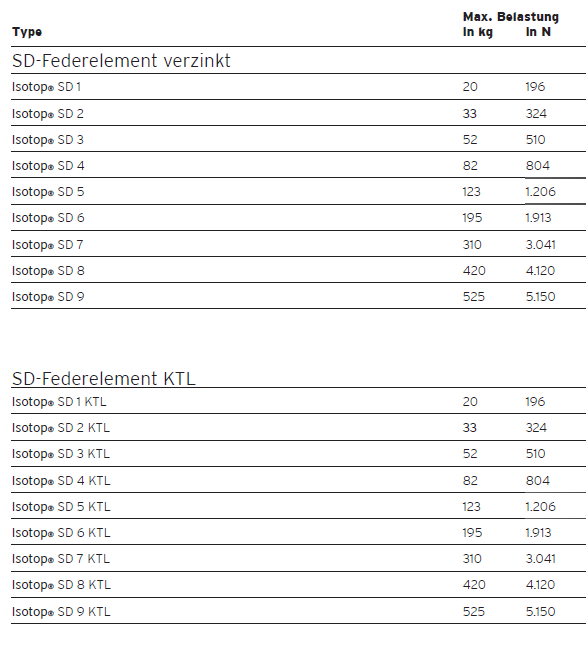

SD steel spring vibration isolator Specifications +
