Metal wire vibration isolator V-164/V168

Metal wire vibration isolator V-164/V168 Overview -

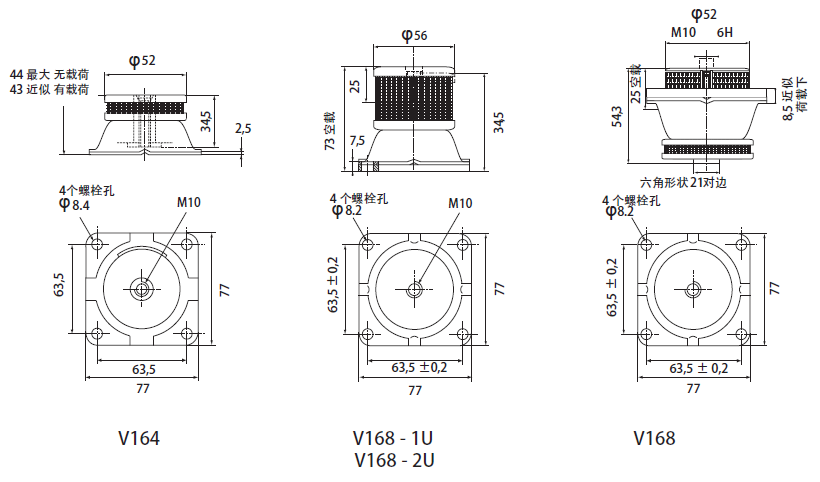

The V164 and V168 dampers consist of an upper cover, an AG3 base, and an AU4G shaft core, assembled from components of the same color; The upper and lower stainless steel cushions are the elastic body of this base. There are four positioning holes with a diameter of 8mm on the base, and a threaded hole M10 on the upper cover.
Metal wire vibration isolator V-164/V168 Advantage +

The V164 and V168 dampers consist of an upper cover, an AG3 base, and an AU4G shaft core, assembled from components of the same color; The upper and lower stainless steel cushions are the elastic body of this base. There are four positioning holes with a diameter of 8mm on the base, and a threaded hole M10 on the upper cover.

Application Description:

Its load range is 5-170kg, suitable for isolation of lightweight machine tools with engine speeds above 2500rmp;

The natural frequency of V164 is 15-22Hz, and the natural frequency of V168 is 8-12Hz. The lower gasket can withstand unexpected vibrations

Traction force (such as rebound from impact);

This type of base is resistant to chemicals and can be used as a base for petrochemical pumps.

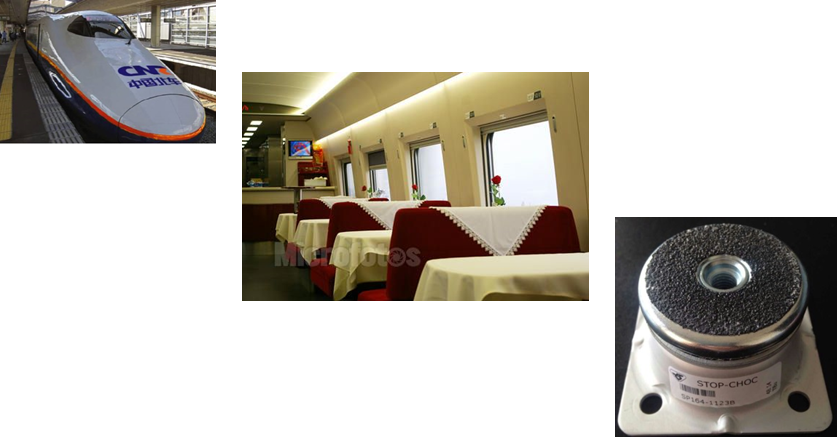

(1) Market: Rail Transit

Application: Dining cart

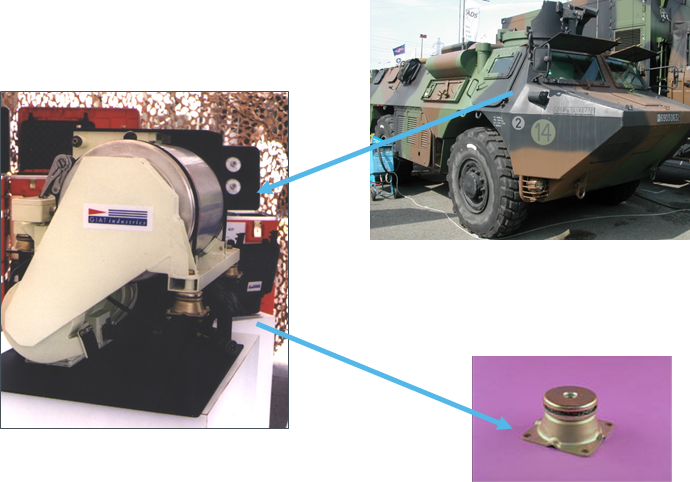

(2) Market: Armored Vehicles

Application: Air conditioning
Metal wire vibration isolator V-164/V168 Performance +

Natural frequency: 8-22 Hz

(1) 3 different size specifications

(2) 6 different load-bearing models

(3) Minimum load capacity of 5 kg

(4) Maximum load capacity of 250 kg

(5) Natural frequency 8-22 Hz

(6) Material: Metal wire

(7) Working temperature: -70 ℃~300 ℃

(8) Resonance amplification factor ＜ 4.0

Model	Axial/radial natural frequency	Static axial load (daN)	Maximum dynamic load(daN)		Weight (kg)
Model	Axial/radial natural frequency	Static axial load (daN)	Compress	Traction	Weight (kg)
V164-F V164-G	15 - 22 Hz	5 - 30 20 - 120	150 1250	150 600	0,18
V168-1U V168-2U	8 - 12 Hz	25 - 60 50 - 170	180 510	75 150	0,35
V168-1 V168-2	10 -13 Hz	25 - 60 50 - 170	75 150	180 510	0,35
