MSN-BL spring group vibration isolator

MSN-BL spring group vibration isolator Overview -

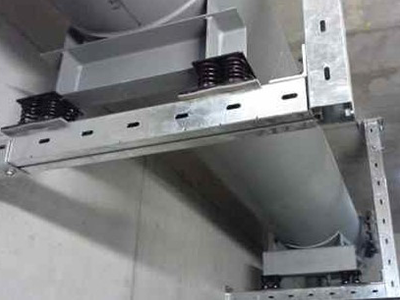

MSN-BL spring group shock absorbers are used for source isolation of machines, such as heavy-duty ventilators, fans, ventilation devices, air conditioning equipment, compressors, backup generators, pumps, textile machines, molding machines, vibrating grates or conveyors. In addition, it can also be used for receiving vibration isolation of sensitive measuring equipment, weighing instruments, test benches, switchgear or transport brackets. This steel spring isolator can be used for vibration isolation of all types of machines.
MSN-BL spring group vibration isolator Advantage +

➤ Flat isolation components for smaller loads
➤ Limited structural height

➤ As the structural height of all models is the same, they can be freely exchanged

➤ Open structure - the excitation source is only connected to the suspension point through a spring

➤ Free vibration attenuation spring element in the horizontal plane

➤ A freely visible spring that can be inspected for its condition (including under load) without the need for disassembly

➤ Adjustable steel plate on the specified connection surface

➤ Isotop BL/DSD components can define static and dynamic rigidity and damping effects

➤ High production accuracy - no measurement deviation or technical value deviation
MSN-BL spring group vibration isolator Performance +

➤ Suitable for low rise isolation components with small loads and limited structural height

➤ Source isolation

➤ Receiver isolation

➤ Vibration isolation

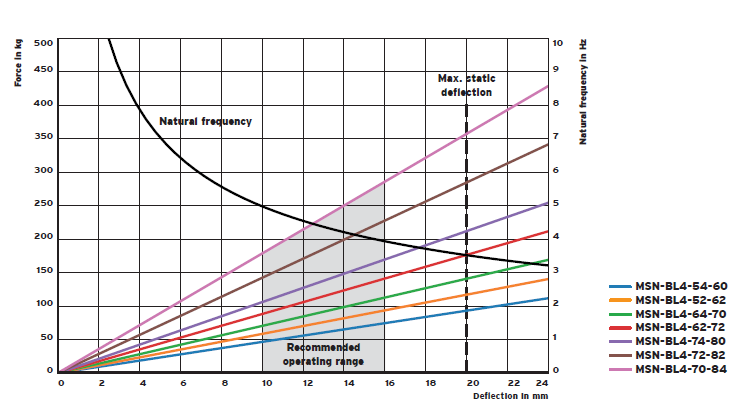

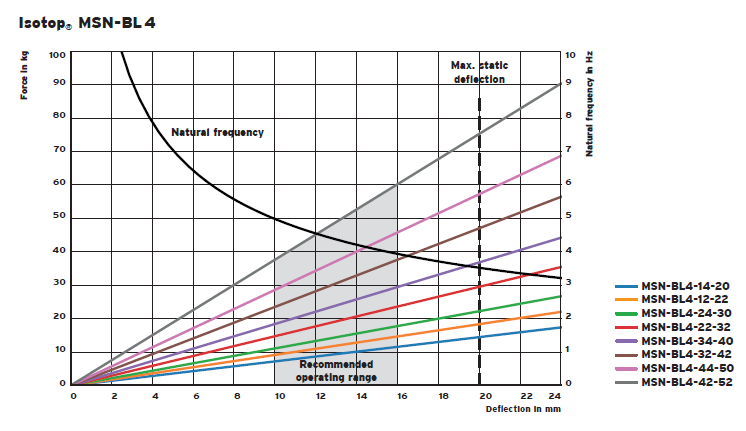

➤ The natural frequency is approximately 3 Hz

➤ Powder coating on printing plates, cathodic impregnation coating on springs

➤ Designed to comply with DIN EN 10270-1: 2012+DIN EN 13906-1: 2013 standards

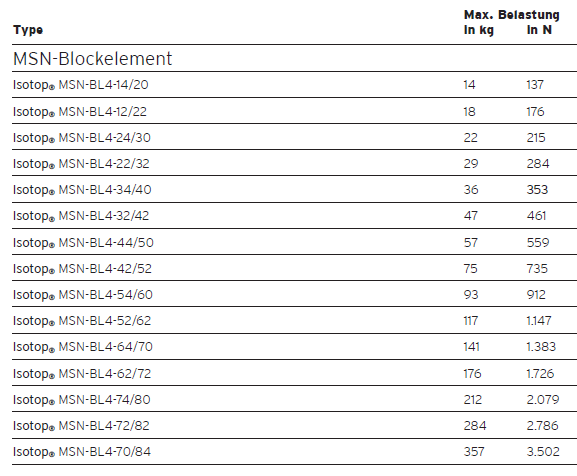

MSN-BL spring group vibration isolator Specifications +
