Viscoelastic damper – type VM

VM type viscous damping vibration isolator

Viscoelastic damper – type VM Overview -

Polybutene-based media suited for medium damping parameters (d = up to 438 kNs/m at 5 Hz) and operating temperatures from

-10 °C to +40 °C.
Viscoelastic damper – type VM Advantage +

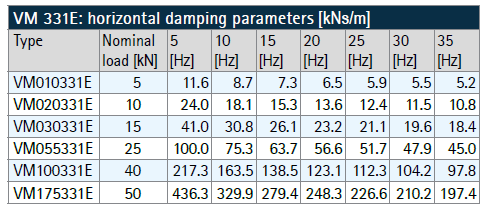

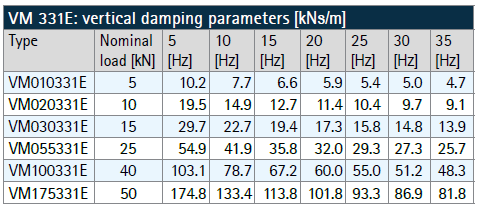

Viscoelastic damper – type VM Performance +

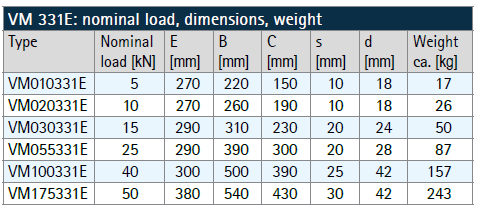

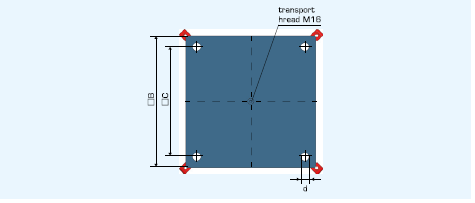

Viscoelastic damper – type VM Specifications +
Key parameters required to define a damping solution are as follows:

operating temperatures [°C], i.e. the lowest and highest expected temperature of the vibrating system and the environment

resonance frequencies [Hz] of the vibrating system

amplitude [mm] of the vibrating system

mass [kg] of the vibrating system between two fixed points

cold / hot displacement
