Rubber vibration isolator- STARFIX pipe shock absorber

Rubber vibration isolator- STARFIX pipe shock absorber Overview -

Description

This product is made of vulcanized toothed rubber and steel strip, and toothed rubber is used to fix pipelines. There are three types of products to choose from based on the diameter of the pipeline.

There are two types of elastic materials: chloroprene rubber and fire-resistant silicone.
Rubber vibration isolator- STARFIX pipe shock absorber Advantage +

➤ Wide range of pipeline diameter adaptability: 6-206.5 mm.
➤ Easy to cut and shape.
Rubber vibration isolator- STARFIX pipe shock absorber Performance +

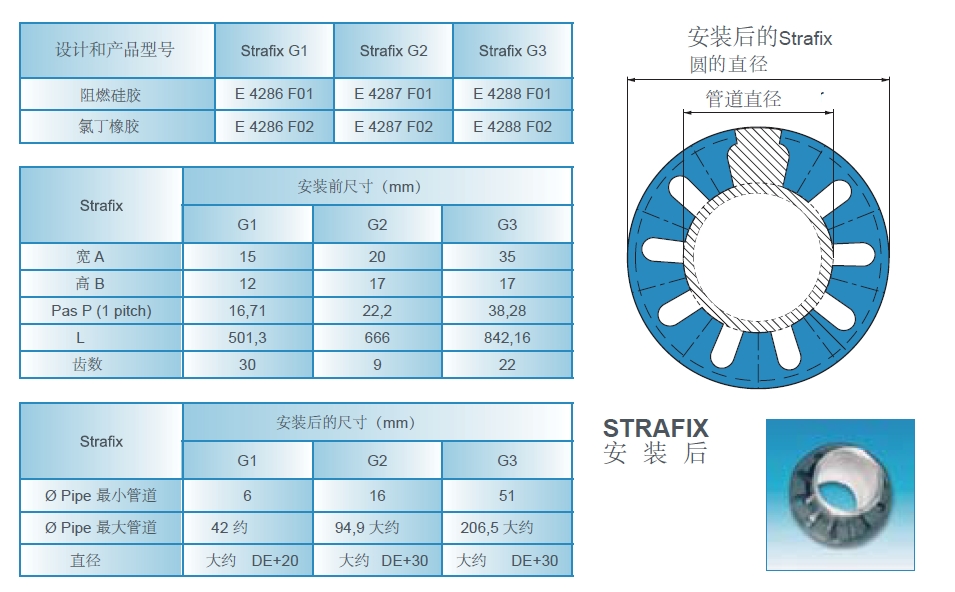

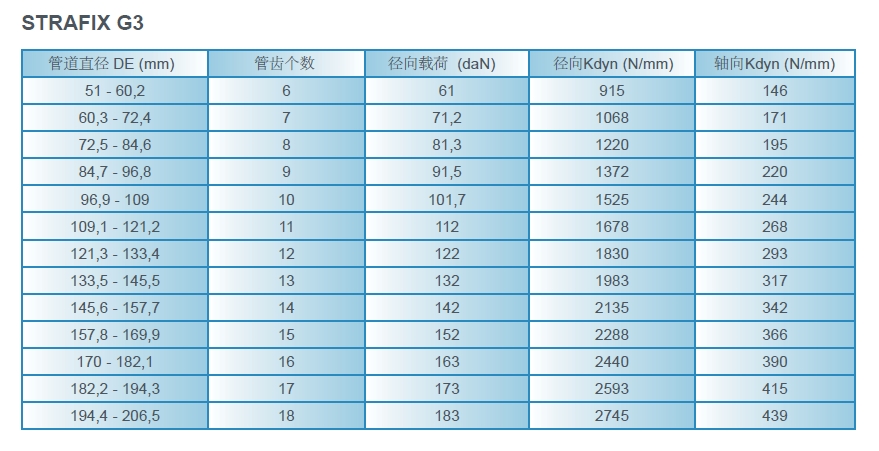

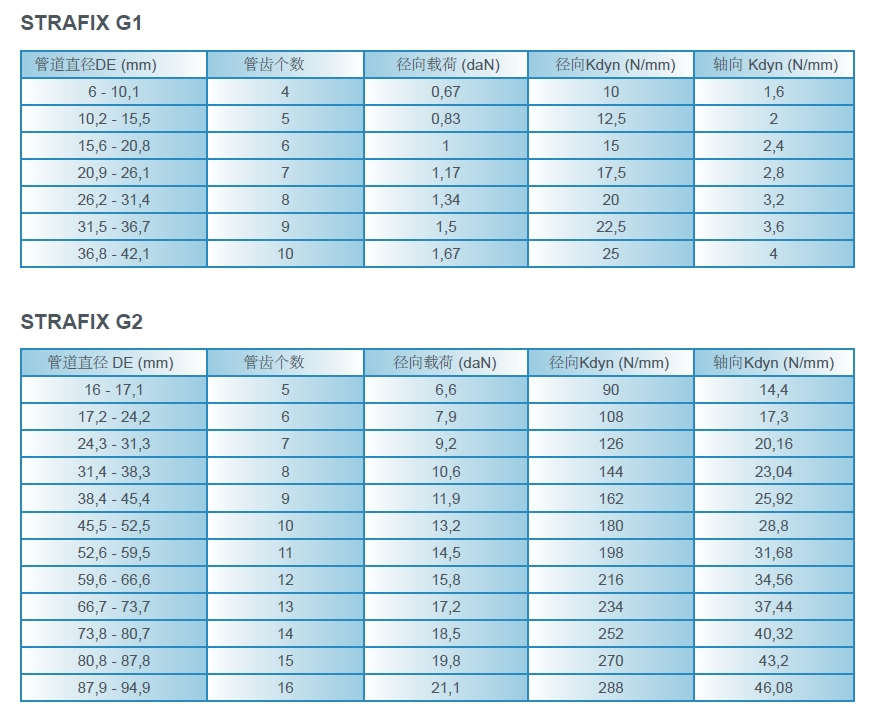

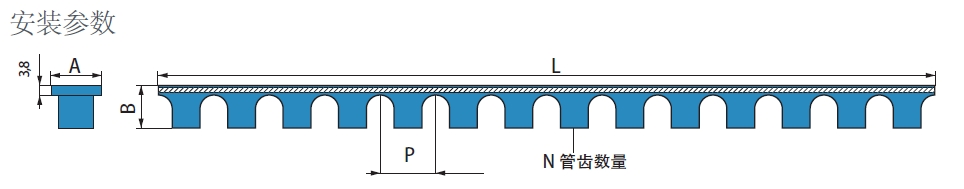

Rubber vibration isolator- STARFIX pipe shock absorber Specifications +

Feature

Mechanical parameters

➤ Maximum amplitude in all directions: ± 0.5 mm.

➤ CR: Maximum static load.

➤ CA: Maximum axial load: 20% of the maximum static load.

➤ Maximum impact strength: radial=10 x maximum static load;

Axial=4 x maximum axial load.
