Metal wire vibration isolator V-118-MG/V118-DG/V318/V318-D

Metal wire vibration isolator V-118-MG/V118-DG/V318/V318-D Overview -

V118-MG and V318 are composed of a cast iron upper cover with a central threaded hole and a base with four positioning holes.

Its elastic body is a stainless steel wire mesh ring: V118-MG and V318 have two soft cushions; V118-DG and V318-D have three soft cushions.
Metal wire vibration isolator V-118-MG/V118-DG/V318/V318-D Advantage +

V118-MG V118-DG
V318 V318-D

Natural frequency: 11-22 Hz

V118-MG and V318 are composed of a cast iron upper cover with a central threaded hole and a base with four positioning holes.

Its elastic body is a stainless steel wire mesh ring: V118-MG and V318 have two soft cushions; V118-DG and V318-D have three soft cushions.

Application fields:

The natural frequency of this series of bases is 18-25 Hz and is suitable for the following devices:

(1) Heavy machinery (such as powder mills, crushers, inclined presses, centrifugal presses, printing machines, textile machines, etc.);

(2) Rotating electrical machines (such as motors, generator sets, pumps, etc.), V118-DG and V318-D are used for speeds above 2000rpm; V118-MG and V318 are used for speeds above 2500 rpm;

(3) Elevated mobile crane (main structure, cockpit, equipment).

This series of suspensions has equal stiffness and anti rebound characteristics, and can be used to suspend dynamic engine suspensions for ships and vehicles; The temperature resistance range is -70 ° C to+300 ° C, and it can be used as a support for exhaust pipes.
Metal wire vibration isolator V-118-MG/V118-DG/V318/V318-D Performance +

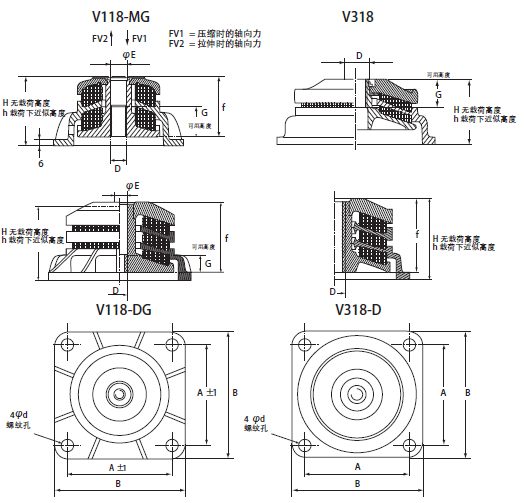

Model	A (mm)	B (mm)	D	φd E(mm)	G (mm)	H (mm)	φd (mm）	f (mm)	Approximate height under FV1 (mm)	Approximate height under FV2 (mm)
Model	A (mm)	B (mm)	D	φd E(mm)	G (mm)	H (mm)	φd (mm）	f (mm)	Approximate height under FV1 (mm)	Approximate height under FV2 (mm)
V118-MG	100	130	M16	16,5	30	73	12	63	68	77
V118-DG	100	130	M16	16,5	30	98	12,5	84	-	-
V 318	170	220	M27	-	59	97	17	-	93	100
V318-D	170	220	M27	-	-	125	17	112	-	-

Model	Load range (daN)	Maximum dynamic load(daN)			Natural frequency (Hz)	Weight (kg)


		Axial compression	Axial tension	Radial
V118-MG	50 à 900	4 500	1 500	1 500	16-22	2
V118-DG					11-17	2,4
V318	250 à 7 000	21 000	9 000	7 500	16-22	10
V318-D					11-17	13
