Wire rope vibration isolator - VIBCABLE
-
Wire rope vibration isolator - VIBCABLE Overview -
This series of bases are made of stainless steel wire cables wrapped around lightweight aluminum grids. The 8010-8060 versions are assembled using stainless steel fixtures, while the 8080-8140 versions are assembled using electroplated steel screws. -
Wire rope vibration isolator - VIBCABLE Advantage +
This series of bases are made of stainless steel wire cables wrapped around lightweight aluminum grids. The 8010-8060 versions are assembled using stainless steel fixtures, while the 8080-8140 versions are assembled using electroplated steel screws.Each aluminum grid has two to four positioning holes, which can be smooth holes, countersunk screw holes, or threaded holes.Application fields:This type of damper can alleviate the acceleration caused by impact or falling, protect equipment in boxes, and protect fragile items on luggage racks and mobile devices. -
Wire rope vibration isolator - VIBCABLE Performance +
Natural frequency 5-25 Hz, attenuation up to 40%, high displacement in all directions. -
Wire rope vibration isolator - VIBCABLE Specifications +

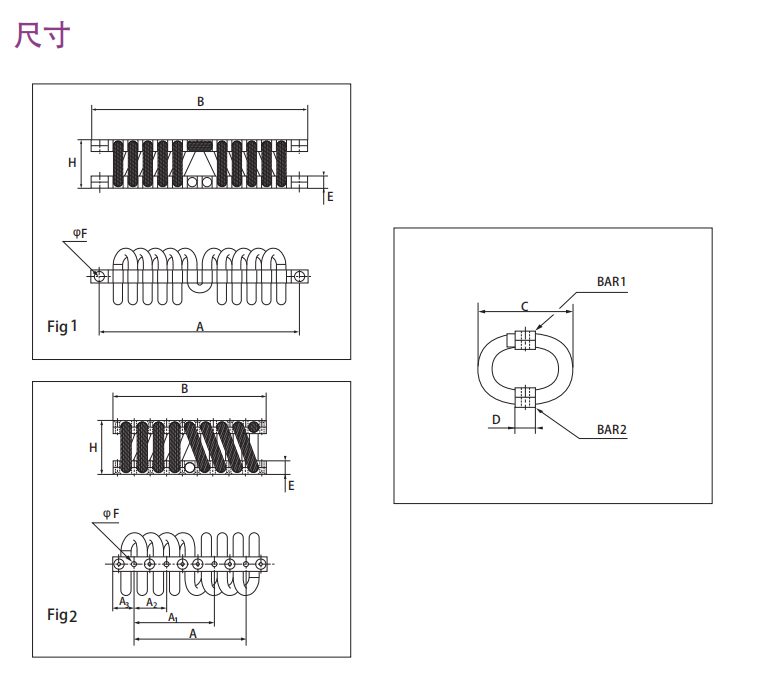

Technical Specifications：
Model Sample diagram A (mm) B (mm) C (mm)
Depends on the versionD (mm) E (mm) F (mm)
(2 fixed holes)H (mm)
Depends on the versionmin. max. Tapping hole Threaded hole 1 2 3 4 5 6 V3CA8010-01 - -06 1 68 82 25 38 10 5 4,8 M4 18 26 20 28 30 33 V3CA8020-01 - -06 1 100 112 29 43 12,5 6 5,8 M5 21 31 35 25 28 38 V3CA8030-01 - -06 1 114 127 37 49 14 8 6,5 M6 28 30 33 36 38 41 V3CA8040-01 - -03 1 114 127 37 44 14 8 6,5 M6 28 33 38 - - - V3CA8060-01 - -06 1 114 127 37 95 14 10 6,5 M6 38 43 87 43 31 34 V3CA8080-01 - -06 2 131 146 57 102 16 13 6,5 M6 48 54 60 64 80 90 Model Shape A
(mm)A1
(mm)A2
(mm)A3
(mm)B
(mm)C (mm)
Depends on the versionD
(mm)E
(mm)F (mm)
(4 fixed holes)H (mm)
Depends on the versionmin.
max. Tapping hole Threaded hole 1 2 3 4 5 6 V3CA8090-01 to -06 2 156 111 44,5 30 216 80 135 25 16 9 M8 70 74 89 110 68 77 V3CA8100-01 to -06 2 156 111 44,5 30 216 92 150 25 20 9 M8 75 89 95 110 83 108 V3CA8110-01 to -06 2 191 136,5 54,5 38,1 267 102 170 25 25 11 M10 90 95 100 100 110 150 V3CA8120-01 to -04 2 266,5 190,5 76 50,5 370 145 195 40 40 13 M12 135 150 160 160 - - V3CA8140-01 to -02 2 378 270 108 70,8 520 224 248 50 50 20 M18 180 218 - - - - Operating characteristics：

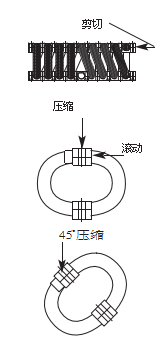

Model Rated load range (daN) Compression 45 ° compression Rolling/cutting Version 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 V3CA-8010 7 3 5 5 4 4 6 3 4 4 3 3 4 2 3 2 2 2 V3CA-8020 11 20 19 15 74 26 8 14 14 11 13 19 6 10 10 7 9 13 V3CA-8030 17 18 17 13 11 10 13 13 13 10 8 8 9 9 9 7 6 5 V3CA-8040 86 62 40 66 48 31 42 31 20 V3CA-8060 63 58 19 53 82 100 46 44 15 40 62 75 32 29 10 27 41 50 V3CA-8080 88 62 51 47 25 26 66 47 39 36 19 19 44 31 26 24 13 13 V3CA-8090 194 162 120 82 188 134 147 122 91 62 142 101 97 81 60 41 94 67 V3CA-8100 439 414 481 215 442 290 330 312 363 162 332 218 220 207 240 108 221 145 V3CA-8110 848 682 712 529 486 315 639 532 556 406 366 246 424 342 357 265 243 157 V3CA-8120 1 658 1 396 878 651 1 272 1 055 664 492 331 698 441 320 V3CA-8140 2 229 2 031 1 687 1 527 Operating temperature: -180 ° C ± 300 ° C.Resistance: Conductive film<210 ° 0.Environment: This material is not affected by harsh environmental conditions.Vibration transmission coefficient curve：
There may be smooth, threaded, or countersunk screw holes on the aluminum grid, and several types of combinations are also possible：Grid1 Smooth hole：L Threaded hole：N Countersunk screw hole：F Grid2 Smooth hole: L LL NL FL Threaded hole：N LN NN FN Countersunk screw hole： F LF NF FF
