Rubber vibration isolator- VIIBAR
-
Rubber vibration isolator- VIIBAR Overview -

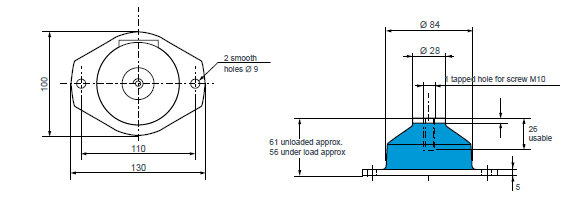

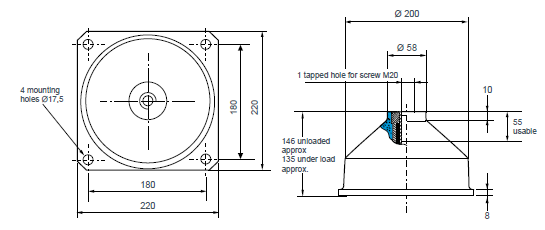

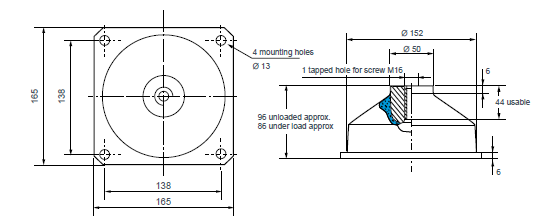

The VIBMAR series has a base plate with two or four mounting holes and a tapped steel core.The elastomer is bonded to the steel.E1N104 and E1N106 versions have a conical spring embedded in the rubber.Environmental protection is provided by painting the metal parts and by coating the elastomer withan ozone resistant compound.
APPLICATIONSThese multi-axis low frequency dampers have been specially designed to protect electrical orelectronic racks and marine or road transport generator sets (on board or not). They are cone-shapedto absorb considerable displacement and shocks. -
Rubber vibration isolator- VIIBAR Advantage +
-
Rubber vibration isolator- VIIBAR Performance +
-
Rubber vibration isolator- VIIBAR Specifications +
