DMSN-BL spring (damping) vibration isolator

DMSN-BL spring (damping) vibration isolator Overview -

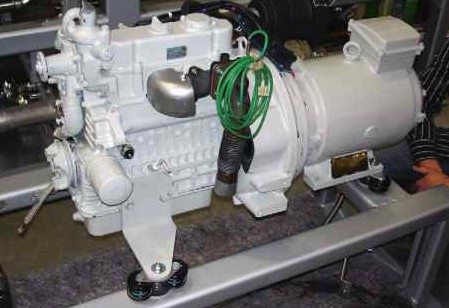

The DMSN module components combine the characteristics of various Isotop @ DMSN steel springs, making them suitable for applications with high loads but low installation heights. Therefore, Isotop @ DMSN-BL is suitable for heavy-duty machines with multiple start stop cycles, such as pumps or small cogeneration units.
DMSN-BL spring (damping) vibration isolator Advantage +

➤ Low structural height, low natural frequency
➤ Open spring design

➤ Anti corrosion protection

➤ Modular and compact product design

➤ M10 thread is easy to connect
DMSN-BL spring (damping) vibration isolator Performance +

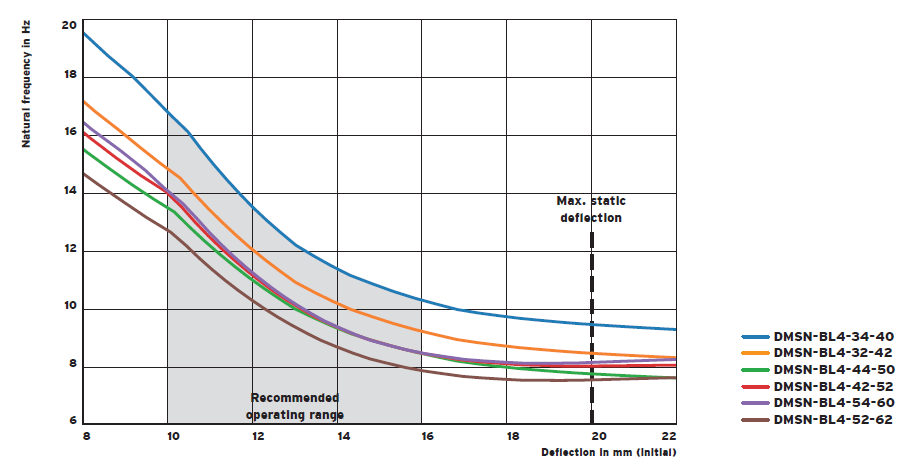

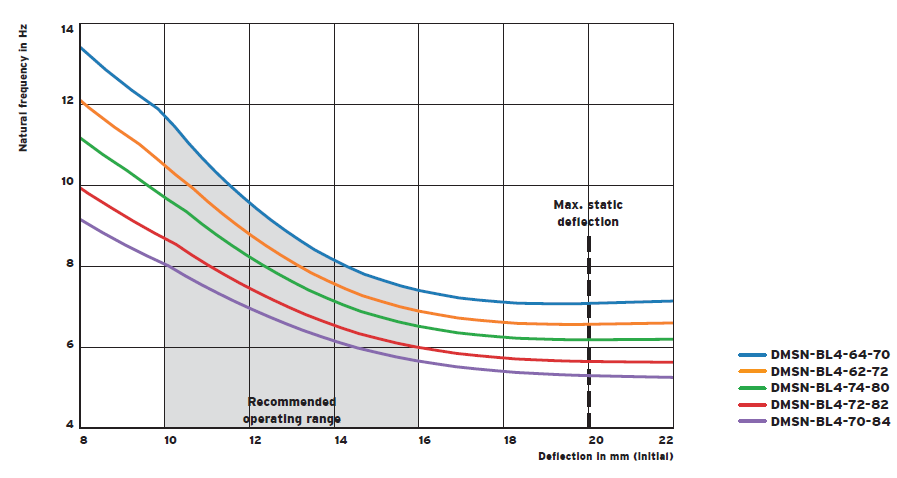

➤ Natural frequency as low as 7.5Hz

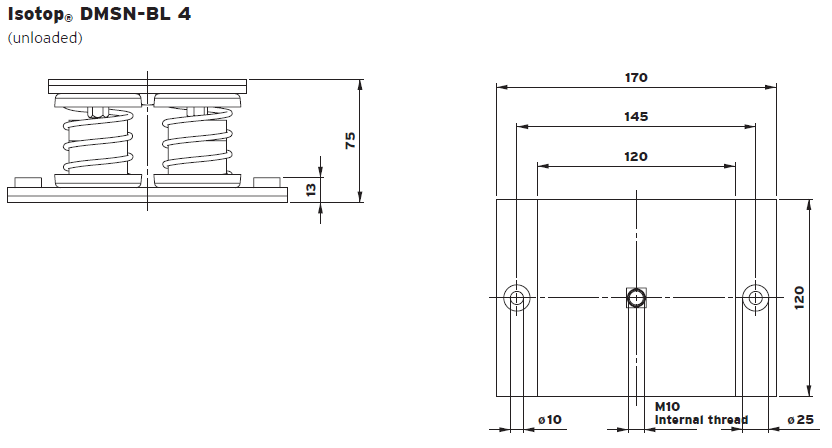

➤ Lower 79mm structural height

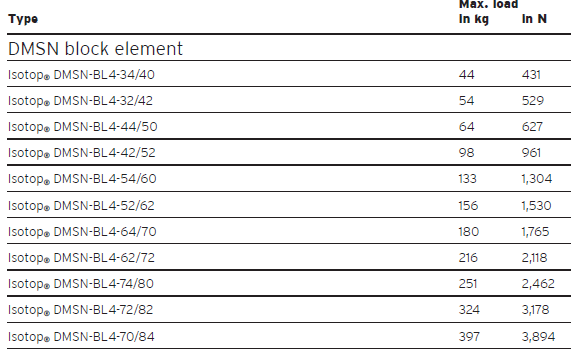

➤ Each component has a load-bearing capacity of up to 1390kg

➤ Built in Sylodamp - perfect for machines with multiple start stop cycles

➤ The top and bottom plates are coated with 4mm Sylomer anti slip coating

➤ Cathodic immersion coating (CDC) spring can enhance corrosion resistance performance

➤ Special bonding ensures a strong connection between the board and the spring

➤ The top plate has M10 threads

➤ Open design enables simple load control

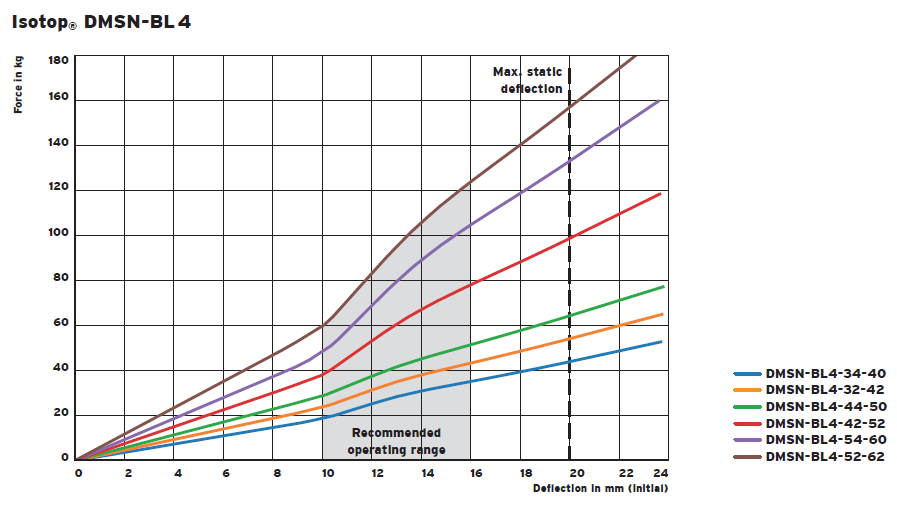

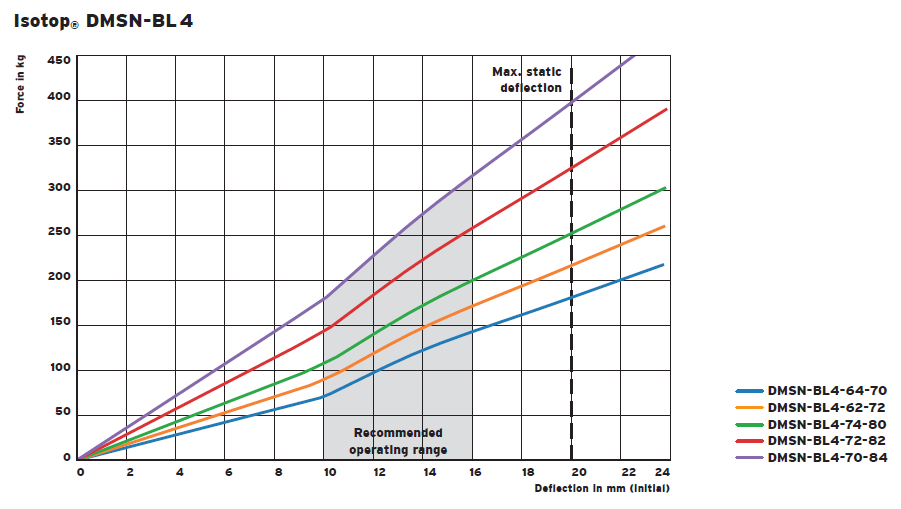

DMSN-BL spring (damping) vibration isolator Specifications +
