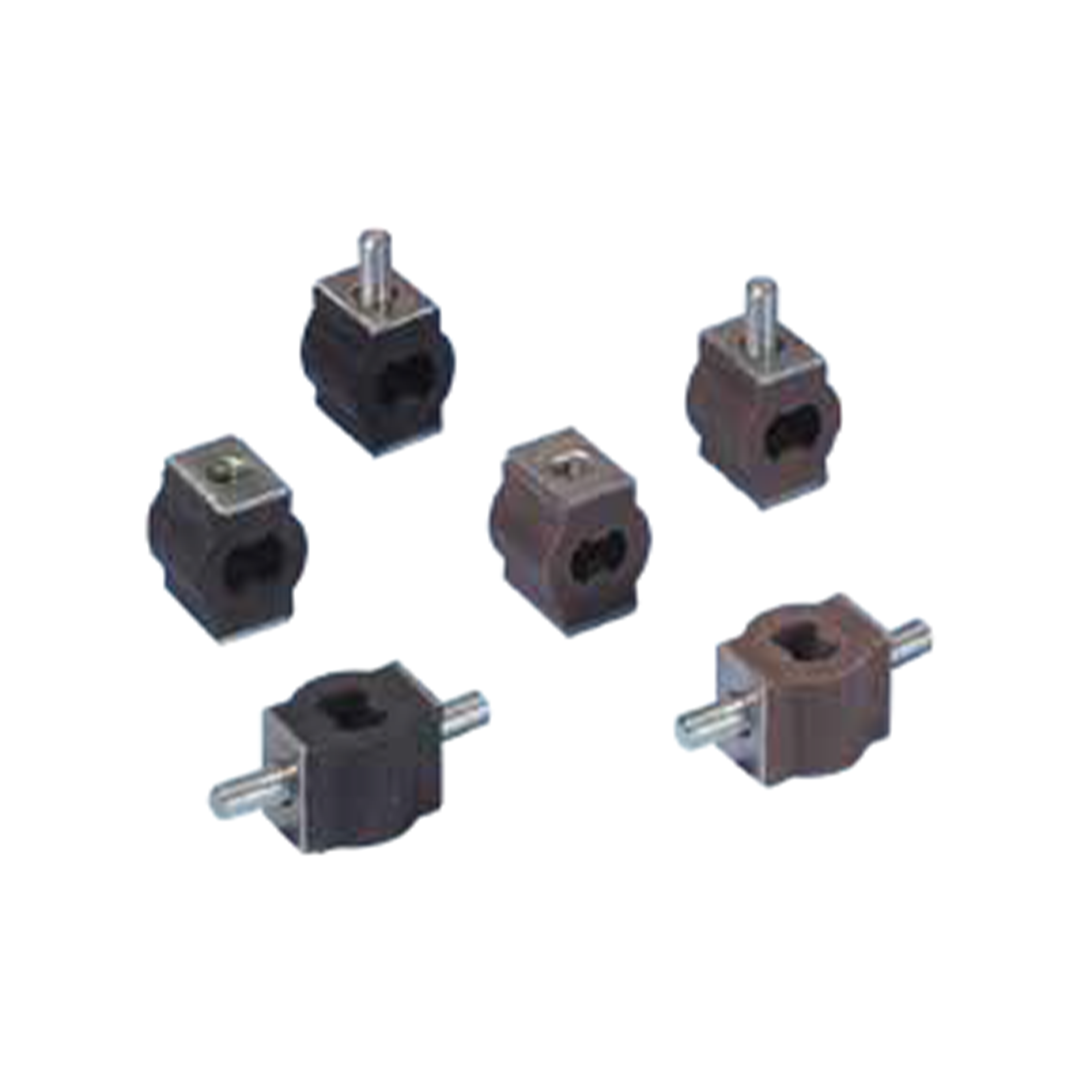

Silicone rubber vibration isolator - S.L.F.MOUNTS

Silicone rubber vibration isolator - S.L.F.MOUNTS

Silicone rubber vibration isolator - S.L.F.MOUNTS Overview -

Low frequency high deflection antivibration mount available in rubber silicone. The zinc plated mild
steel metalwork is fully bonded for improved fatigue strength.

Natural frequency : 10 to 25 Hz

APPLICATIONS

These mounts have been designed to protect low mass components and instruments from vibration

and shock and to isolate small rotating machines e.g. pumps and electric motors.
Silicone rubber vibration isolator - S.L.F.MOUNTS Advantage +
Silicone rubber vibration isolator - S.L.F.MOUNTS Performance +

OPERATING CHARACTERISTICS

Maximum sinusoidal input at resonance : ± 0.5 mm.

Resonance frequencies at maximum input : 10 to 25 Hz dependent on axis and load.

Axial to radial stiffness : 3 : 1.

Amplification at resonance : silicone : 4 / natural rubber : 10.

Maximum displacement during shock :
axial : 5 mm.

radial : 7 mm.

Mechanical strength corresponding to a continuous acceleration of 10 g at maximum load.
Silicone rubber vibration isolator - S.L.F.MOUNTS Specifications +

ASSEMBLY

Improved stability can be achieved if the mounts are inclined at 45° towards the centre of gravity.

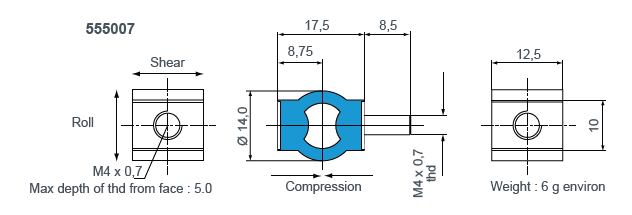

尺寸：
