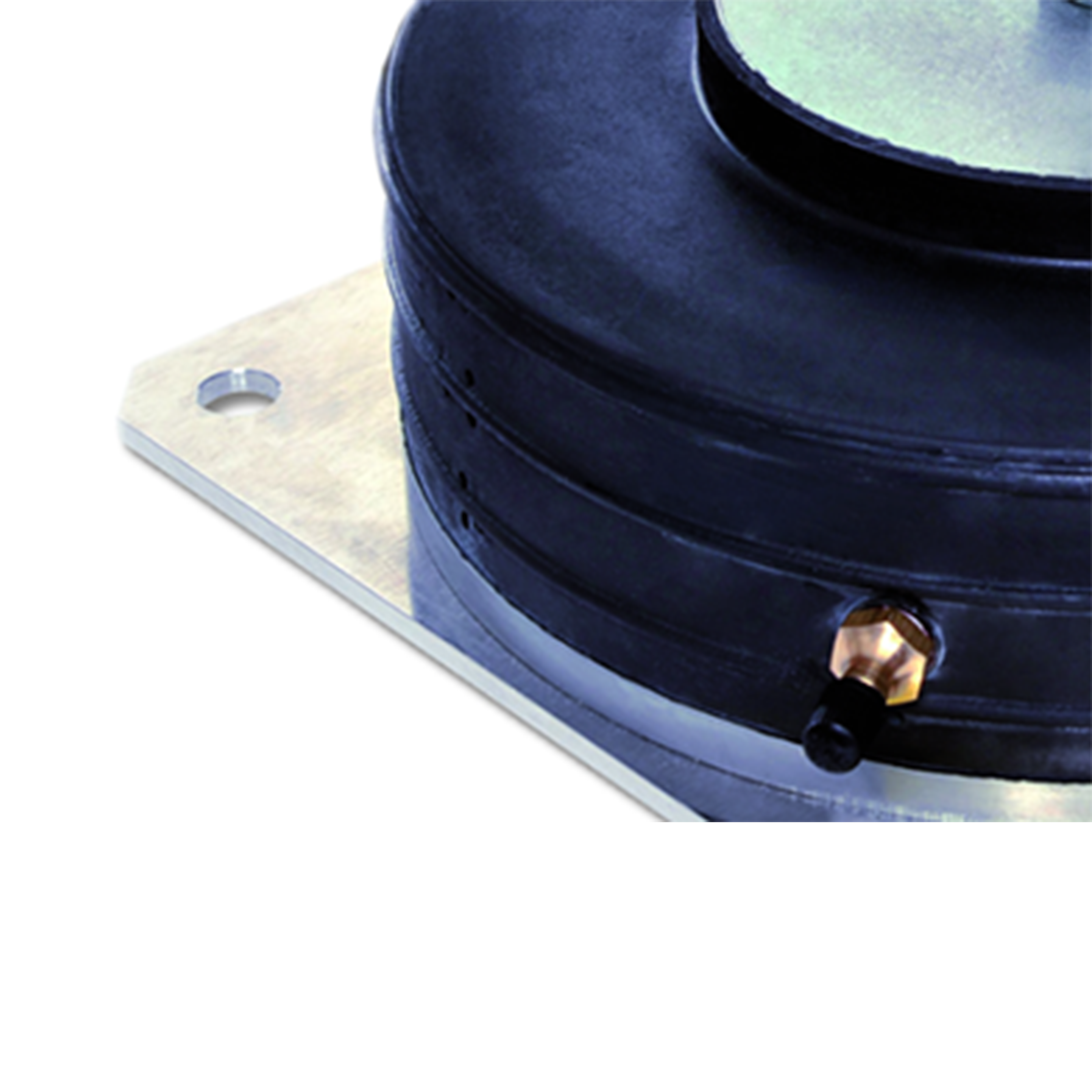

SLM series air spring vibration isolator pad

SLM series air spring vibration isolator pad

SLM series air spring vibration isolator pad

SLM series air spring vibration isolator pad Overview -

Structure
Elastic metal combination, with a bottom plate that can be fixed with screws, gas chamber made of elastic material, reinforced with steel rings, available in 10 sizes.

Application field

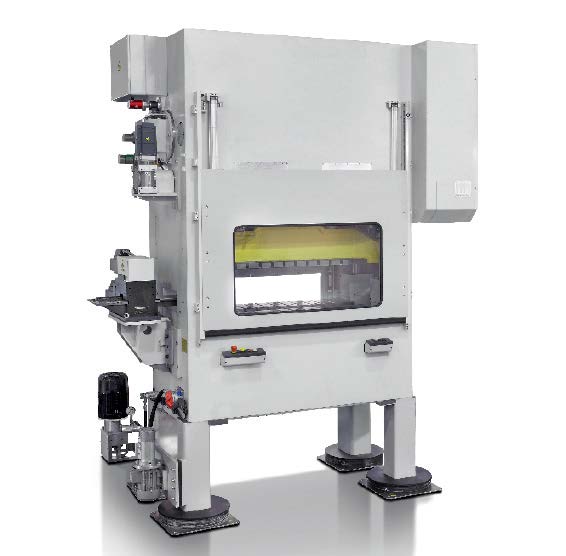

Measuring machine, flat workbench, equipment foundation, press machine, automatic shearing machine, bite machine, compressor, fan, air conditioner, etc.
SLM series air spring vibration isolator pad Advantage +
SLM series air spring vibration isolator pad Performance +

➤ Low frequency active or passive shock absorption

➤ The vertical and horizontal stiffness is approximately 1:1

➤ Vibration isolation

➤ Impact absorption

➤ Structural sound insulation

➤ No need for anchoring installation

➤ Can work without inflation

➤ Load range: 0.2-100 kN

➤ Natural frequency (static): 3-5 Hz

➤ Natural frequency (static): 8 Hz without inflation

SLM series air spring vibration isolator pad Specifications +

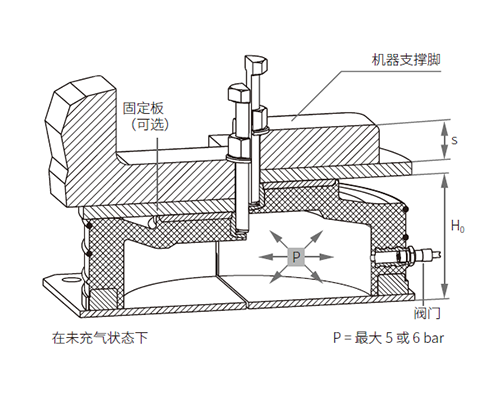

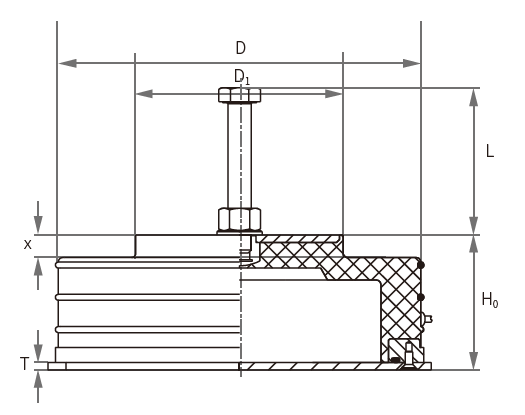

SLM 系列空气弹簧减震垫脚(图1)

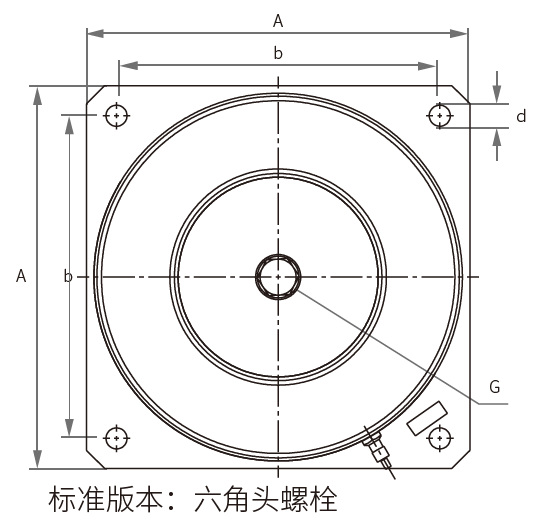

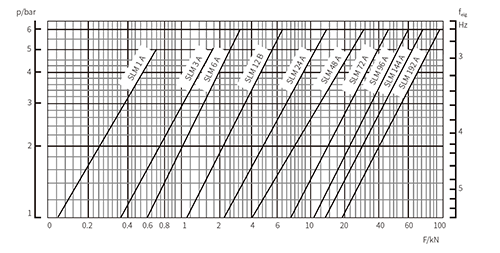

SLM 系列空气弹簧减震垫脚(图2)

Model	D	H₀	D₁	G	L	S machine base thickness	Ni	X	A	b	d	T	Weight	Maximum load（kN）
Model	D	H₀	D₁	G	L	( Maximum)	Ni	X	A	b	d	T	（kg）	Maximum load（kN）
SLM 1 A	73	65	28	M10	80	50	±5	12	75	60	7	3	0.3	0.65
SLM 3 A	105	65	52	M12	90	65	±5	12	105	89	7	3	0.5	1.8
SLM 6 A	127	90	60	M12	90	65	±6	15	130	108	7	3	1	2.8
SLM 12 B	172	90	96	M12	90	65	±6	15	175	153	7	3	2.2	6
SLM 24 A	245	90	138	M16	100	75	±6	15	255	215	14	5	7.2	13
SLM 48 A	338	90	205	M16	100	75	±6	15	343	305	14	5	14.7	26
SLM 72 A	380	91	255	M24 x 1.5	140	75	±6	17	385	310	20	6	22.5	38
SLM 96 A	468	90	300	M24	130	75	±6	15	470	406	20	6	29.3	55
SLM 144 A	550	91	360	M24 x 1.5	140	75	±6	17	555	480	20	6	46.5	76
SLM 192 A	610	90	430	M24	130	75	±6	15	610	508	20	6	52.5	100

Unit=mm L=Bolt length
