DESCRIPTION

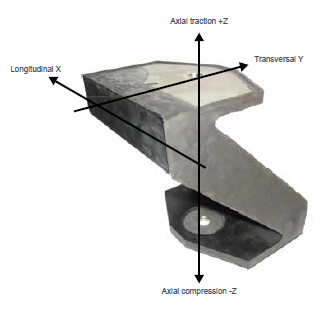

A range of multi directional mounts with very large deflection manufacture with elastomer and metal

parts.

The elastomer is based on natural rubber which has been specially developed for marine

applications.
Rubber vibration isolator- VIB VHD 75 high displacement low load Advantage +

The mounts provide a high level of vibration isolation and shock attenuation. Their strenght is equal

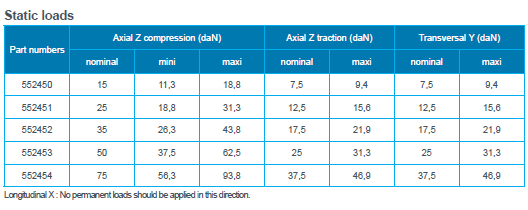

to a continuous acceleration of 10g at the maximum load. The range includes 5 references with load

ranging from 11 to 94 daN.

The mounts meet the shock requirements for European and North American specifications.

The metalwork is covered with elastomer to protect it against corrosion (ex. : salt fog).
Rubber vibration isolator- VIB VHD 75 high displacement low load Performance +

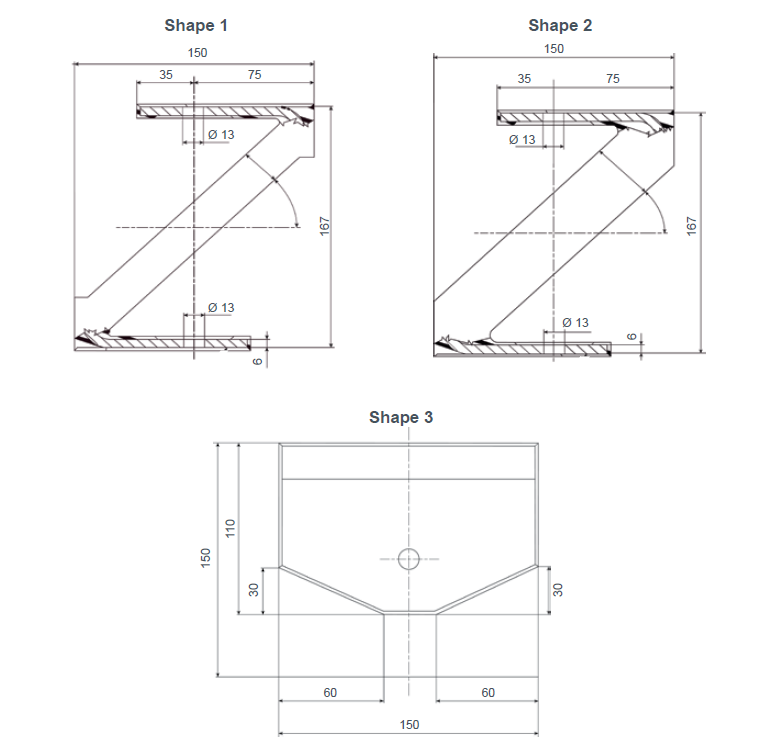

DIMENSIONS

TECHNICAL CHARACTERISTICS

➤Resonance frequency axial and radial : 5 to 7 Hz depending on load.
➤Deflection during shock : 75 mm in alldirections.
➤Mechanical strenght : 10 g with maximum load.
➤Operating temperature : - 30 °C to + 80 °C.
➤Metallic parts are covered with elastomer provide good corrosion resistance when used in a sea water environment.

ASSEMBLY

In the case of a large cabinet, the mounts can also be used as stabilisers.

They should be fixed after the load has been supported by main mountings.

To ensure the mounting system operates correctly all connections should be capable of large

displacements. We recommend that installation design should be approved by our technical

department.
