DZE-MINI damping vibration isolator

DZE-MINI damping vibration isolator Overview -

DZE-MINI damping vibration isolator is a stainless steel tensile isolation pad composed of multiple parts, using two vibration-isolating materials, Sylodyn and Slyomer. This component can be adjusted according to actual needs based on load and interference frequency, with a resonance frequency of up to 7Hz or 11Hz (DZE Mini). This type of component has a wide range of applications, such as compressors, pumps, cooling towers, fast running rotary engines, central heating stations, rooftop mounted equipment, backup generators, or mobile applications. Tensile isolation pads can achieve various types of vibration isolation.
DZE-MINI damping vibration isolator Advantage +

➤ Different combinations of springs and shock absorbers make it perfectly suitable for various target devices
➤ Using pre installed components for easy installation

➤ No risk of rupture, especially suitable for narrow and long devices as well as mobile applications

➤ Long service life

➤ Low natural frequency

➤ Low structural height

➤ Good corrosion resistance
DZE-MINI damping vibration isolator Performance +

➤ The stretching and compression element comes with two different vibration-isolating materials: Sylodyn and Sylomer

➤ Machine elastic support structure

➤ Vibration isolation

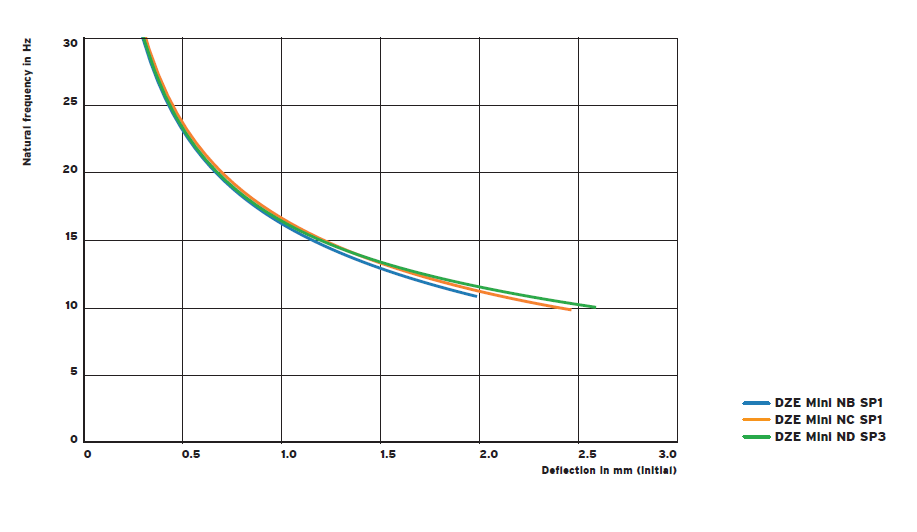

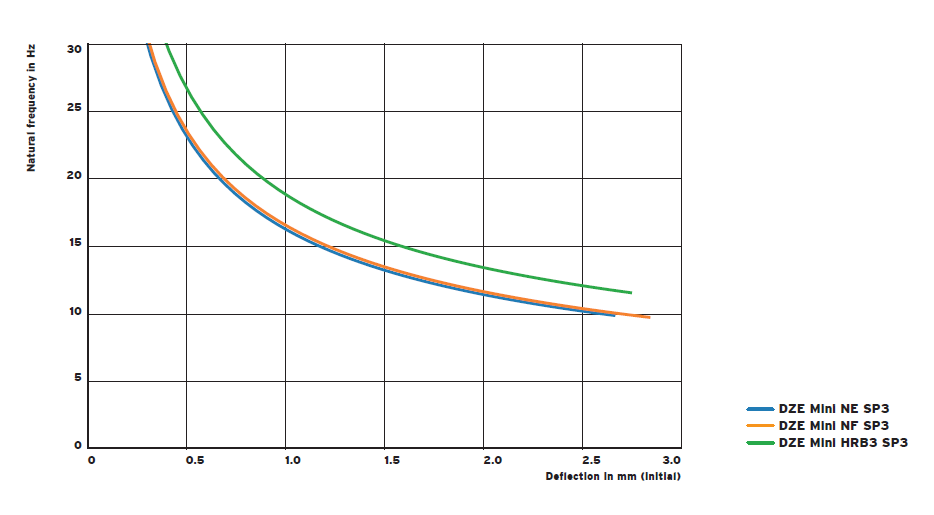

➤ Resonance frequency can reach 7Hz or 11Hz (DZE Mini)

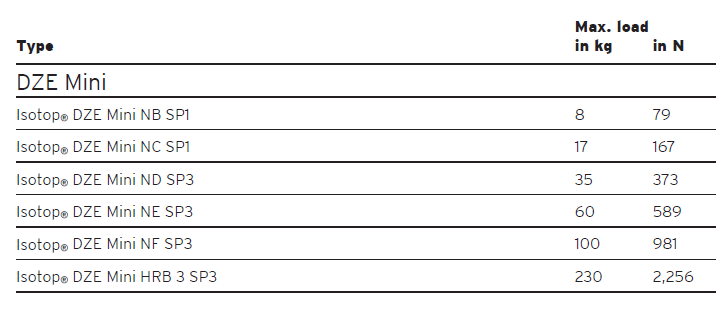

DZE-MINI damping vibration isolator Specifications +
