Rubber vibration isolator - GB 530 MOUNTS

Rubber vibration isolator - GB 530 MOUNTS

Rubber vibration isolator - GB 530 MOUNTS Overview -

Description
TGB530 is composed of an elastic body vulcanized with rubber and a bottom plate, and a threaded steel core (non-magnetic option).

Application

This base is specially designed for the shipbuilding industry and can be used for marine electronic instruments, radar, and weapon equipment.
Rubber vibration isolator - GB 530 MOUNTS Advantage +

➤ There is significant deformation under impact.
➤ Long service life.

➤ Low natural frequency (axial 5 Hz).

➤ The amplitude is small during resonance.
Rubber vibration isolator - GB 530 MOUNTS Performance +

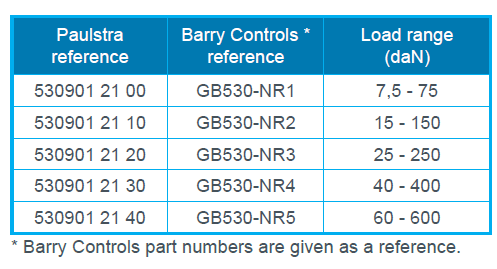

Rubber vibration isolator - GB 530 MOUNTS Specifications +

Operating characteristics

Temperature range :

-30° C to + 70°C

Weight : 3 - 4 kg
