Metal wire vibration isolators - MV70/MV71/MV72/MV73

Metal wire vibration isolators - MV70/MV71/MV72/MV73 Overview -

Metal wire vibration isolators - MV70/MV71/MV72/MV73

This series of metal bases is designed specifically for compressive and tensile loads, with built-in limit blocks.

Application Description:

Protect components, electronic devices, navigation equipment, control panels, testing equipment, etc. on carriers such as aircraft, road vehicles, and rail trains.
Metal wire vibration isolators - MV70/MV71/MV72/MV73 Advantage +
Metal wire vibration isolators - MV70/MV71/MV72/MV73 Performance +

Natural frequency: 15-25 Hz in axial and radial directions

High excitation at natural frequency:

MV70 : ± 0,3 mm

MV71 : ± 0,4 m

MV72 : ± 0,45 mm

MV73: ± 0.45 mm.

The maximum amplification factor is less than 4.

Operating temperature: -70 ° C to+300 ° C.

The structural strength can withstand a continuous acceleration of 10g under maximum load.

The internal buffer is designed for maximum load and continuous acceleration.

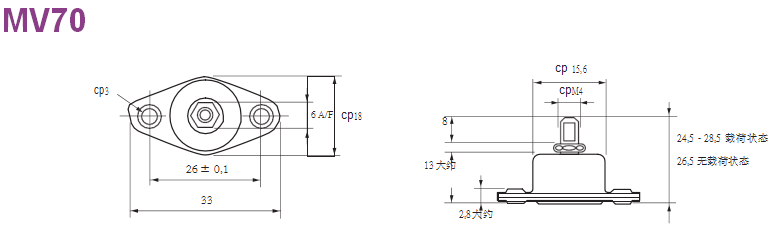

金属丝减震器-MV70/MV71/MV72/MV73(图1)

(1) Natural frequency under maximum/minimum load: refer to operating characteristics.

金属丝减震器-MV70/MV71/MV72/MV73(图2)

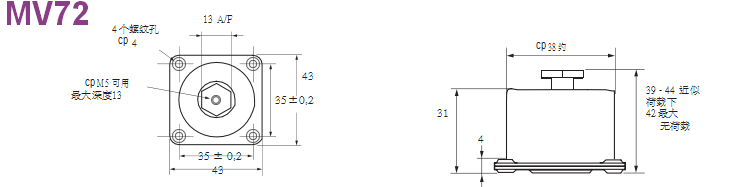

金属丝减震器-MV70/MV71/MV72/MV73(图3)

金属丝减震器-MV70/MV71/MV72/MV73(图4)
