Metal wire vibration isolator V-1H751/V1H752

Metal wire vibration isolator V-1H751/V1H752 Overview -

The structure of V1H751 and 752 consists of a pressed steel shell, base, and an alloy shaft. Its elastic material is a stainless steel wire pad; The surface of the steel part is sprayed.
Metal wire vibration isolator V-1H751/V1H752 Advantage +

V1H751 V1H752
Natural frequency: 15-25 Hz

The structure of V1H751 and 752 consists of a pressed steel shell, base, and an alloy shaft. Its elastic material is a stainless steel wire pad; The surface of the steel part is sprayed.

Application Description:

Under static axial compression load, the natural frequencies of V1H751 and 752 are 15-25Hz; the -11 and -12 versions are reinforced with radial washers and can absorb appropriate horizontal forces. So this type of base can be used for ship equipment, railway/road transportation, public works (engines, pumps, generator sets, pipeline engineering), or vibration damping supports that need to be fixed to ground machines.
Metal wire vibration isolator V-1H751/V1H752 Performance +

Metal wire vibration isolator V-1H751/V1H752 Specifications +

Size:

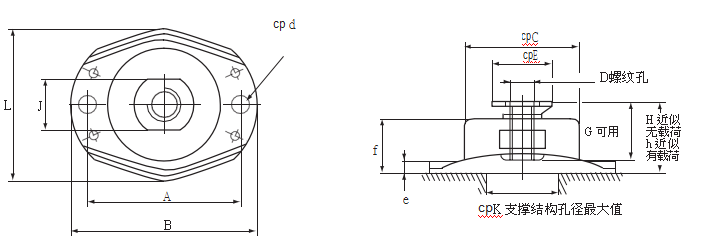

金属丝减震器-V1H751/V1H752(图1)

Model	A (mm)	B (mm)	C (mm)	D	E (mm)	G (mm)	H (mm)	J (mm)	K (mm)	L (mm)	d (mm)	e (mm)	f (mm)	h (mm)
V1H751	92*	110	69	M12	32	47	54	27	40	90	11*	5,5	40,5	50
V1H752	126	152	96	M20	41	51	60	36	60	124	15	7	45	56

Operating characteristics:

➤ Fixed frequency:

-Axial frequency of 15-25 Hz depends on the load.

-Radial frequency of 15-25 Hz depends on the load.

The maximum allowable excitation at natural frequency is+/-0.4 mm

The amplification factor of the resonant state is:<4

➤ Structural strength: For 751, it can withstand a maximum load of continuous 5g acceleration in the direction of compression; For 752, it is a continuous acceleration of 10 g.

➤ Operating temperature: -70 ° C to+300 ° C

➤ Weight: V1H751: 0.75 kg

V1H752 : 1.6 kg

Model	Static load(daN)	Maximum dynamic load (daN)			Upper installation screw
		Maximum dynamic load (daN)			Upper installation screw
		Compress	Stretch	Radial	Stretching length (mm)		Torque(N.m)
		Compress	Stretch	Radial	Minimum	Maximum	Torque(N.m)
V1H751-01	70 - 250	900	900	300	25	45	18
V1H751-11	70 - 250	900	900	800			40
V1H751-02	150 - 500	2000	1800	650			18
V1H751-12	150 - 500	2000	1800	1600			40
V1H752-01	300 - 1000	4000	3000	1000	35	50	50
V1H752-11	300 - 1000	4000	3000	3000	35	50	140
