首页 > Products > Air spring vibration isolator > ADS series air spring vibration isolator

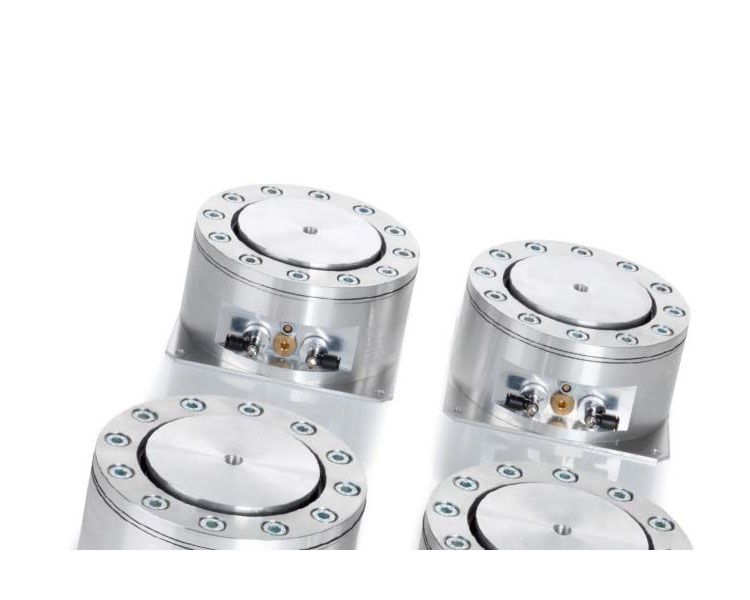

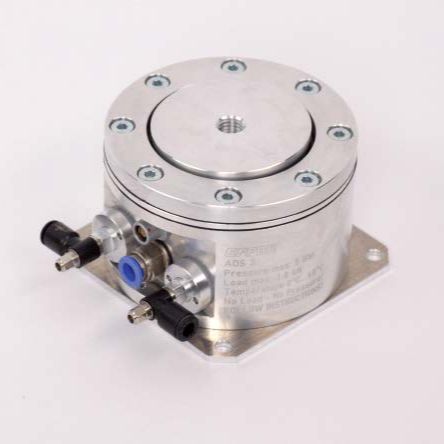

ADS-ICD air spring

ADS-ICD air spring

ADS-ICD air spring

ADS-ICD air spring

ADS-ICD air spring Overview -

The ADS-ICD air spring structure is based on a diaphragm air spring, with the housing, support plate, and bottom plate made of aluminum.
ADS-ICD air spring Advantage +

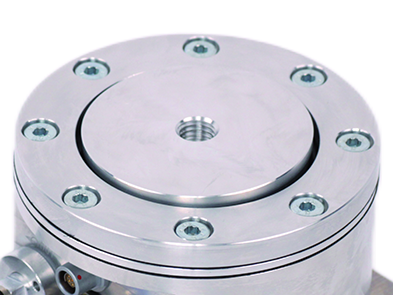

ADS-ICD structure

The diaphragm based air spring has an outer shell, support plate, and bottom plate made of aluminum.

Composition of ICD air spring system

➤ 4 air springs

-3 ADS main control air springs with sensors and control valves

-1 ADS controlled air spring without sensors and valves

➤ 1 control unit, 3-channel circuit board with USB interface

➤ Communication cable for the main control spring

➤ Pressure regulating valve (NW 4 module)

➤ Power adapter

Options

➤ Control unit: circuit board in plastic casing

➤ Connectors for control cables

➤ The filter and regulator assembly consists of a pressure regulator, pressure gauge, filter, and water separator

➤ Control cables: The length of 3 control cables meets customer requirements

➤ Air Level Control software

➤ USB cable

➤ Increase hoses and connectors according to the number of air springs

System functions

Air springs come with factory default configurations. Meanwhile, the following parameters can be changed through control software: reset accuracy, allowable deformation, response time, and average height. These parameters can be viewed, adjusted, and stored in each spring. Even after a power outage, these values will be retained. You can restore the default configuration by controlling the software.
ADS-ICD air spring Performance +

Control unit

Adjust parameters

➤ Reset accuracy:

-Roughly (± 0.5 mm)

-Accurate (± 0.1 mm)

-User defined (± 0.01-1 mm)

➤ Allowable deviation (deformation)

-Width (± 1.0 mm)

-Narrow (± 0.5 mm)

-User defined (± 0.01-1.5 mm)

➤ Response time

-Fast (10 ms)

-Slow (125 ms)

-User defined (5-125 ms)

➤ Working height

-Middle position (± 5 mm),

-Potentiometer adjustment

-Control software adjustment

Performance parameters:

➤ Load range 8-182 kN

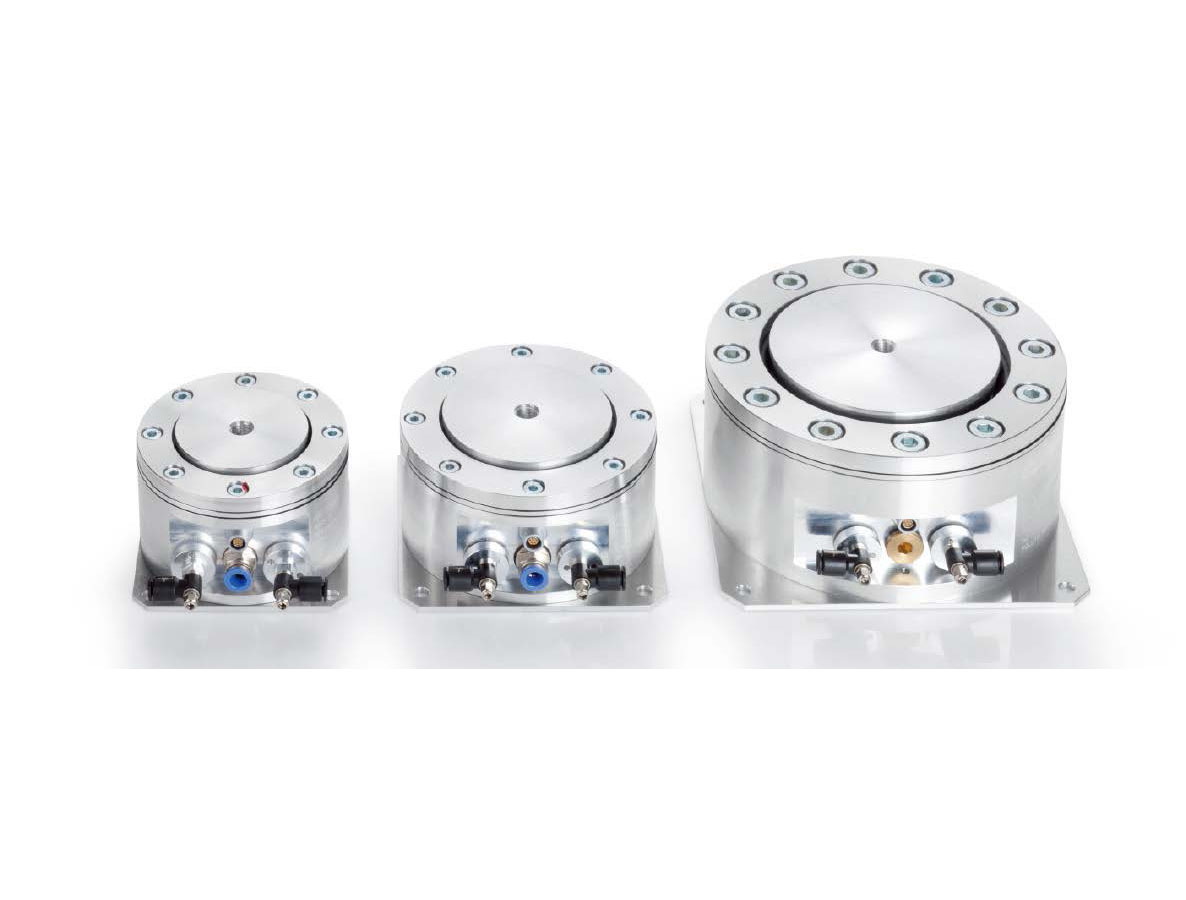

➤ Each model has two height options to choose from

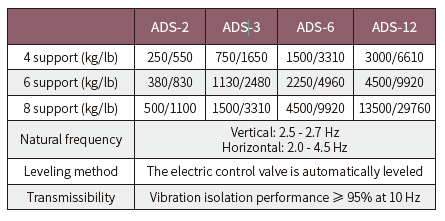

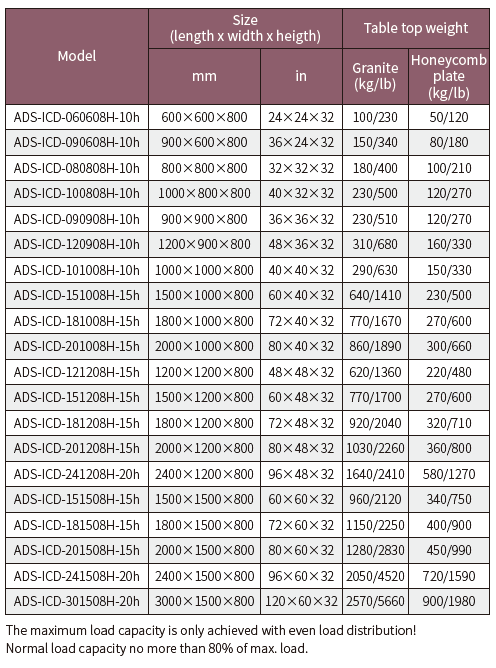

ADS-ICD air spring Specifications +
