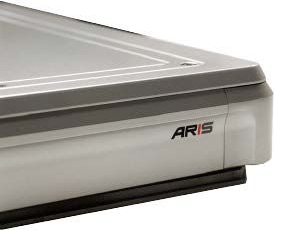

ARIS-TT desktop active isolator

ARIS-TT desktop active isolator Overview -

A lightweight and compact desktop active vibration isolation system that can counteract harmful vibrations from sensitive equipment. The simplified design allows it to seamlessly become a part of the workstation environment, and its direct composition does not require subsequent adjustments.

Application fields:

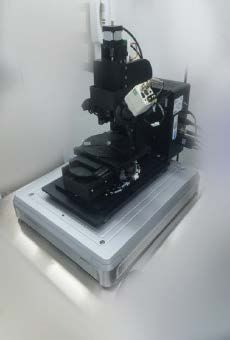

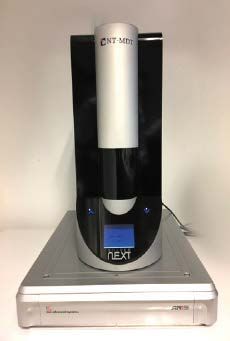

➤ Atomic Force Microscopy/AFM

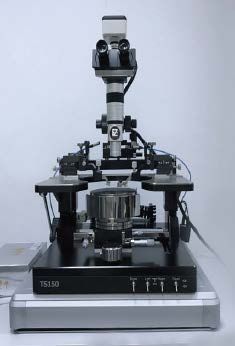

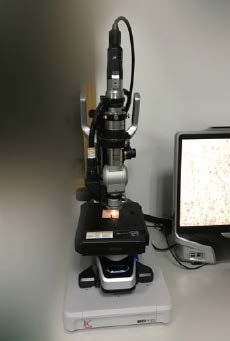

➤ High resolution optical microscope

➤ Contour analyzer, interferometer

➤ True cavity

➤ Optical System
ARIS-TT desktop active isolator Advantage +

Performance:
➤ 6 degrees of freedom

➤ Effective isolation frequency starts from 0.5Hz

➤ Decoupling structure (patent application pending)

➤ Variable damping (patent application pending)

➤ Built in artificial intelligence features

-Small size, light weight, and simple design

-Not using any piezoelectric components

The lifespan of the sensors and motors used in the K&S system is almost unlimited

➤ Significantly reduce the cost of service life

➤ Easy to install heavy equipment - no need for lifting tools and heavy structures

➤ High effective travel

➤ Effective bandwidth can be adjusted through software

➤ Remote control

-Built in real-time diagnostic tool

➤ Spectrum analyzer

➤ Oscilloscope

-Highly adjustable vibration isolation control - the system can be configured for any complex environmental condition

-Internal flexible architecture enables user customization
ARIS-TT desktop active isolator Performance +

Model	ArisTT20	ArisTT75I	ArisTT75	ArisTT75X	ArisTT100	ArisTT150	ArisTT180	ArisTT200
Size（W×D×H） (mm)	450×300×80	300×450×65	300×450×80	400×500×80	400×500×80	400×500×80	500×600×80	600×800×80
Load weight (kg)	5 - 20	15 - 75	15 - 75	15 - 75	40 - 100	70 - 150	80 - 180	90 - 200
Actuator force	Vertical: 50N; Horizontal: 25N
Active isolation frequency (Hz)	0.5 – 100Hz
Framework	MVIS - Multi layer vibration isolation structure
Degree of freedom	4 degree of freedom		6 degree of freedom

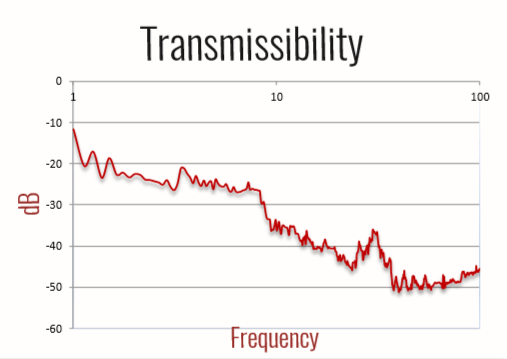

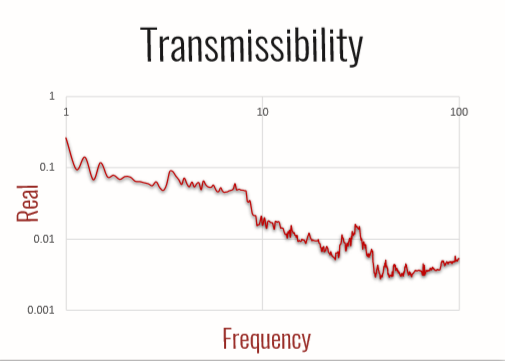

Vibration isolation performance	-8db at 1Hz
Vibration isolation performance	-20db at 2Hz
Stabilization time	≤ 0.1 seconds
Real time diagnostic tool	Built in real-time 2-channel oscilloscope, real-time 2-channel spectrum analyzer
Real time performance tuning	Real time control of all 6 degrees of freedom/remote access
Input power	AC 80-260V/50-60Hz
