S-U steel spring vibration isolator S-U13-4 to S-U21-4

S-U steel spring vibration isolator S-U13-4 to S-U21-4 Overview -

S-U13-4 to S-U21-4
Spring elements and damping spring elements ensure that the vibration caused by the equipment - the source of the vibration - is not transmitted to the environment (isolation of the vibration source).
S-U steel spring vibration isolator S-U13-4 to S-U21-4 Advantage +

Proper vibration isolation for small and medium-sized factories and machinery/damping of structural noise in machinery, components, aggregates, and buildings is becoming increasingly important for protecting human and material assets from vibration.

VICODA spring elements and damping spring elements ensure that vibrations caused by equipment - the source of vibration - are not transmitted to the environment (source isolation). Spring elements can also be used to isolate vibration systems to counteract vibrations caused by the environment (isolating the receiver). We turn off the Er spring element, regardless of whether it integrates CRD type damping coverage frequency between 2.5~5 Hz. All spring components can be equipped with additional viscoelastic dampers to meet the increased damping requirements.

Suitable for various application scenarios. They provide the best solution for vibration and structural noise isolation, such as:

➤ Fan or ventilation system

➤ Air conditioning system

➤ Pump or pumping system

➤ Electronic device measuring device

➤ Small and medium-sized power presses

The design of the spring element is as follows

➤ Same overall height in a series

➤ Within the high load range, between 90 and 72200N

➤ Frequency adjustable from 2.5Hz pressure and shape locking height (also available for stainless steel) (optional)

➤ High quality corrosion protection (CDP coated springs)

➤ Use the same size (optional)

➤ Structural noise damping (optional)

➤ CRD type damping for lifting device (optional)
S-U steel spring vibration isolator S-U13-4 to S-U21-4 Performance +

S-U13-4 至 S-U21-4
Type	Nom.load[kN]		Vertical stiffness	Natural frequency	Height[mm]
	Min.	Max.	[N/mm]		H0	Hn
	Min.	Max.	[N/mm]		H0	Fn Min	Fn Max
S-P13-4	0.355	2.600	60	2.4 - 6.5	117	111	74
S-P14-4	0.640	4.660	110	2.4 - 6.5			74
S-P15-4	0.815	5.945	140	2.4 - 6.5			74
S-P16-4	1.745	11.210	295	2.6 - 6.5			79
S-P17-4	3.390	20.630	575	2.6 - 6.5			81
S-P18-4	5.700	20.225	965	3.4 - 6.5			96
S-P19-4	7.360	32.320	1245	3.1 - 6.5			91
S-P20-4	9.310	40.900	1575	3.1 - 6.5			91
S-P21-4	11.960	48.480	2020	3.2 - 6.5			93
Max.weight：14 kg

Products

S-U steel spring vibration isolator S-U13-4 to S-U21-4

S-U steel spring vibration isolator S-U13-4 to S-U21-4 Overview -

S-U steel spring vibration isolator S-U13-4 to S-U21-4 Advantage +

S-U steel spring vibration isolator S-U13-4 to S-U21-4 Performance +

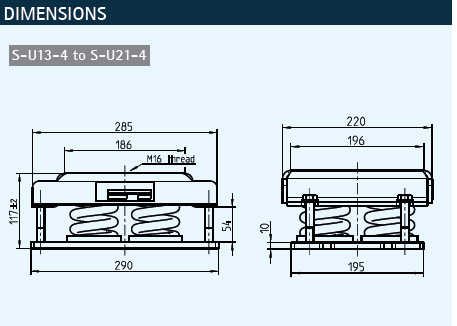

S-U steel spring vibration isolator S-U13-4 to S-U21-4 Specifications +
