HUTCHINSON shock absorber EVIDGOM, due to its load/displacement curve having a clear inflection point, can be designed to exhibit greater damping than static deformation. The inherent damping of elastomers possesses the ability to absorb energy, offering significant advantages over metal spring shock absorbers. It exhibits very high axial elasticity, a low natural frequency (<7Hz), and effectively cushions impacts and unexpected overloads.

The EVIDGOM® stent is a highly flexible elastic support formed by two interconnected conical elastomers at the base.

3 types:

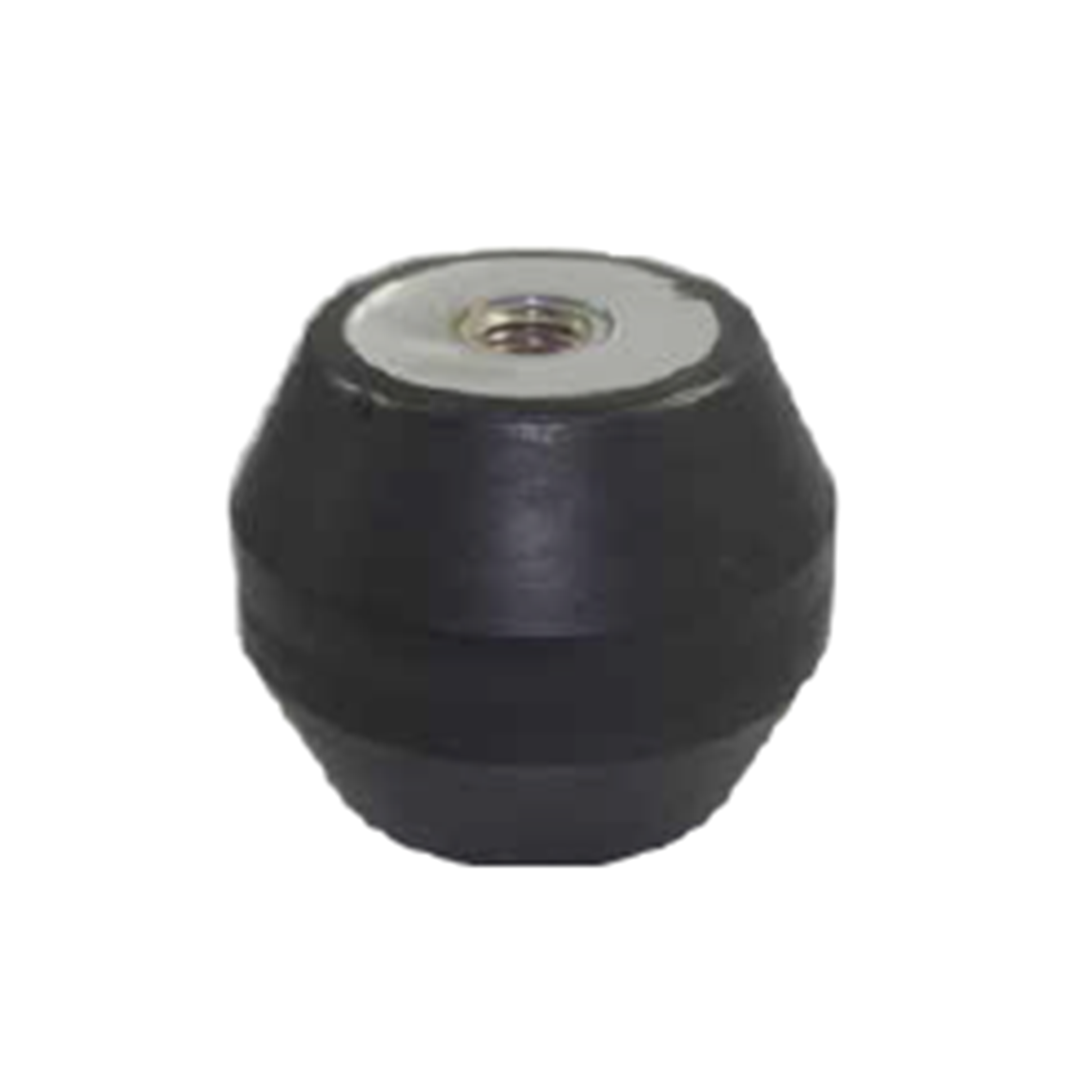

(1) Pure rubber product EVIDGOM®

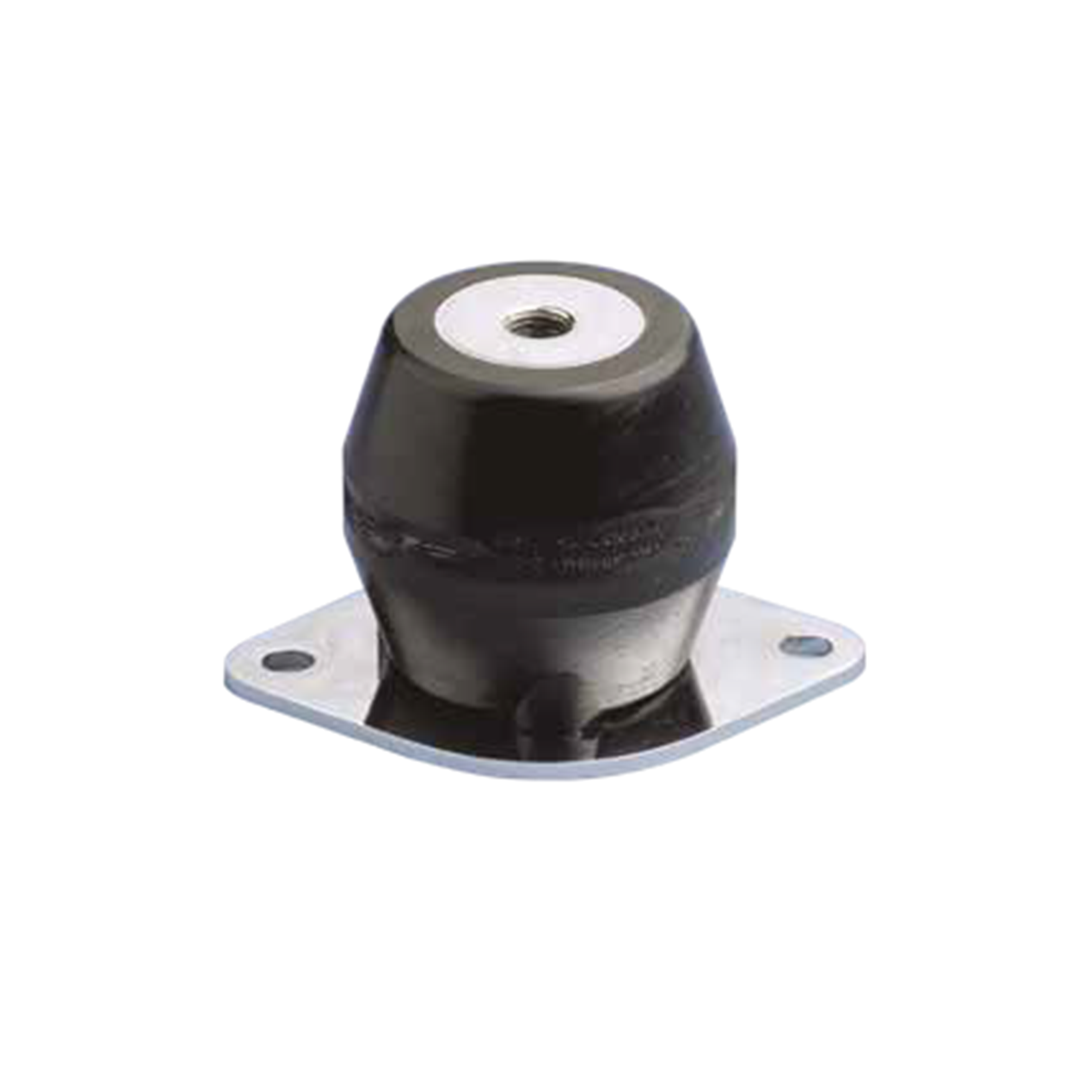

(2) EVIDGOM® vulcanized together with the mounting base

(3) EVIDGOM® with diamond or square mounting base

Application Scenario:

(1) Market: Mining

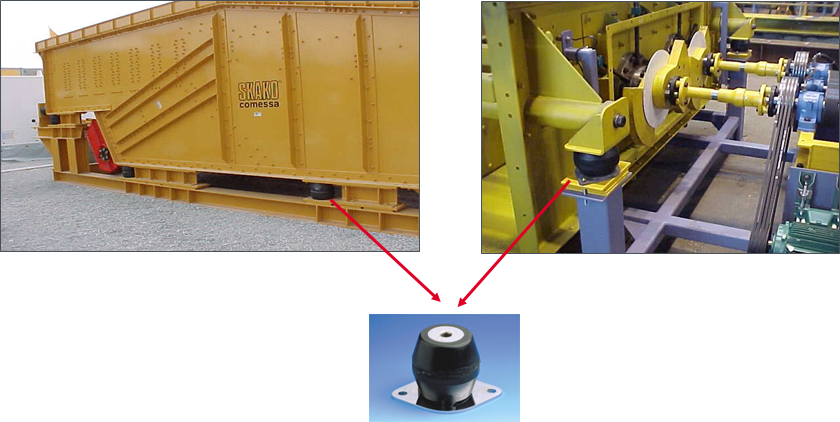

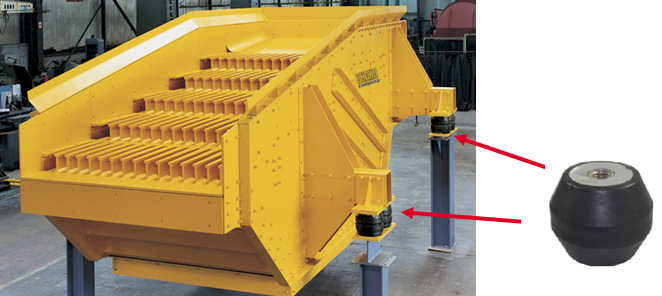

Application: Vibrating screen

(2) Market: Mining

Application: Separation equipment

(3) Market: General industry

Application: Water treatment equipment
Rubber vibtation isolator - EVIDGOM Advantage +
As the load/deflection curve has a point of inflection, a suspension may be designed to have a sub-tangent greater than the static deflection.

The elastomer used provides intrinsic damping with a corresponding ability to absorb energy which gives appreciable advantages over metallic springs.

Recommendations

The selection of a low natural frequency (large deflection) must not be allowed to endanger the stability of the suspension (tall equipment).

In certain cases (use under maximum load) the use of side stops is recommended.

Rubber vibtation isolator - EVIDGOM Performance +

Operation:

The EVIDGOM® stent possesses the following design features:

➤ Very high axial elasticity

➤ Low natural frequency (less than 7Hz)

➤ Effectively buffer shocks and unexpected overloads

Technical Features:

➤ 17 different sizes and specifications

➤ 18 different load-bearing models

➤ Small load capacity: 5 kg

➤ Large load capacity: 14000 kg

➤ Natural frequency: 2.5 - 7 Hz

Operational characteristics:

Model	Standard static load (daN)	Deformation amount ±15% (mm)	cp A (After loading) (mm)	Height B (mm)


810002	5 - 15	5	40	25
810003	10 - 40	11	50	55
810005	20 - 80	14	63	80
810780	15 - 60	10	80	40
810766	25 - 100	15	105	70
810768	35 - 150	18	124	90
810769	100 - 400	20	136	90
810012	100 - 390	23	134	110
810773	150 - 600	24	175	120

Model	Standard static load (daN)	Deformation amount ±15% (mm)	cp A (After loading) (mm)	Height B (mm)


810784	200 - 800	26	170	140
810779	200 - 800	16	175	90
810770	200 - 800	10	166	56
810775	325 - 1300	30	175	150
810776	500 - 2000	35	240	180
810733Δ60	1250 - 5000	50	345	230
810733Δ75	2000 - 8000	50	345	230
810736Δ60	2250 - 9000	60	500	290
810736Δ75	3500 - 14000	60	500	290

Rubber vibtation isolator - EVIDGOM(图1)

Rubber vibtation isolator - EVIDGOM Specifications +

Size：

Rubber vibtation isolator - EVIDGOM(图1)

cp A (mm)	B (mm)	EVIDGOM Model					cp C1 （mm)	cp C2 （mm)	cp C3 （mm)	cp W （mm)	T	P （mm)
cp A (mm)	B (mm)	Rubber	Example	With attachment	Example	C	cp C1 （mm)	cp C2 （mm)	cp C3 （mm)	cp W （mm)	T	P （mm)
34	25	810002	1	—	—	—	8	8	—	—	—	—
40	55	810003	1	—	—	—	14	14	—	—	—	—
50	70	810005	1	—	—	—	14	14	—	—	—	—
60	40	—	—	810780	2	M10	—	25	25	40	M6	6
85	70	810006	1	810766	2	M16	20	30	30	60	M8	8
95	90	810008	1	810768	2	M16	20	30	30	60	M8	8
108	90	810009	1	810769	2	M16	20	30	34	70	M10	10
120	110	810012	1	—	—	—	20	30	—	—	—	—
140	120	810013	1	810733	2	M16	25	40	35	70	M10	10
125	140	810014	1	810784	2	M16	25	30	25	70	M10	10
140	90	810019	1	810779	2	M16	28	12	28	70	M10	10
140	56	810020	1	810770	2	M16	30	30	30	70	M10	10
155	150	810015	1	810775	2	M16	25	30	30	90	M14 6	14
188	180	810016	1	810776	2	M24	40	40	40	90	XM24	14
250	230	—	—	810733	3	—	70	70	—	150	8XM24	40
350	290	—	—	810736	3	—	85	85	—	196	—	40

Bottom mounting surface：

Rubber vibtation isolator - EVIDGOM(图2)

EVIDGOM Product model	Installation steps reference	Illustration	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)
EVIDGOM Product model	Installation steps reference	Illustration	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)
810780	337566	a	98/102	8,2	117	65	5
810766	337567	a	124/128	10,2	158	110	5
810768	337567	a	124/128	10,2	158	110	5
810769	337568	a	178/182	10,2	214	150	6
810773	337568	a	178/182	10,2	214	150	6
810784	337568	a	178/182	10,2	214	150	6
810779	337568	a	178/182	10,2	214	150	6
810770	337568	a	178/182	10,2	214	150	6
810775	337569	b	170	10,5	200	-	8
810776	337569	b	170	10,5	200	-	8
