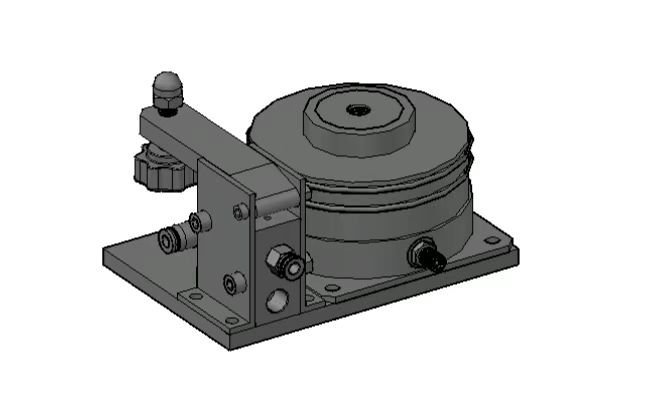

SLM-MD air spring

SLM-MD air spring

SLM-MD air spring

SLM-MD air spring Overview -

Structure

Elastomer-metal combination with screwable base plate, gas chamber made of elastomeric material, reinforced with steel rings, 10 sizes.
SLM-MD air spring Advantage +
SLM-MD air spring Performance +

• Low-frequency active or passive damping

• The vertical and horizontal stiffness is about 1:1

• Vibration isolation

• Impact absorption

• Structural soundproofing

• No anchoring is required

• It can be operated without inflation

• Load range: 0.2 – 100 kN

• Natural frequency (static) 3 – 5 Hz

• Natural frequency (static) is not inflated at 8 Hz

Leveling Range:

±5 - 6 mm, barometric control

Options:

Automatic leveling control:

• Mechanical-pneumatic version

• Electric-pneumatic version

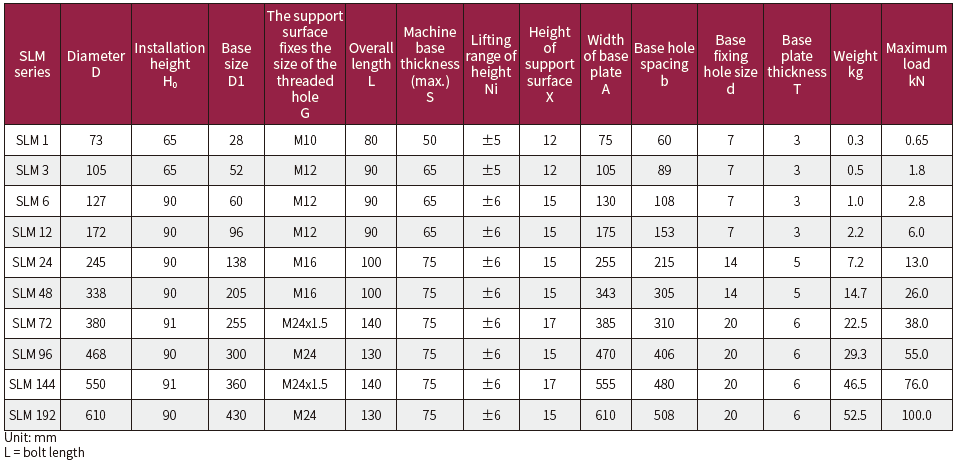

SLM-MD air spring Specifications +
