SLM-IC electronic control air spring

SLM-IC electronic control air spring 的概况 -

The SLM-B IC system uses the same controller as the ADS series, providing automatic pressure monitoring and additional control parameters.

➤ Natural frequency: 3-5 Hz

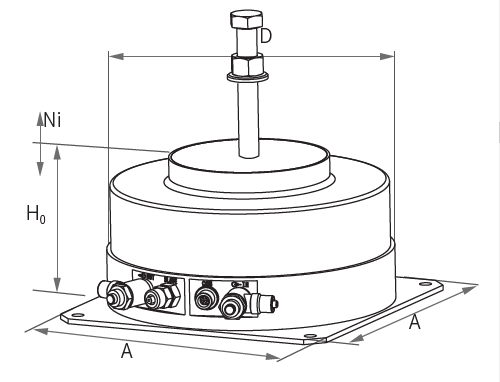

➤ SLM-IC structure

➤ Rubber metal combination with bolted bottom plate.
SLM-IC electronic control air spring 的优势 +

System functions
Air springs come with factory default configurations. Meanwhile, the following parameters can be changed through control software: reset accuracy, allowable deformation, response time, and average height. These parameters can be viewed, adjusted, and permanently stored in each spring. Even after a power outage, these values will be retained. You can restore the default configuration by controlling the software.
SLM-IC electronic control air spring 的性能 +

Composition of IC air spring system
➤ 4 air springs

-3 SLM main control air springs with sensors and control valves

-1 SLM controlled air spring without sensors and valves

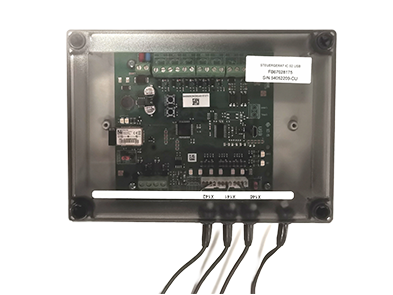

➤ 1 control unit, 3-channel circuit board with USB interface

➤ Communication cable for the main control spring

➤ Pressure regulating valve (NW 4 module)

➤ Power adapter

Supply requirements

➤ Compressed air:

-Working pressure 1-6 bar, dry, dust-free, oil-free

-Optional Filter Regulator (FRK)

➤ Control module:

-Circuit board size 160 x 100 x 15mm

-Control module housing: dimensions 225 x 200 x 40 mm

➤ Power Supply:

-DC power supply: 24 V ‒ 1A

-AC power adapter: 230 V, 50 Hz, 130 W, output 24 V, 1A, DC

➤ PC interface: USB to RS-232

➤ Air Level Control software

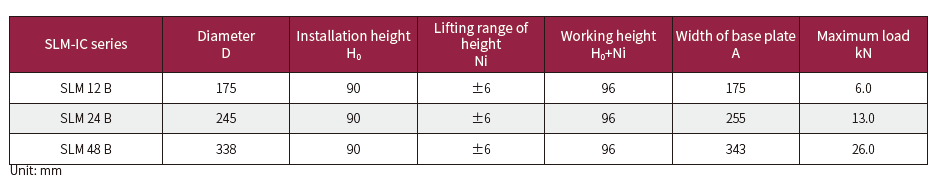

SLM-IC electronic control air spring 的指标 +
