S-U steel spring vibration isolator S-U13-2 to S-U21-2

S-U steel spring vibration isolator S-U13-2 to S-U21-2的概况 -

S-U13-2 to S-U21-2
Spring elements and damping spring elements ensure that the vibration caused by the equipment - the source of the vibration - is not transmitted to the environment (isolation of the vibration source).

Suitable for various application scenarios. They provide the best solution for vibration and structural noise isolation, such as:

➤ Fan or ventilation system

➤ Air conditioning system

➤ Pump or pumping system

➤ Electronic device measuring device

➤ Small and medium-sized power presses
S-U steel spring vibration isolator S-U13-2 to S-U21-2的优势 +

Proper vibration isolation for small and medium-sized factories and machinery/damping of structural noise in machinery, components, aggregates, and buildings is becoming increasingly important for protecting human and material assets from vibration.

VICODA spring elements and damping spring elements ensure that vibrations caused by equipment - the source of vibration - are not transmitted to the environment (source isolation). Spring elements can also be used to isolate vibration systems to counteract vibrations caused by the environment (isolating the receiver). We turn off the Er spring element, regardless of whether it integrates CRD type damping coverage frequency between 2.5~5 Hz. All spring components can be equipped with additional viscoelastic dampers to meet the increased damping requirements.
S-U steel spring vibration isolator S-U13-2 to S-U21-2的性能 +

The design of the spring element is as follows
➤ Same overall height in a series

➤ Within the high load range, between 90 and 72200N

➤ Frequency adjustable from 2.5Hz pressure and shape locking height (also available for stainless steel) (optional)

➤ High quality corrosion protection (CDP coated springs)

➤ Use the same size (optional)

➤ Structural noise damping (optional)

➤ CRD type damping for lifting device (optional)

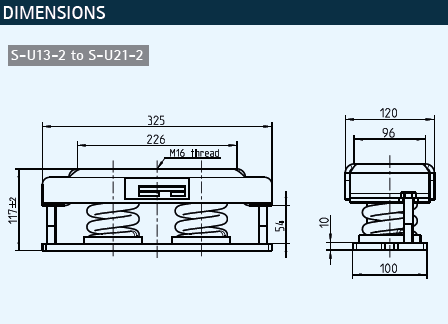

S-U13-2 至 S-U21-2
Type	Nom.ad[kN]		Vertical stiffness	Natural frequency	Height[mm]
	Min.	Max.	[Newton/millimeter]		H0	Hn
	Min.	Max.	[Newton/millimeter]		H0	Fn Min	Fn Max
S-U13-2	0.180	1.300	30	2.4 - 6.5	117	111	74
S-U14-2	0.320	2.330	54	2.4 - 6.5			74
S-U15-2	0.410	2.970	70	2.4 - 6.5			74
S-U16-2	0.870	5.585	147	2.6 - 6.5			79
S-U17-2	1.690	10.330	286	2.6 - 6.5			81
S-U18-2	2.835	10.120	482	3.4 - 6.5			96
S-U19-2	3.655	16.145	622	3.1 - 6.5			91
S-U20-2	4.625	20.435	786	3.1 - 6.5			91
S-U21-2	5.940	24.240	1010	3.2 - 6.5			93
Max.weight：8 kg
