MSN-D damping vibration isolator

MSN-D damping vibration isolator

MSN-D damping vibration isolator的概况 -

The MSN-D damping vibration isolator consists of a metal cover and damping, which are fastened together by threads.

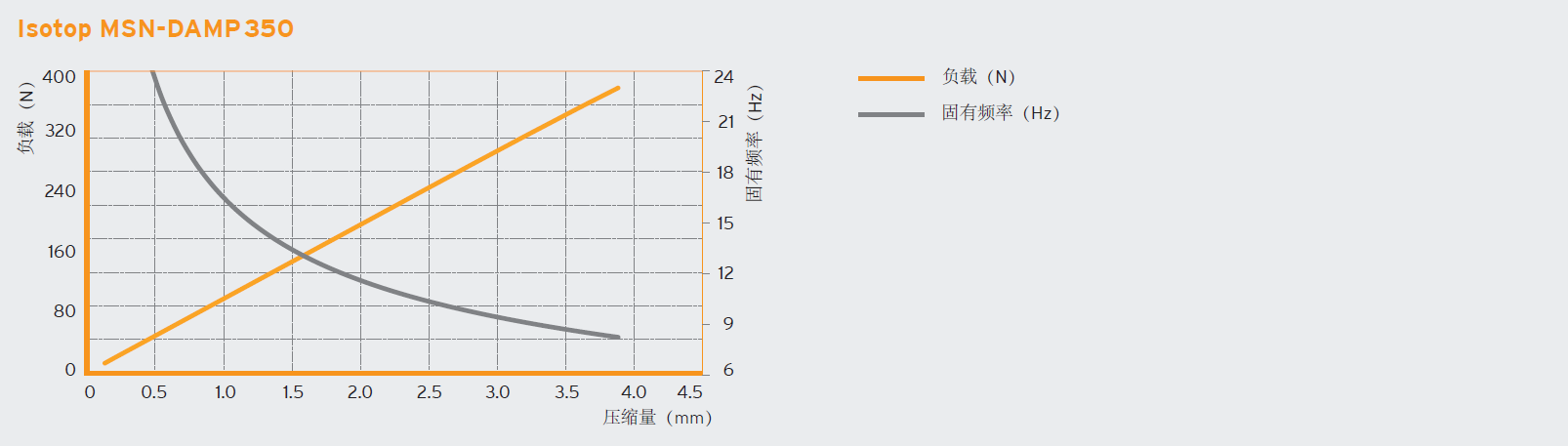

The natural frequency (resonance frequency) of Isotop @ MSN-DAMP vibration isolator is approximately 11Hz, depending on the load level. Mainly used as a support structure for compact components and assemblies.

Application scope:

Small compressors, compact fans, small heat pumps, compact pumps, and small cooling equipment.
MSN-D damping vibration isolator的优势 +

➤ Extremely small structural height
➤ Boltable polyurethane vibration isolator

➤ Due to its highly unified structure, it can be replaced with each other

➤ Can be easily integrated into existing systems
MSN-D damping vibration isolator的性能 +

➤ A vibration isolator using Sylomer/Sylodyn structure

➤ Bolt with M-8 thread

➤ Cathodic impregnation coating (KTL)

MSN-D damping vibration isolator的指标 +
