DZE-BL damping vibration isolator group

DZE-BL damping vibration isolator group的概况 -

The DZE-BL damping vibration isolator group is a stainless steel tensile isolation pad composed of multiple parts, using two different damping materials made of Sylodamp and Sylodayn. This component can be produced according to actual needs based on load and interference frequency, with a resonance frequency of up to approximately 7.5Hz.

Its application range is very wide, including diesel generators, large compressors, large pumps, fast running rotary engines, central heating stations, backup generators, and elastic support structures for maritime equipment.
DZE-BL damping vibration isolator group的优势 +

➤ Different combinations of springs and vibration isolators make it perfectly suitable for various target devices
➤ Using pre installed components for easy installation

➤ No risk of rupture, especially suitable for narrow and long devices as well as mobile applications

➤ Long service life

➤ Low natural frequency

➤ Low structural height

➤ Good corrosion resistance
DZE-BL damping vibration isolator group的性能 +

➤ Tensile compression element with no risk of rupture, using two different damping materials made of Sylodamp and Sylodyn

➤ Machine elastic support structure

➤ Vibration isolation

➤ Resonance frequency up to 7.5Hz

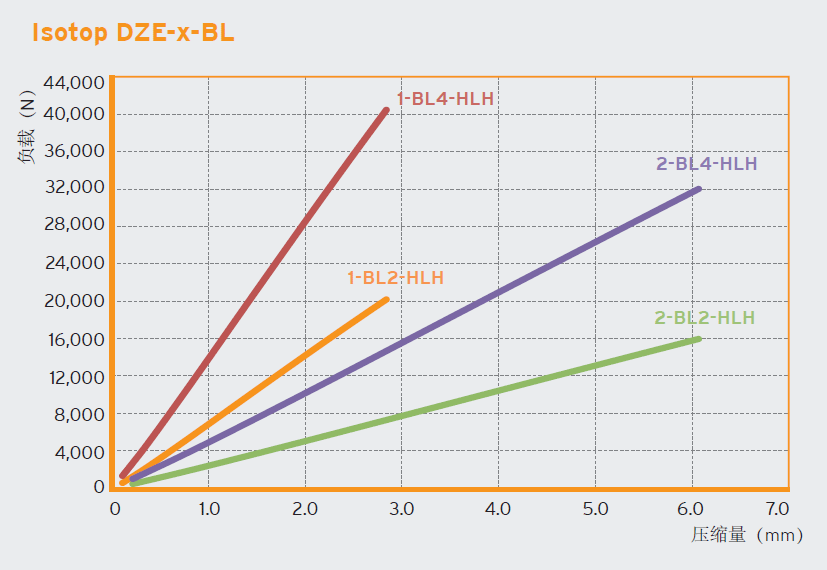

Mode;	Type	Maximum Load		Natural frequency (maximum load)
Mode;	Type	kg	N	Hz
Isotop DZE-1-BL2-HLH-SP5	Single layer	2,065	20,258	11.5
Isotop DZE-1-BL4-HLH-SP5	Single layer	4,135	40,564	11.5
Isotop DZE-2-BL2-HLH-SP5	Double layers	1,635	16,039	7.7
Isotop DZE-2-BL4-HLH-SP5	Double layers	3,270	32,079	7.7
