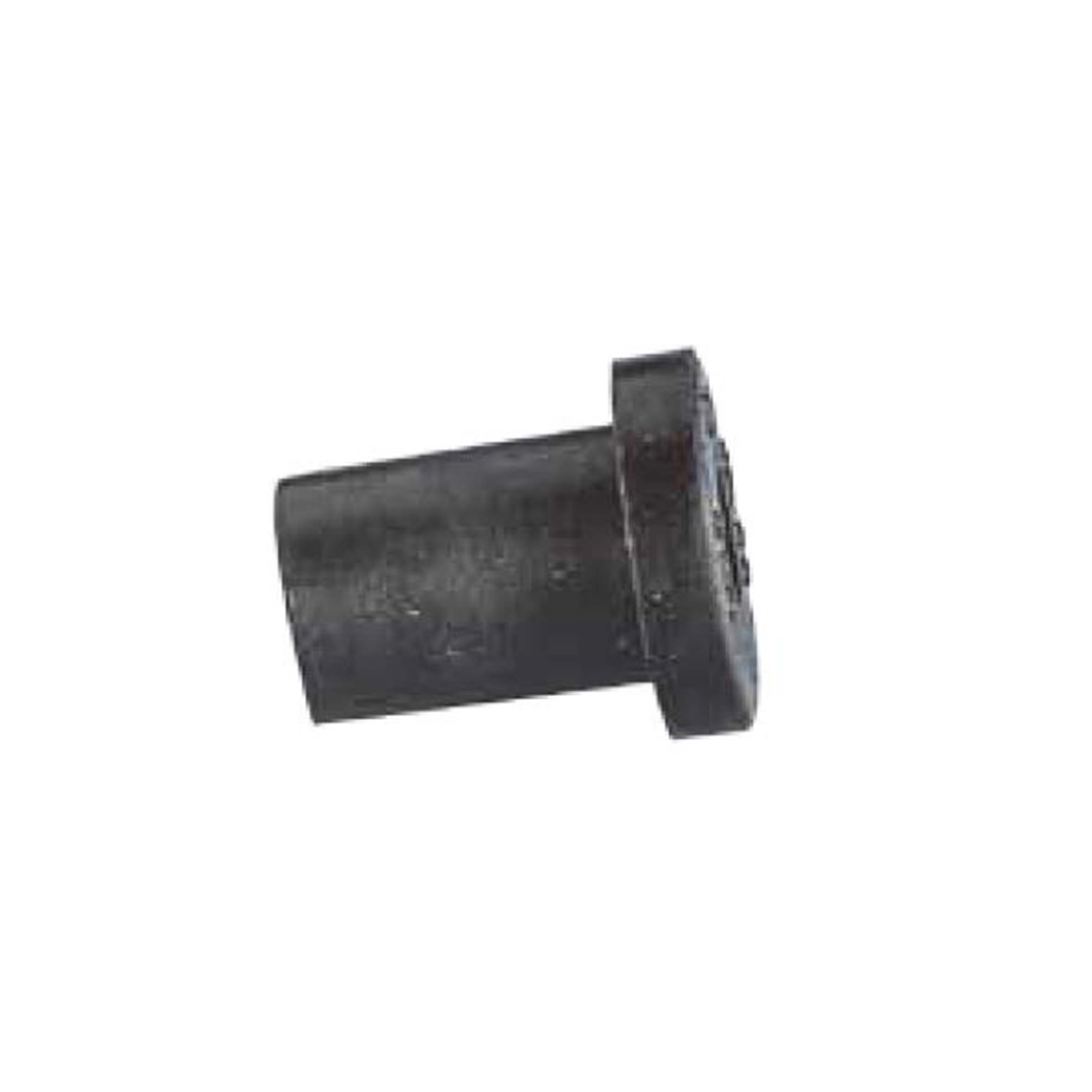

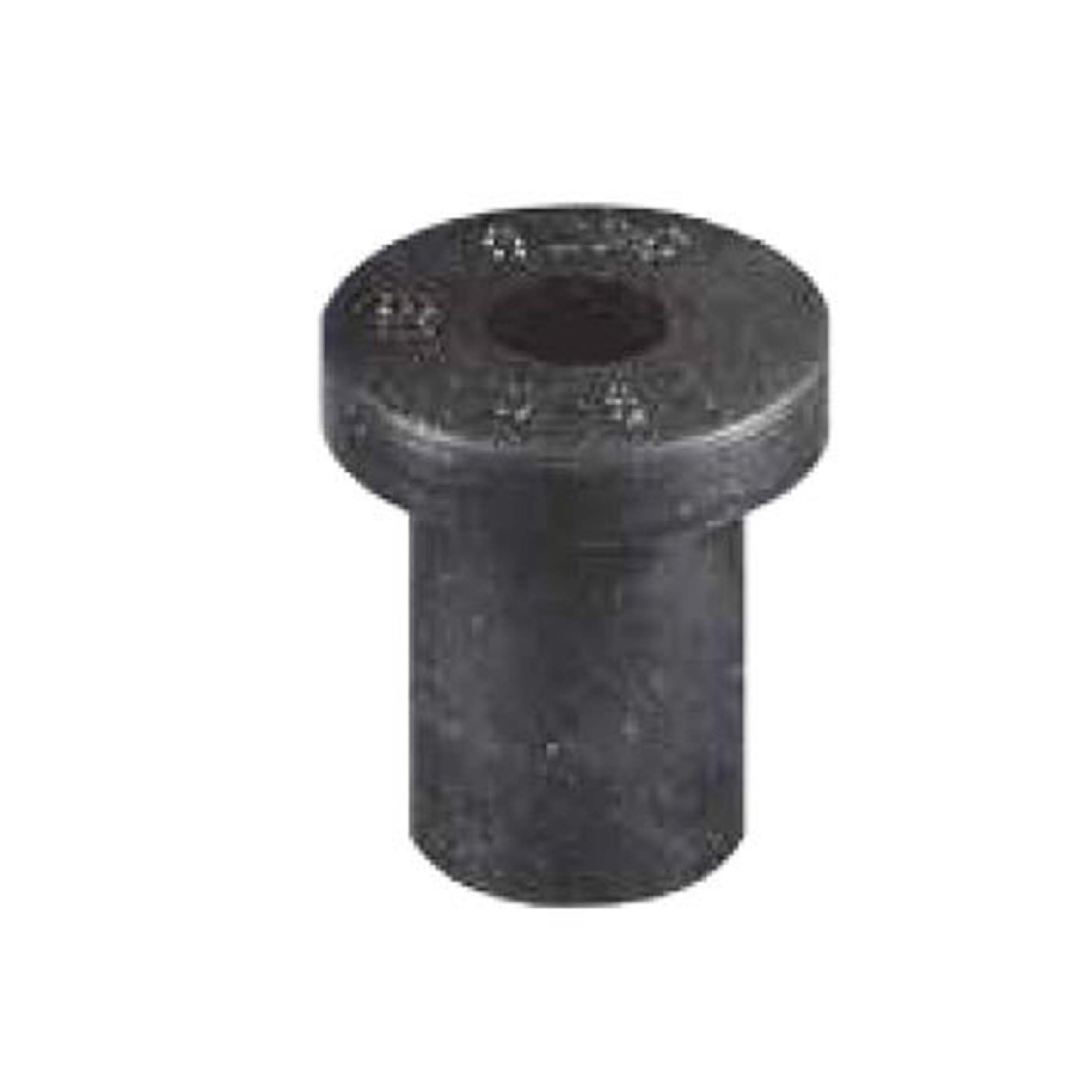

Rubber vibration isolator FLEX-LOC

Rubber vibration isolator FLEX-LOC

Rubber vibration isolator FLEX-LOC

Rubber vibration isolator FLEX-LOC

Rubber vibration isolator FLEX-LOC的概况 -

A flexible fixing resistant to oils, the majority of solvents and ageing.

APPLICATIONS

FLEX-LOC are suitable for the fixing of sheets, frameworks, engines, ventilators, electronic equipment,

computers, etc.

They have, moreover, a function of insulation against the structure borne noises, unlike other fasteners.
Rubber vibration isolator FLEX-LOC的优势 +

➤ 80% reduction at 150 Hz of vibrational energy transmitted from normal structural frequencies.

➤ Simple and economical.

➤ Simple to fix.

➤ Light weight.
Rubber vibration isolator FLEX-LOC的性能 +

The design of the FLEX-LOC mount gives the following basic characteristics :
➤the rubber works in :
- compression (axial);

- shear (radial);

- compression/shear according to the fixing method.

Rubber vibration isolator FLEX-LOC的指标 +

Technical Specifications:

Size:

橡胶减震器 FLEX-LOC(图1)

Paulstra Model	Barry Controls* Model	Nut	cp A (mm)	cp B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
Paulstra Model	Barry Controls* Model	Nut	cp A (mm)	cp B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
530909 03	Q3	M3	9	7,2	3,4	9	2,5	8
530909 04	Q4	M4	12	9,3	4,4	11,5	3	10,5
530909 05	Q5	M5	15	10,2	5,4	14,5	3,5	13
530909 06	Q6	M6	18	12,7	6,4	17	4	15
530909 07	Q8	M8	24	16,5	8,4	22	5	19,5

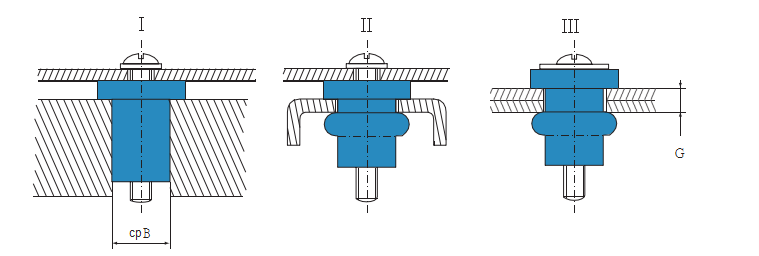

橡胶减震器 FLEX-LOC(图2)

Paulstra Model	Barry Controls* Model	Isolation hole cpB (mm)	Chassis thickness G (mm)	Torque range		Static load (daN)
				Torque range		Static load (daN)
				I (Nm)	II or III (Nm)	I	II or III
						I	II or III
						Compression shear	Compress	Crop
530909 03	Q3	7,2-7,5	0,6-2,5	0,5	0,4	1	5	2,5
530909 04	Q4	9,3-9,6	0,8-3,3	0,6	0,5	1	7	3,5
530909 05	Q5	10,2-10,5	0,8-4,3	1,0	0,6	1,5	10	5
530909 06	Q6	12,7-13,0	1,5-5,0	3,5	0,9	3	14	7
530909 07	Q8	16,5-16,8	1,5-6,5	4,0	1,8	5	28	14
