Elastic coupling - Straflex

Elastic coupling - Straflex

Elastic coupling - Straflex

Elastic coupling - Straflex

Elastic coupling - Straflex的概况 -

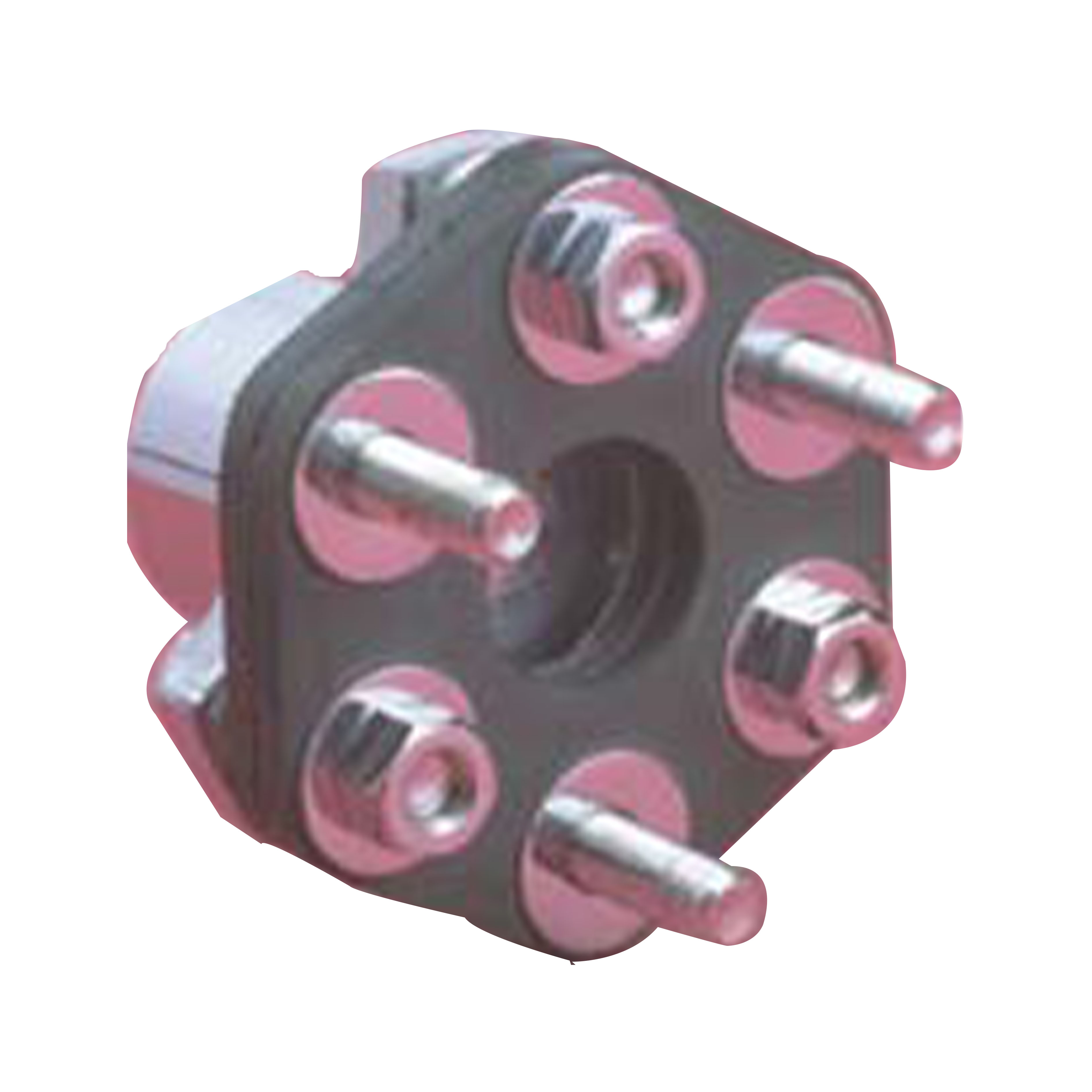

Flexible element

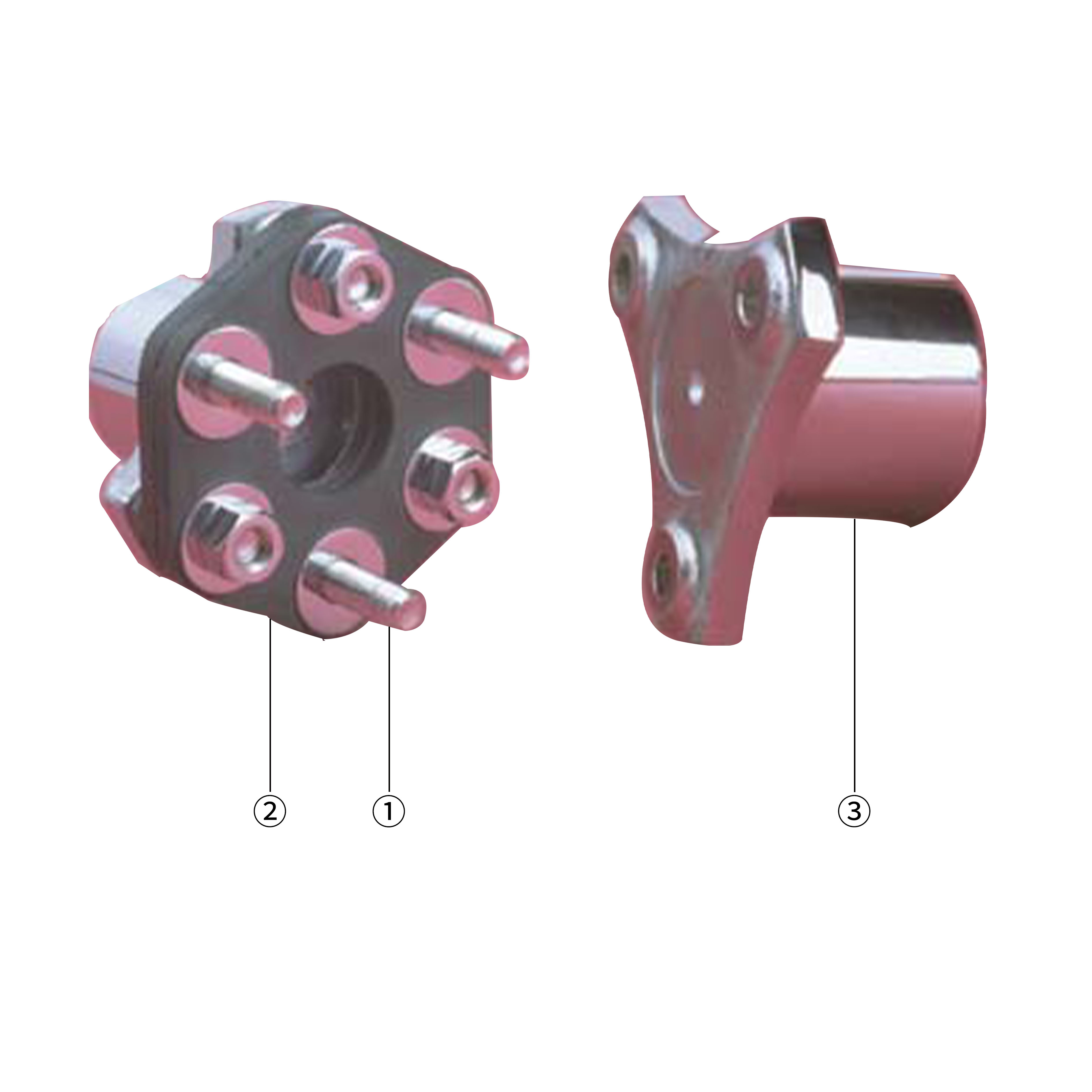

① Metallic bobbins linked together by rayon fibres.

② The whole unit ① is potted in natural rubber and is hexagonal.

Flange

③ Forged steel specially bored to accommodate the separate hub.
Elastic coupling - Straflex的优势 +
In addition to the characteristics described above, the separate hub used in conjunction with the
STRAFLEX coupling provides the advantage: ready to assemble without machining.

Advantages

Reduced size.

Simplified axial positionning.

Easy to assemble and disassemble.

Reduction of costs by simplifying the machining required for the shafts and flanges.

Recommendation

The reinforced textile structure means that it has a low tolerance to irregularities in the torque.
Elastic coupling - Straflex的性能 +

Elastic coupling - Straflex的指标 +

尺寸

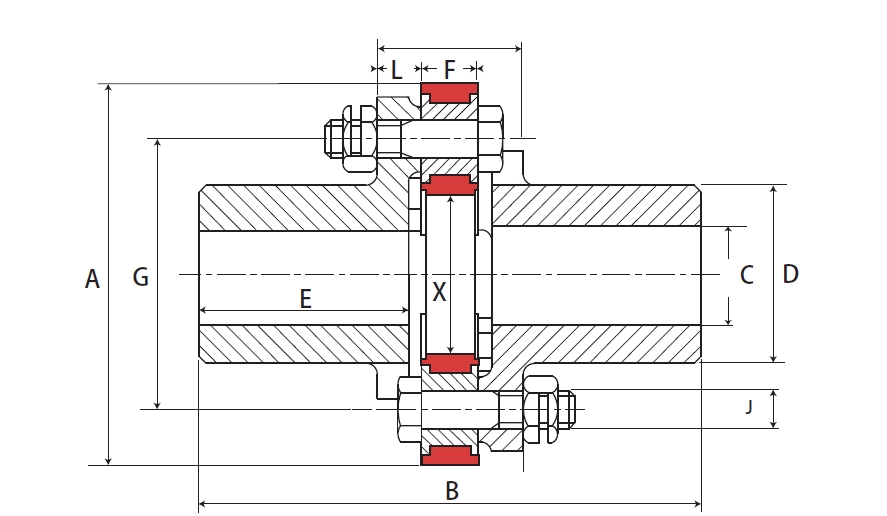

弹性联轴器-Straflex(图1)

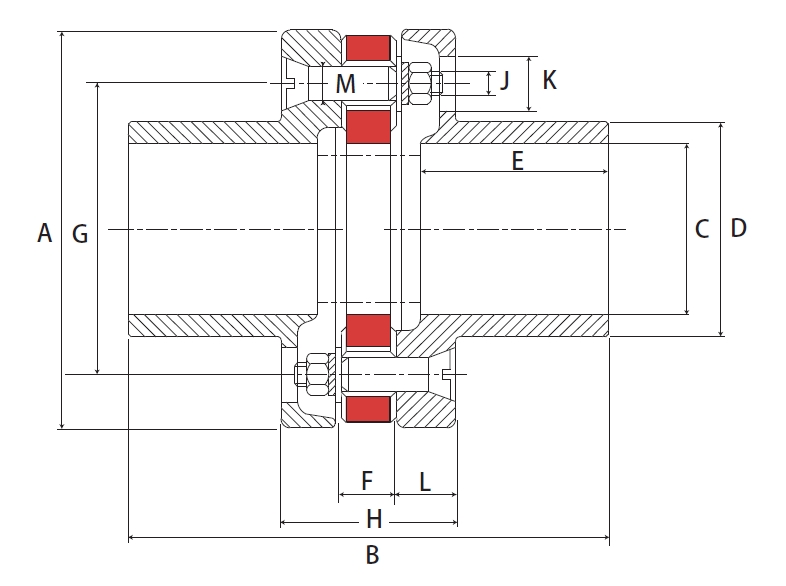

弹性联轴器-Straflex(图2)

额定扭矩 N.m	最大扭矩 N.m	最大转速 rpm	孔径C mm		A mm	B mm	D mm	E mm	产品型号	F mm	G mm	H mm	J mm	K mm	L mm	M mm	X mm	重量 kg
额定扭矩 N.m	最大扭矩 N.m	最大转速 rpm	min	max	A mm	B mm	D mm	E mm	产品型号	F mm	G mm	H mm	J mm	K mm	L mm	M mm	X mm	重量 kg
50	100	6000	-	30	78	80	43	32	635100	12	50	32	-	-	8	7.8	20	1.3
100	200	5500	-	30	94	115	42	40	635301	15	65	37	10	-	11	-	28	1.6
200	400	5000	-	40	120	158	56	66	635302	18	85	46	12	-	14	-	40	3
400	800	4500	-	48	140	171	68	70	635303	21	100	55	14	-	17	-	44	5.5
800	1600	3500	-	60	178	222	90	93	635304	26	132	68	16	-	21	-	66	12
1600	3200	2800	-	100	232	280	126	110	635305	32	170	102	14	32	35	20	86	36
3200	6400	2400	-	110	268	340	142	123	635306	42	190	130	16	37	44	24	94	50
6000	12000	2000	-	145	330	424	184	160	635307	48	240	136	16	37	44	24	120	97
