Elastic coupling Miniflex

Elastic coupling Miniflex

Elastic coupling Miniflex的概况 -

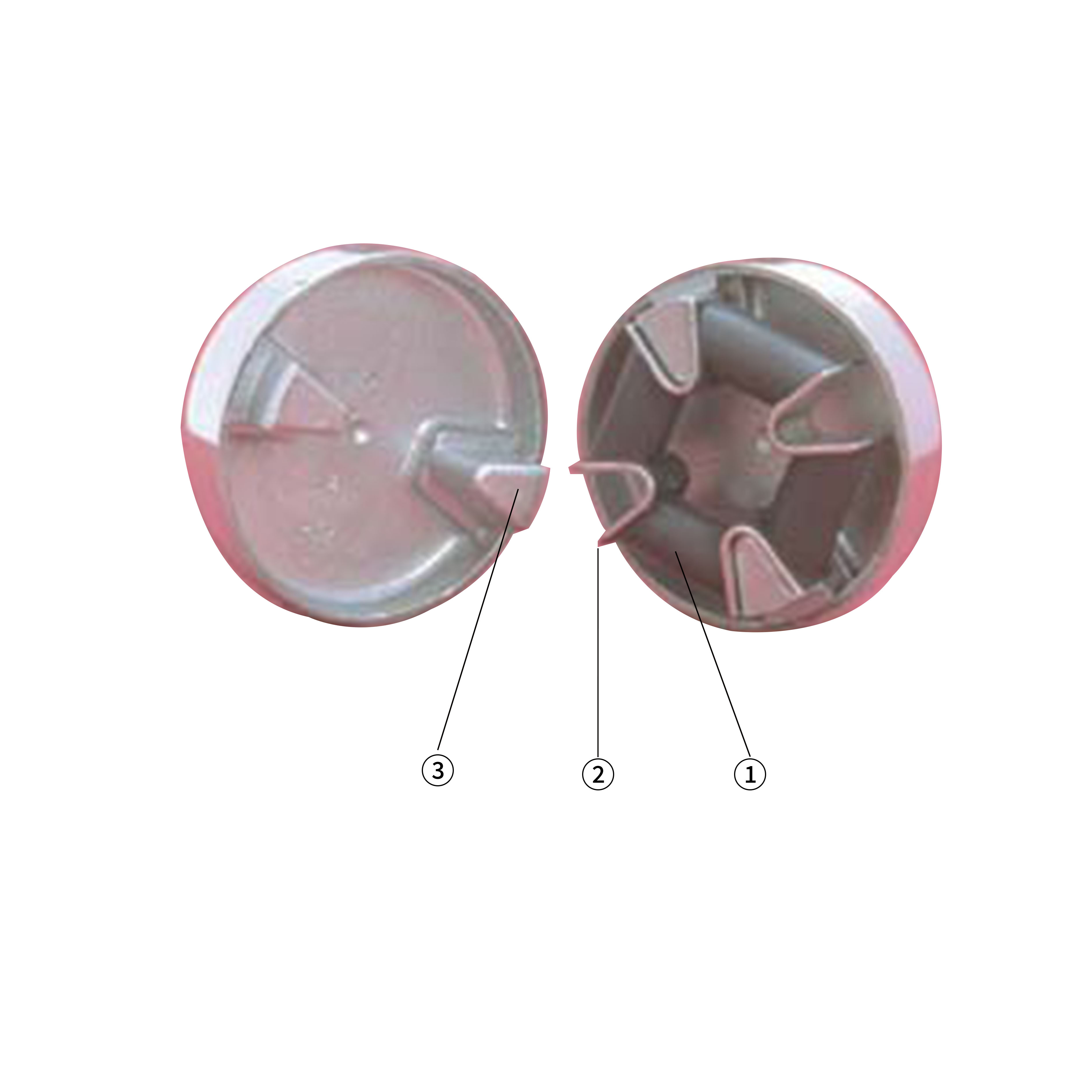

Flexible element
① Natural rubber block bonded to;

② V-shaped metal armatures.

Flange : aluminium or cast-iron :
③ DRIVE-SEGMENT
Elastic coupling Miniflex的优势 +
The MINIFLEX coupling is designed with the following features :

push fit assembly;

compact, smooth cylindrical shape without protrusions;

the flexible element is precompressed during assembly, which extends the range of operating conditions where the rubber is not subject to tension.

Advantages

Highly effective attenuation of cyclic irregularities and peaks in the torque.

Exceptionally long-life ensured by precompressing the flexible element.

Tolerance to large misalignment: avoids the need for precise alignment of the machines to be coupled.

Recommendation

It is recommended that the coupling should not be subjected to axial tension which might cause the flexible element to slip from the drive segment on the flange.
Elastic coupling Miniflex的性能 +

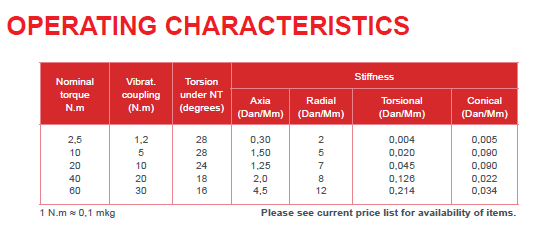

功能特点

Elastic coupling Miniflex的指标 +

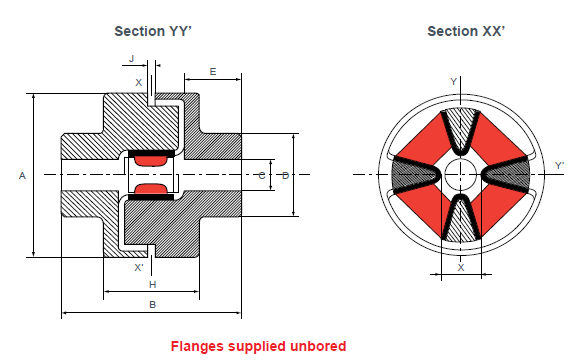

尺寸

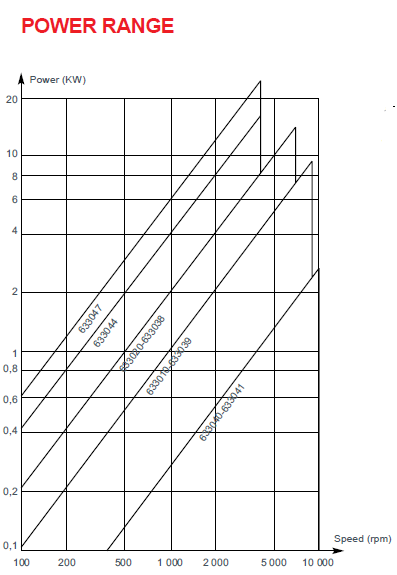

Elastic coupling Miniflex(图1)

	额定扭矩 N.m	最大扭矩 N.m	最大转速 rpm	最大孔径 mm	A mm	B mm	D mm	E mm	产品型号	H mm	J mm	X mm	重量 kg
铝制法兰	2.5 10 20	5 20 40	10000 9000 7000	14 19 28	45 58 80	41 61 88	28 36 48	14 20 30	633040 633010 633020	21 31 40	2 2 4	14 16 28	0.10 0.26 0.68
铸铁法兰	2.5 10 20 40 60	5 20 40 80 120	10000 90000 70000 40000 40000	14 28 42 55 55	45 58 84 118 118	41 61 88 116 120	28 42 63 82 82	14 20 30 40 40	633041 633039 633038 633044 633047	21 31 40 51 55	2 2 4 6 10	14 16 28 38 38	0.25 0.6 1.8 4.5 4.5

ASSEMBLY

The coupling is assembled and disassembled axially which entails moving one of the machines. This

procedure is not difficult and can be done quickly, as at least one of the machines being coupled is

not heavy.

Method :

fit an opposing pair of armatures of the flexible element half-way onto the drive segments of one flange;
position the second flange;
push the two flanges together to engage the armatures of the flexible element;
release.

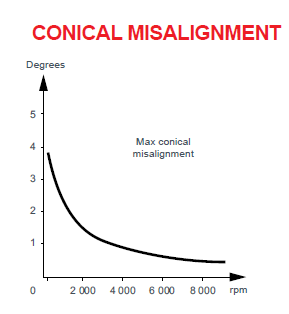

弹性联轴器-Miniflex(图2)

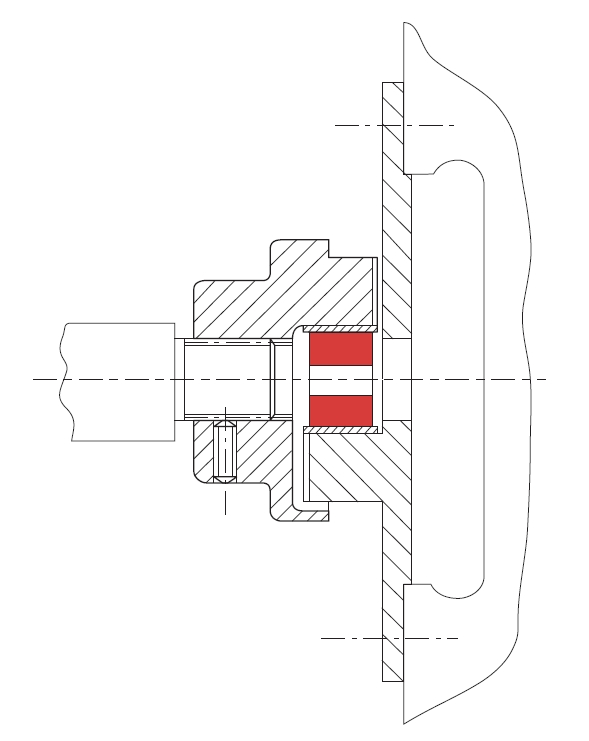

Example : electric motor/pump coupling mounted on fly wheel and grooved shaft.
