Elastic coupling Cardaflex

Elastic coupling Cardaflex

Elastic coupling Cardaflex

Elastic coupling Cardaflex

Elastic coupling Cardaflex

Elastic coupling Cardaflex的概况 -

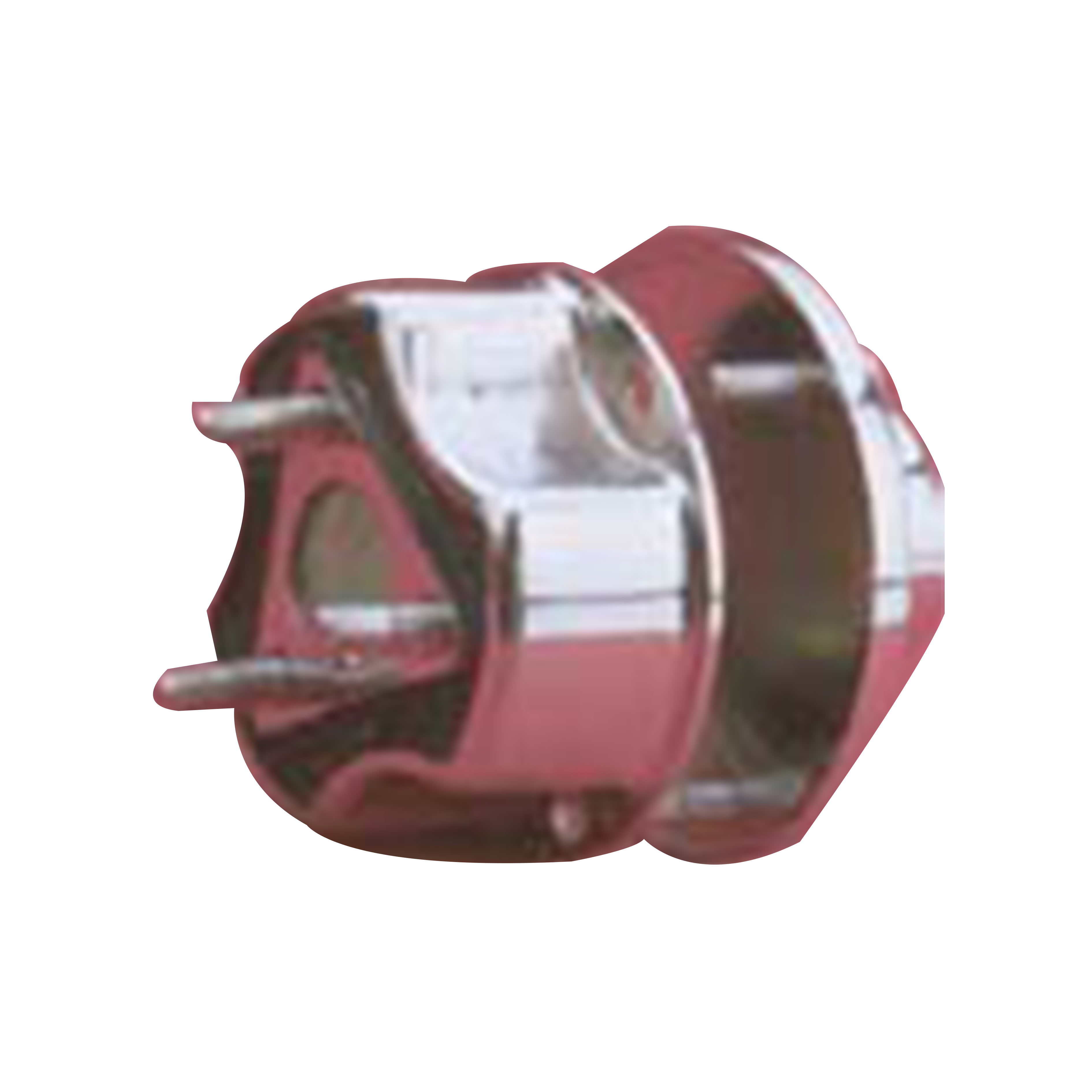

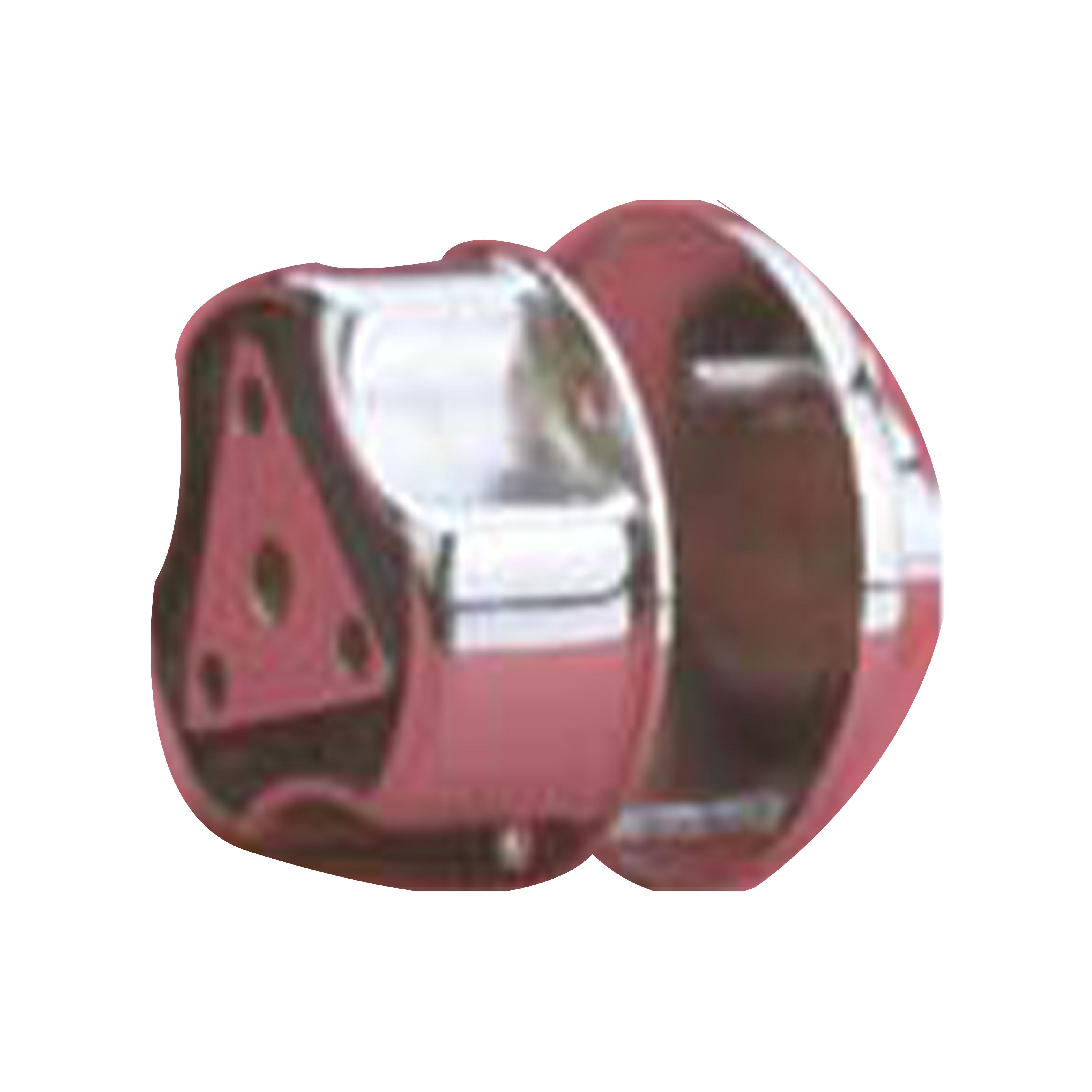

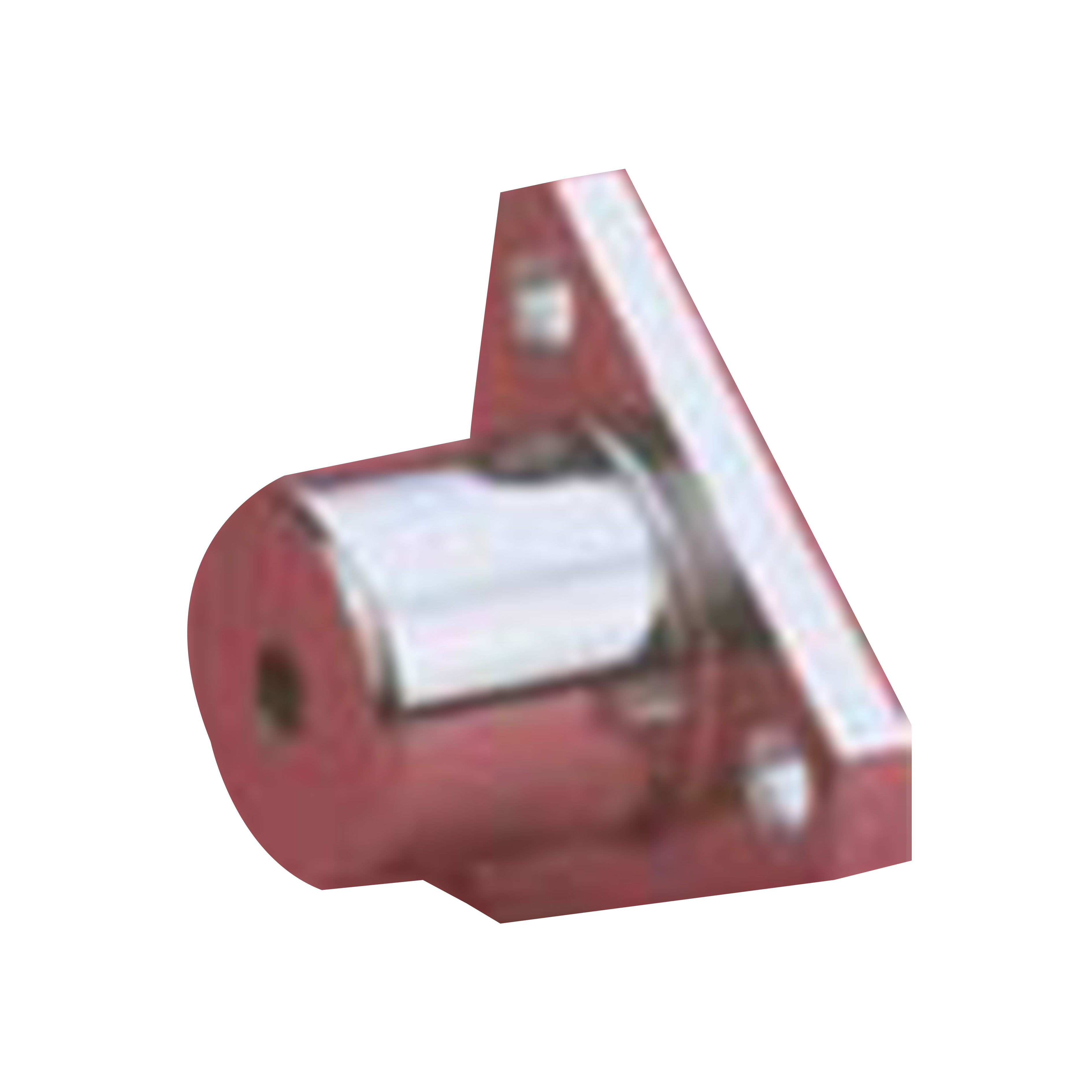

There are two variations of the CARDAFLEX coupling : hollow hub and solid hub :

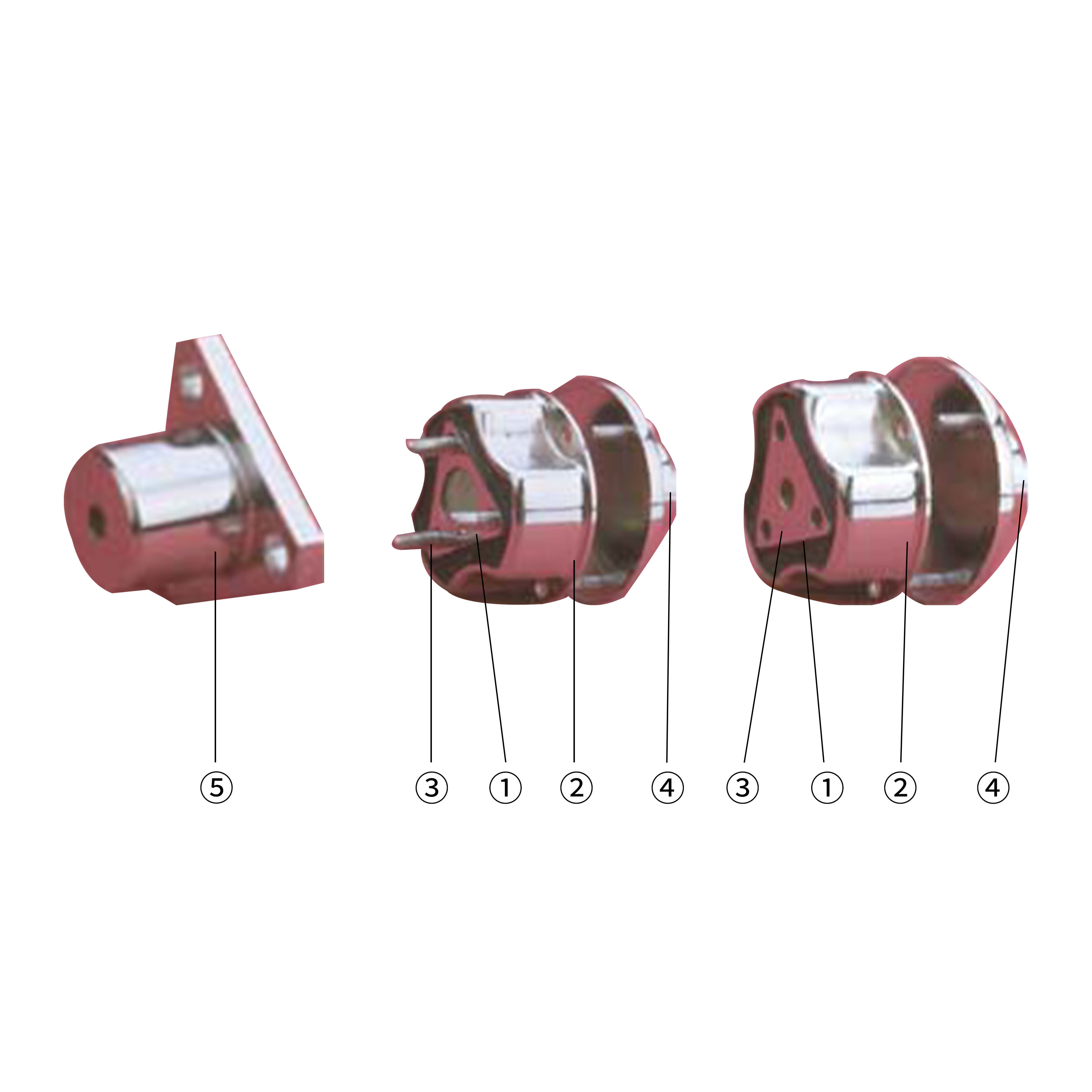

➤ Flexible element
1. Formed of solid natural rubber.
2. External steel surround, bonded to the rubber.
3. Triangular hub: a hollow hub bonded to the rubber and attached to the flange , or a solid hub which accommodates a grooved or keyed shaft.
➤ Steel flanges
4. round.
5. triangular.
Elastic coupling Cardaflex的优势 +
The CARDAFLEX coupling is designed with the following features :

safe in use;

fairly low conical stiffness;

compact shape;

Good performance at high speeds.

Advantages

Especially in the case of the CARDAFLEX solid hub coupling, the space occupied by the unit is

much reduced.

The outer surround of the flexible element can be centred directly onto the flywheel of one of the

machines to be coupled.

Elastic coupling Cardaflex的性能 +

Elastic coupling Cardaflex的指标 +

尺寸

弹性联轴器-Cardaflex(图1)

弹性联轴器-Cardaflex(图2)

空心轮毂

额定扭矩 N.m	最大扭矩 N.m	最大速速 rpm	孔径C1 mm		孔径C2 mm		A mm	B mm	D1 mm	D2 mm	E1 mm	E2 mm	产品型号	E3 mm	F mm	G mm	J mm	K mm	L mm	M mm	重量 kg
额定扭矩 N.m	最大扭矩 N.m	最大速速 rpm	min	max	min	max	A mm	B mm	D1 mm	D2 mm	E1 mm	E2 mm	产品型号	E3 mm	F mm	G mm	J mm	K mm	L mm	M mm	重量 kg
50	100	6500	7	19	7	28	105	100	34	45	33	30	622310	28	40	86	6	8	52	30	1.6
80	160	6000	9	20	9	30	120	125	32	50	44	40	622311	35	45	100	6	8	52	30	2.3
120	240	5500	9	25	9	36	130	140	40	55	49	45	622312	35	50	108	8	10	64	36	2.8
160	320	5500	9	32	9	42	155	155	49	60	55	50	622315	43	55	130	10	12	76	42	4.5
520	1040	4500	11	42	11	56	205	203	67	80	71	65	622320	57	73	175	12	16	100	56	10.7

1 N.m ≈ 0.1 mkg

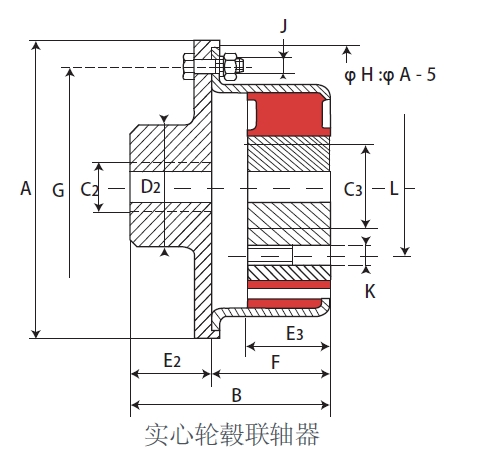

实心轮毂

额定扭矩 N.m	最大扭矩 N.m	最大速速 rpm	孔径C2 mm		孔径C3 mm		A mm	B mm	D2 mm	E2 mm	E3 mm	产品型号	F mm	G mm	J mm	K mm	L mm	重量 kg
额定扭矩 N.m	最大扭矩 N.m	最大速速 rpm	min	max	min	max	A mm	B mm	D2 mm	E2 mm	E3 mm	产品型号	F mm	G mm	J mm	K mm	L mm	重量 kg
30	60	7000	7	24	10	21	85	60	40	28	26	622401	32	68	6	7	42	0.4
50	100	6500	7	28	16	28	105	70	45	30	28	622402	40	86	6	8	52	0.7
80	160	6000	9	30	17	28	120	85	50	40	35	622403	45	100	6	8	52	1
120	240	5500	9	36	18	36	130	95	55	45	35	622404	50	108	8	10	64	1.2
160	320	5500	9	42	22	42	155	105	60	50	43	622405	55	130	10	12	76	2.3
520	1040	4500	11	56	30	56	205	138	80	65	57	622406	73	175	12	16	100	5

1 N.m ≈ 0.1 mkg

ASSEMBLY

Method :

mount the round flange onto the shaft of one machine.
Mount : - the triangular flange onto the other shaft (hollow hub coupling);

- the flexible element onto the other shaft (solid hub coupling).

Attach the flexible element to the round flange.

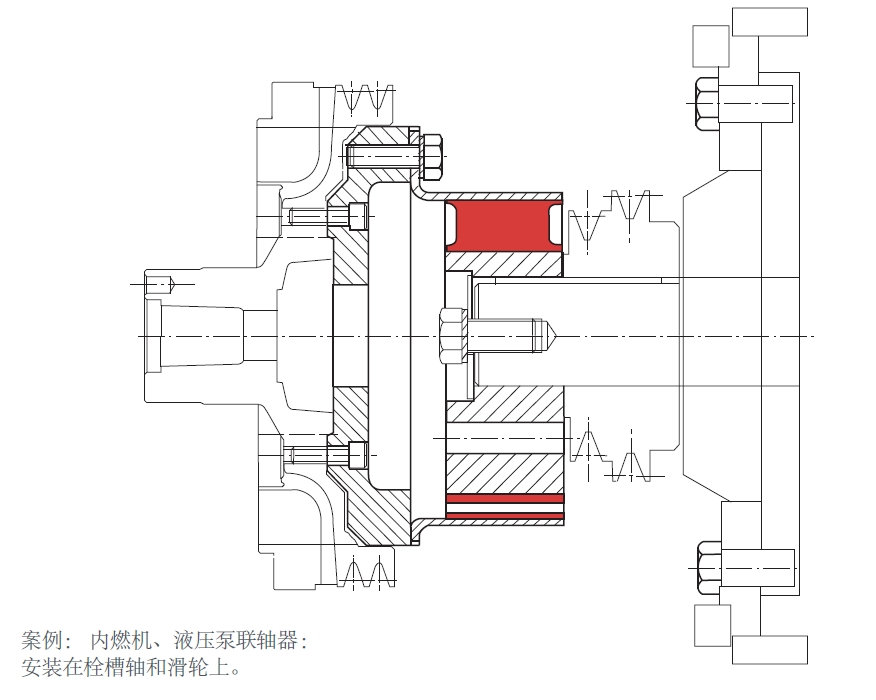

弹性联轴器-Cardaflex(图3)

电话: +86-512-67229265

邮箱: info@thermo-test.com
