Rubber vibration isolator - 22000 series

Rubber vibration isolator - 22000 series的概况 -

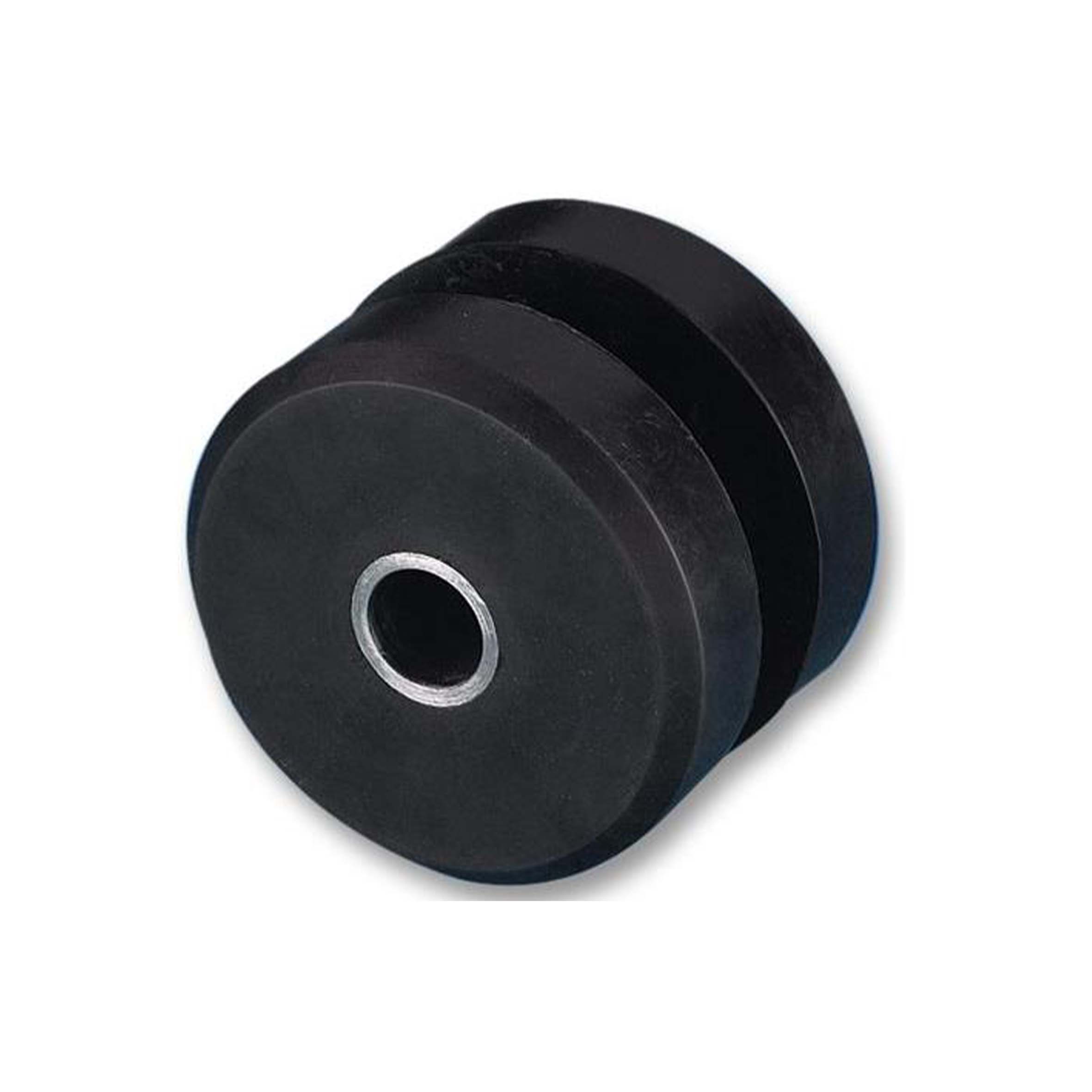

The 22000 mount is made of two parts of elastomer bonded to a central tube.

Interior reinforced : cylindrical tube.

Elastomer : chloroprene. Range of five different stiffnesses.

OPERATION

The design of the 22000 mount gives the following basic characteristics :

elastomer element resistant to oils, supporting axial and radial loadings;

axial to radial stiffness of 1:1;

absorb vibration and reduce noise in all directions.

APPLICATION

22000 mounts can be used in static or mobiles applications, such as : pumps, compressors, generators, electronic equipement, HVAC equipement, engines with internal combustion, transmissions, plant cabs, radiators,etc.
Rubber vibration isolator - 22000 series的优势 +

➤Good isolation against structural noises.
➤ Chloroprene resistant to oils.

➤ Simple ans economical.

➤ Simple to fix.

➤ Five size for a load capacity under axial pressure from 18 to 954 daN and under radial pressure

until 443 daN

➤ Anti-rebound effect when it is assembled with a washer.

Rubber vibration isolator - 22000 series的性能 +

➤ Oil-resistant

➤ Axial and radial stiffness ratio of 1:1

➤ It has shock absorption and noise reduction functions in all directions

Technical Features:

➤ 5 different sizes and specifications

➤ 25 different load-bearing models

➤ Small load capacity: 18 kg

➤ Large load capacity: 2000 kg

➤ Natural frequency: 8 - 18 Hz

➤ Equal stiffness in all directions

➤ Equipped with a failure prevention function, suitable for harsh working conditions

➤ Rubber compound: neoprene, natural rubber

➤ Operating temperature: -40℃ ~ 82℃

Operational characteristics:

The maximum load depends on the support plates (E1 and E2) of different thicknesses and the amount of compression during installation.

Paulstra Product model	Barry Controls* Product model	Support structure E1 (load per base)				Support structure E2 (load per base)				Color tagging
		Axial (daN)	Radial (daN)	Fo (Hz)	E1 (mm)	Axial (daN)	Radial (daN)	Fo (Hz)	E2 (mm)
		Axial (daN)	Radial (daN)	Fo (Hz)	E1 (mm)	Axial (daN)	Radial (daN)	Fo (Hz)	E2 (mm)
530903 11	22001-11	18	9			18	9			红 & 白
530903 12	22001-12	40	13			40	13			黄& 白
530903 13	22001-13	63	18	15	9,5	63	18	15	9,5	绿 &白
530903 14	22001-14	113	22			113	22			蓝 & 白
530903 15	22001-15	136	27			136	27			紫 & 白
530903 21	22002-11	59	22			27	18			红 & 白
530903 22	22002-12	79	29			54	36			黄& 白
530903 23	22002-13	109	40	12	14	72	56	15	12,5	绿 &白
530903 24	22002-14	172	75			118	81			蓝 & 白
530903 25	22002-15	286	127			172	127			紫 & 白
530903 31	22003-11	95	40			40	31			红 & 白
530903 32	22003-12	159	63			68	47			黄& 白
530903 33	22003-13	222	102	11	22	102	72	15	19	绿 &白
530903 34	22003-14	390	175			147	111			蓝 & 白
530903 35	22003-15	604	313			227	163			紫 & 白
530903 41	22004-11	122	61			68	50			红 & 白
530903 42	22004-12	231	104			136	100			黄& 白
530903 43	22004-13	350	156	10	28,5	181	136	15	25,5	绿 &白
530903 44	22004-14	531	268			227	181			蓝 & 白
530903 45	22004-15	954	443			272	263			紫 & 白
530903 51	22005-11	518	109			136	68			红 & 白
530903 52	22005-12	877	154			227	100			黄& 白
530903 53	22005-13	1 172	277	10	32	318	136	15	25,5	绿 &白
530903 54	22005-14	1 609	404			409	213			蓝 & 白
530903 55	22005-15	2 072	640			545	300			紫 & 白

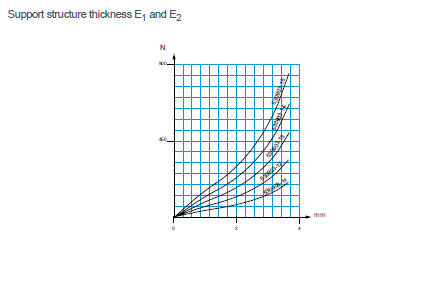

Rubber vibration isolator - 22000 series(图1)

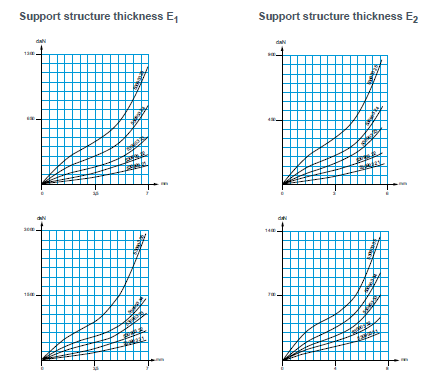

Rubber vibration isolator - 22000 series(图2)

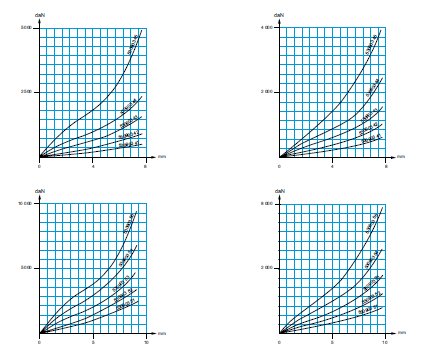

Rubber vibration isolator - 22000 series(图3)

Rubber vibration isolator - 22000 series的指标 +

尺寸：

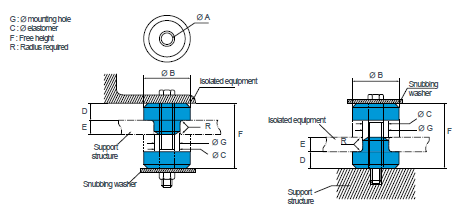

Rubber vibration isolator - 22000 series(图1)

E: The thickness of the supporting structure is classified into two types, E1 and E2, based on the required natural frequency and load (see the table below)

Paulstra Product Model	Barry Controls* Product Model	cpA (mm)	cpB (mm)	cpC (mm)	D (mm)	F (mm)	Mounting hole		Weight (g)
							cpG (mm)	R (mm)
							cpG (mm)	R (mm)
530903 11 至 15	22001-11至15	10,4	33,2	20,1	12,3	31,7	19	1	43
530903 21 至 25	22002-11至15	13,5	47,7	33	19,8	49,2	31,7	1,5	142
530903 31 至 35	22003-11至15	16,7	64,8	40,1	22,8	61,7	38,1	2,3	313
530903 41 至 45	22004-11至15	23,8	88,9	58,4	25,4	73,1	57,1	3	670
530903 51 至 55	22005-11 至15	27	123,9	64,8	31,7	85,8	63,5	3	1306

橡胶减震器-22000 系列(图2)

We recommend using shims to ensure good performance under varying static and dynamic loads, and to adapt well to the suspension system in impact environments.

Paulstra* Product Model	Gasket*
	cpA (mm)	cpB (mm)	E (mm)	Weight (g)


530903 11 至 15	39,6	10,3	2,2	24
530903 21 至 25	54,1	13,5	3,4	54
530903 31 至 35	71,3	16,7	4,7	140
530903 41 至 45	98,5	23,8	6,3	368
530903 51至 55	133,3	27,0	9,5	991
