Rubber vibration isolator -STABIFLEX

Rubber vibration isolator -STABIFLEX

Rubber vibration isolator -STABIFLEX的概况 -
The STABIFLEX mount comprises a conical rubber section bonded between inner and outer metal

parts.

Steal Centre axis with threaded hole.

Aluminium Square (four holes) or diamond base (two holes) with clearance hole.

Bonded natural rubber, anti-slip bead.

Cup to protect the rubber and distribute the load.

Recommendations

In order not to affect the performances of the mounting system, all external connections must be flexible.

STABIFLEX mounts must be fitted so that the vibration input is in the axial direction.

Application Scenario：

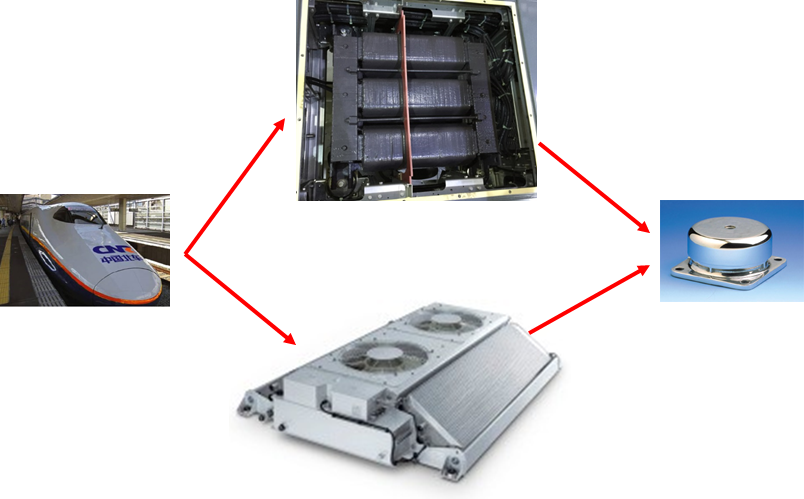

(1) Market: Rail transit

Application: transformer vibration isolation
Vibration isolation for air conditioning units

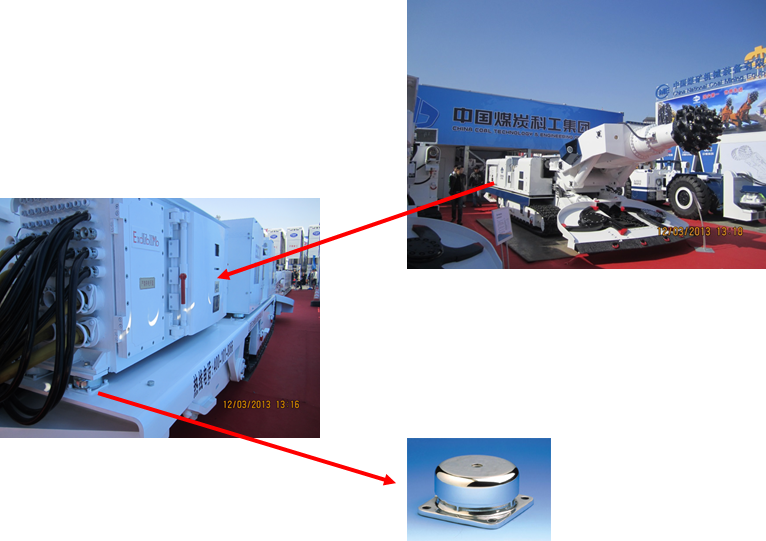

(2) Market: mining machinery

Application: Vibration isolation for electric control box
Rubber vibration isolator -STABIFLEX的优势 +

➤The machine may be placed with its mounts directly on the ground.
➤Speed of fixing.

➤Easy movement of suspended machinery.

➤Rubber protected against harmful liquids.

➤Extensive range : 3 hardnesses of rubber for five existing types, allowing the mount to be optimised as a function of the load and exciting frequency.

➤May be used with an anti-rebound washer.

Rubber vibration isolator -STABIFLEX的性能 +

Technical Features:

➤ 5 different sizes and specifications

➤ 14 different load-bearing models

➤ Small load capacity: 10 kg

➤ Large load capacity: 1800 kg

➤ Natural frequency 6-11 Hz

➤ Radial-to-vertical stiffness ratio (2~3) : 1

➤ Rubber compound: natural rubber

➤ Operating temperature: -40℃ ~ 82℃

Operational characteristics:

The design of this product has the following basic features:

➤ Radial stiffness is 2-3 times greater than axial stiffness

➤ Rubber can simultaneously withstand both compressive and shear forces

➤ It has a good cushioning effect on shock and overload

➤ Anti-slip (can be placed directly on the floor)

Model	Standard static load (daN)	Deformation amount (mm)	Hardness (Shore A)
Model	Standard static load (daN)	Deformation amount (mm)	Hardness (Shore A)
530603	10 - 42	3,5	45
530603	15 - 60	3	60
530613	20 - 93	3,5	45
530603	30 - 125	4	75
530613	40 - 165	3,5	60
530622	50 - 210	5	45
530613	65 - 260	3	75

Model	Standard static load (daN)	Deformation amount (mm)	Hardness (Shore A)
Model	Standard static load (daN)	Deformation amount (mm)	Hardness (Shore A)
530622	65 - 275	4,5	60
530622	95 - 380	3,5	75
530642	110 - 450	8	45
530642	175 - 700	8	60
530652	250 - 1000	8	45
530652	325 - 1300	8	60
530652	450 - 1800	8	75

Rubber vibration isolator -STABIFLEX(图1)
