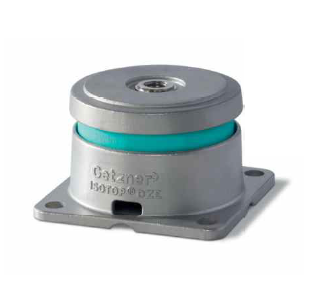

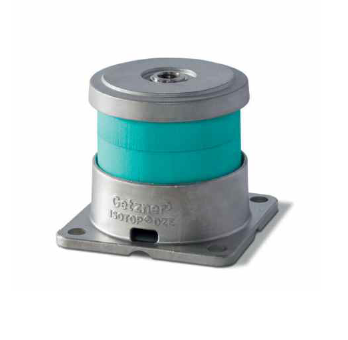

DZE damping vibration isolator

DZE damping vibration isolator的概况 -

DZE damping vibration isolator is a stainless steel tensile isolation pad composed of multiple parts, using Sylodyn and Slyomer vibration-isolating materials. This component can be adjusted according to actual needs based on load and interference frequency, with a resonance frequency of up to 7Hz or 11Hz (DZE Mini). This type of component has a wide range of applications, such as compressors, pumps, cooling towers, fast running rotary engines, central heating stations, rooftop mounted equipment, backup generators, or mobile applications. Tensile isolation pads can achieve various types of vibration isolation.
DZE damping vibration isolator的优势 +

➤ Different combinations of springs and vibration isolators make it perfectly suitable for various target devices
➤ Using pre installed components for easy installation

➤ No risk of rupture, especially suitable for narrow and long devices as well as mobile applications

➤ Long service life

➤ Low natural frequency

➤ Low structural height

➤ Good corrosion resistance
DZE damping vibration isolator的性能 +

➤ The stretching and compression element comes with two different vibration-isolating materials: Sylodyn and Sylomer

➤ Machine elastic support structure

➤ Vibration isolation

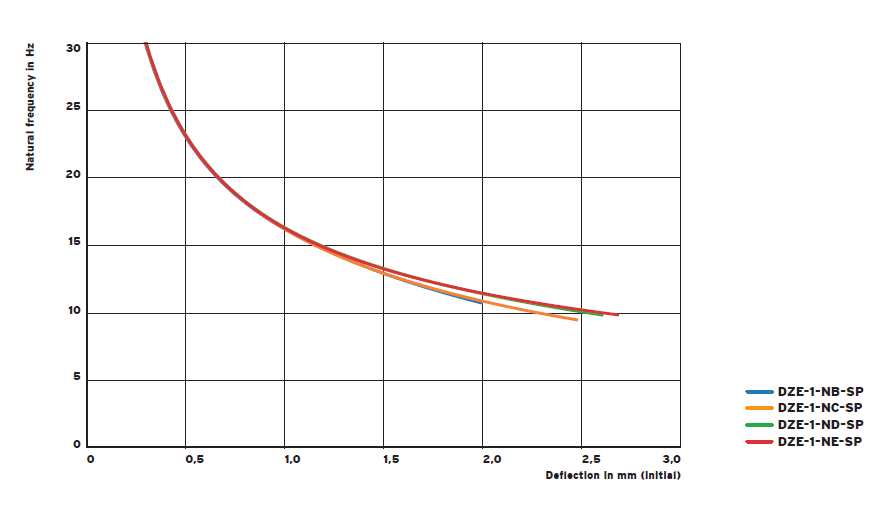

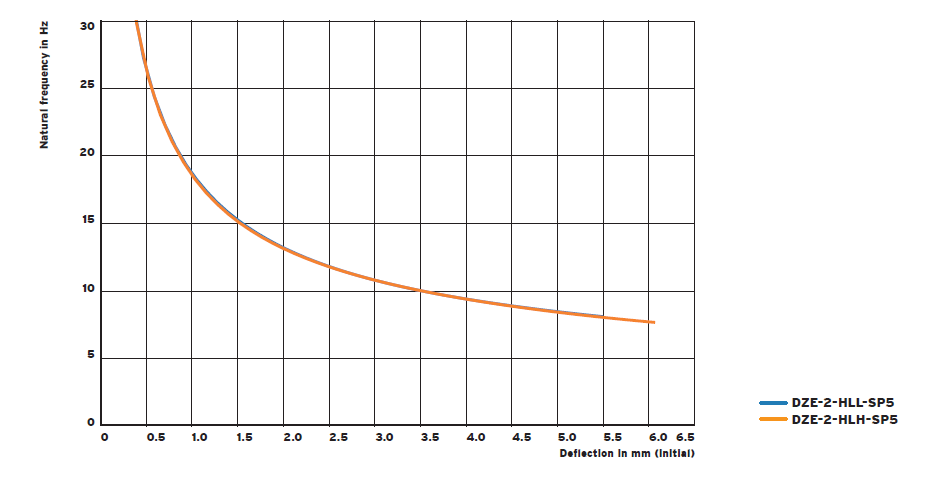

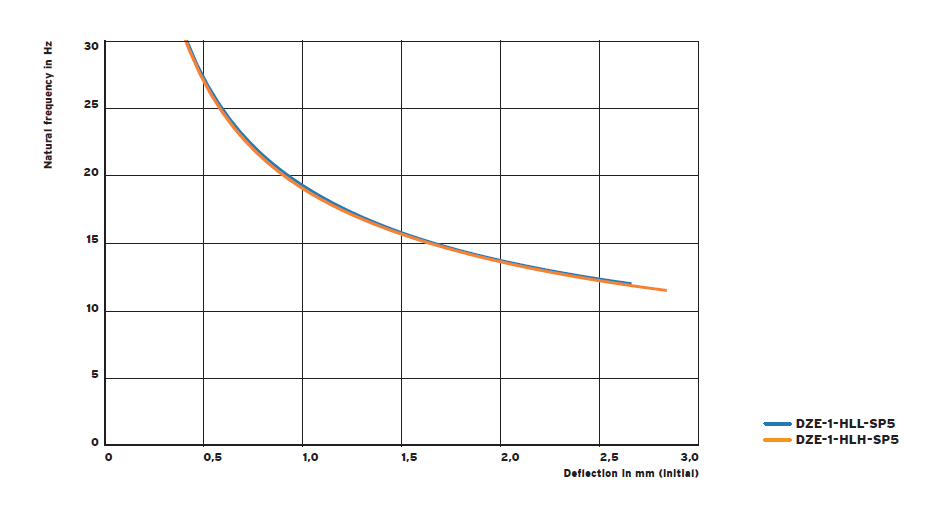

➤ Resonance frequency can reach 7Hz or 11Hz (DZE Mini)

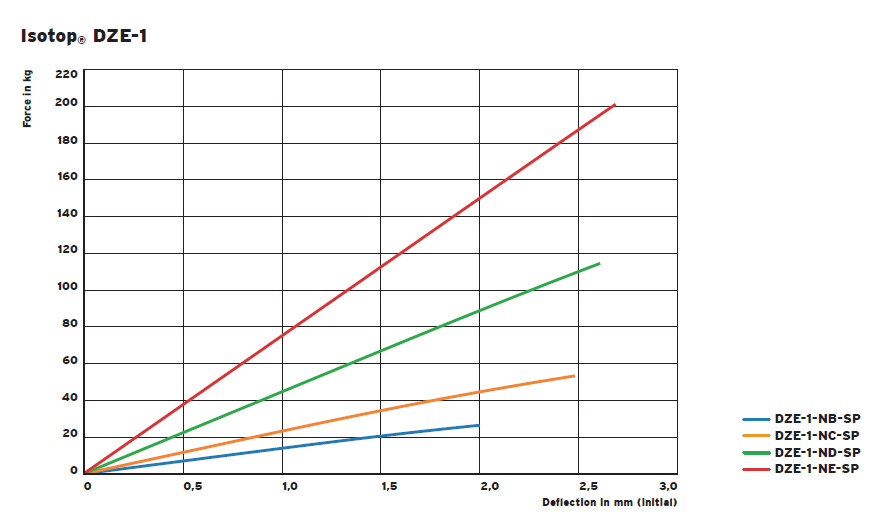

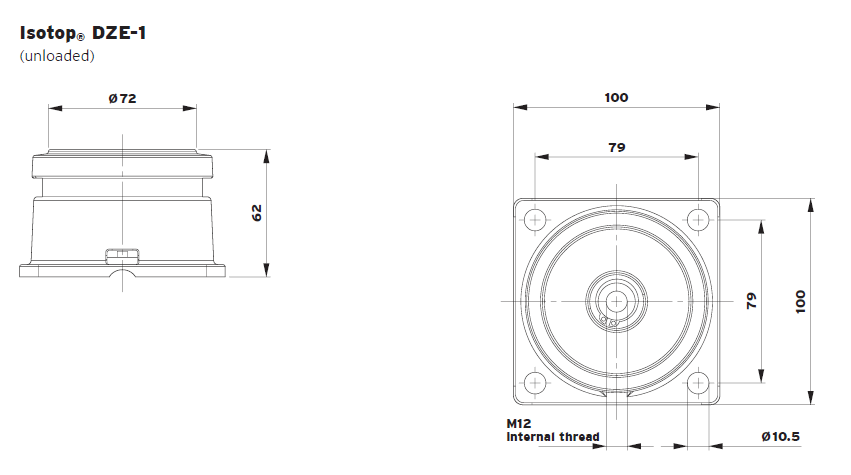

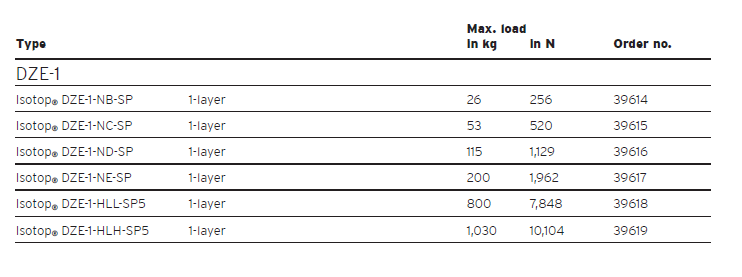

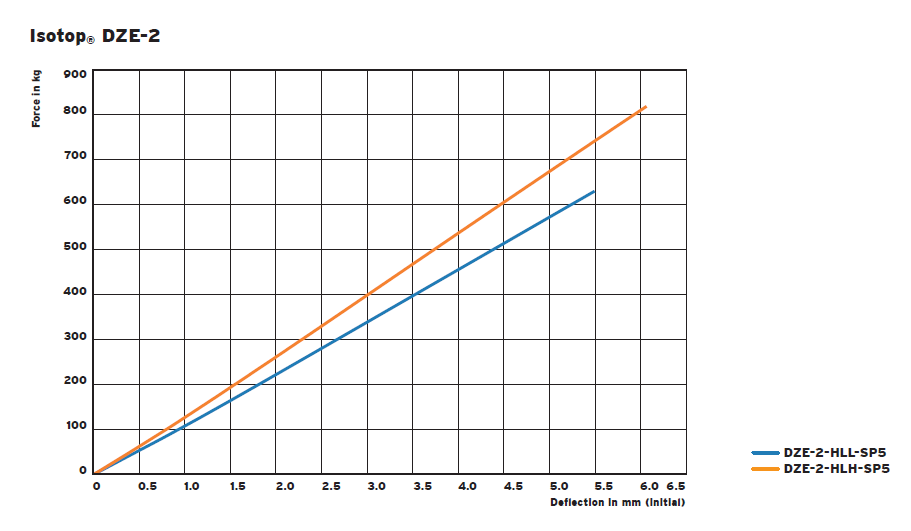

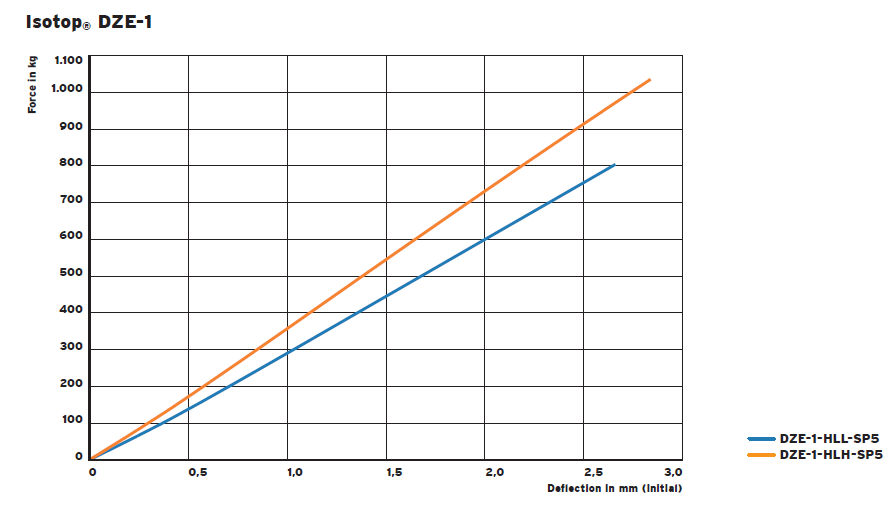

DZE damping vibration isolator的指标 +
