Elastic coupling - Juboflex

Elastic coupling - Juboflex

Elastic coupling - Juboflex的概况 -

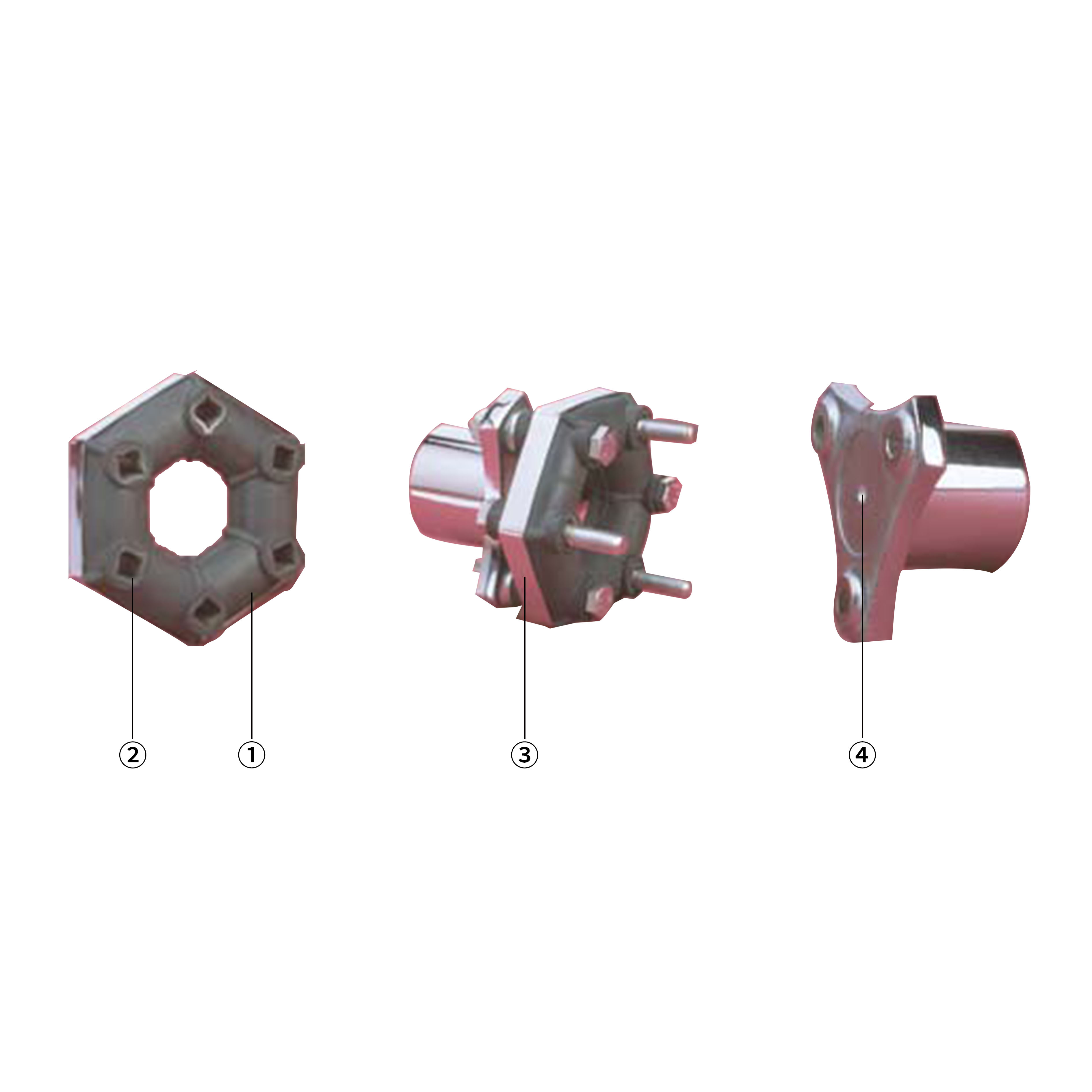

Flexible element
①Precompressed natural rubber.

② Bonded metal spacers.

③Precompression band (to be removed after installation).

Flange
④ Die-cast steel specially bored to fit the separate hub.
Elastic coupling - Juboflex的优势 +
In addition to the characteristics described above, the separate hub used in conjunction with the

JUBOFLEX coupling provides the advantage :
Ready to assemble without machining the flanges.

Advantages

Reduced size.

Simplified axial positionning.

Easy to assemble and disassemble.

Reduction of costs by simplifiying the machining required for the shafts and flanges.

Recommendation

In use, precompression is achieved by the fixing bolts and the JUBOFLEX coupling operates without the precompression band round the flexible element.
Elastic coupling - Juboflex的性能 +

Elastic coupling - Juboflex的指标 +

尺寸

弹性联轴器-Juboflex(图1)

弹性联轴器-Juboflex(图2)

额定扭矩 N.m	最大扭矩 N.m	最大转速 rpm	孔径C		A mm	B mm	D mm	E mm	产品型号	F mm	G mm	H mm	J mm	K mm	L mm	M mm	X mm	重量 kg
额定扭矩 N.m	最大扭矩 N.m	最大转速 rpm	min	max	A mm	B mm	D mm	E mm	产品型号	F mm	G mm	H mm	J mm	K mm	L mm	M mm	X mm	重量 kg
40	120	6000		30	91	128	42	47	632027	28	65	50	8	87	11	50	23	2
90	270	5000		40	117	172	56	66	632023	32	85	60	10	113	14	70	35	3
160	480	4500		48	142	196	68	70	632017	46	100	80	12	135	17	75	40	5
250	750	3500		60	181	247	90	93	632029	51	132	93	14	172	21	98	63.	12
350	1050	3000		70	202	284	105	109	632031	54	150	96	18	196	21	115	68	18
500	1500	2800		75	232	322	115	124	632043	62	170	108	20	225	23	130	75	25
700	2100	2400		80	263	346	122	133	632025	68	190	116	20	246	24	139	82	32
1200	3600	2400	60	100	180	486	156	172	632020	78	210	222	20	-	52	204	110	57

1 N.m ≈ 0.1 mkg
* Diameter of passage in flexible element under the nominal torque.
