Metal wire vibration isolators - V43/V44/V45/V46

Metal wire vibration isolators - V43/V44/V45/V46 的概况 -

The natural frequency of this series is 15-30 Hz, which can be used for elastic support of machine tools in harsh environments; Resistant to oil stains, with a wide operating temperature range and excellent fatigue resistance, its lifespan is equivalent to that of the machine using this component.
Metal wire vibration isolators - V43/V44/V45/V46 的优势 +

The standard components V43, V44, V45, and V46 are composed of a cast steel base and a stainless steel elastic coil.

The H version also includes an upper cover and adjustable height bolts. It can also be equipped with a control chassis.

The W version differs from the standard version in its thicker metal cushion with better elasticity.

The natural frequency of this series is 15-30 Hz, which can be used for elastic support of machine tools in harsh environments; Resistant to oil stains, with a wide operating temperature range and excellent fatigue resistance, its lifespan is equivalent to that of the machine using this component.

The W version of the metal cushion is slightly thicker and can be used for elastic fixation and improving vibration isolation levels in molding equipment such as compression, shearing, and bending machinery.
Metal wire vibration isolators - V43/V44/V45/V46 的性能 +

Natural frequency:
V4* = 22 - 30 Hz

V4*W = 15 - 22 Hz

Reference PAULSTRA elastic system: Nivofix Minifi

Size：

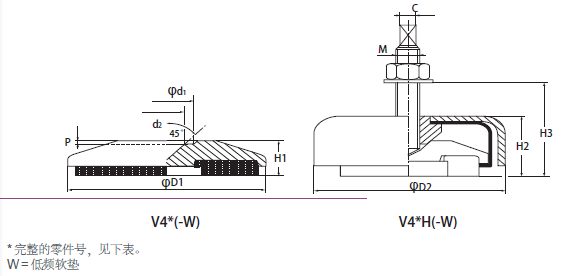

金属丝减震器-V43/V44/V45/V46(图1)

Model	Static load (daN)	Maximum power in compression direction (daN)	Natural frequency(Hz)	ФD1 (mm)	H1 (mm)	ФD2 (mm)	H2 (mm)	M	C (mm)	H3maximum (mm)	Фd1 (mm)	Фd2 (mm)	P (mm)


V43	50-350	750	22-30	81	20	-	-	-	-	-	17	12	3
V43-H			22-30	-	-	96	35	M12	8	115	-	-	-
V43-W			15-22	81	31	-	-	-	-	-	17	12	3
V43-WH			15-22	-	-	96	46	M12	8	125	-	-	-
V44	200- 1300	4000	22-30	81	20	-	-	-	-	-	17	12	3
V44-H			22-30	-	-	96	35	M16	10	135	-	-	-
V44-W			15-22	81	31	-	-	-	-	-	17	12	3
V44-WH			15-22	-	-	96	46	M16	10	147	-	-	-
V45	700-2700	8000	22-30	128	26	-	-	-	-	-	33	18	3
V45-H			22-30	-	-	152	45	M20	13	155	-	-	-
V45-W			15-22	128	36,5	-	-	-	-	-	33	18	3
V45-WH			15-22	-	-	152	56	M20	13	163	-	-	-
V46	2000-5000	15000	22-30	170	34,5	-	-	-	-	-	44	28	4
V46-H			22-30	-	-	190	60	M24	16	160	-	-	-
V46-W			15-22	170	43,5	-	-	-	-	-	44	28	4
V46-WH			15-22	-	-	190	71	M24	16	170	-	-	-

*The maximum excitation amplitude in resonance state is ± 0.2 mm (suffix W, for low-frequency soft pads: ± 0.4mm)
